PLUS 30mm spacers

Name: PrimaLuceLab PLUS 30mm spacers
Brand: PrimaLuceLab
Price: 55 USD
Rating: 2 (1 reviews)

$ 55.00 incl. VAT plus shipping costs

in stock
ready for shipping in 24 h + lead time

add to cart

Product questions?

advice for Astronomy

This product is available in the following variants:
	Height (mm)	Price
	20	$ 48.90
	30	$ 55.00
	10	$ 33.90

Product description

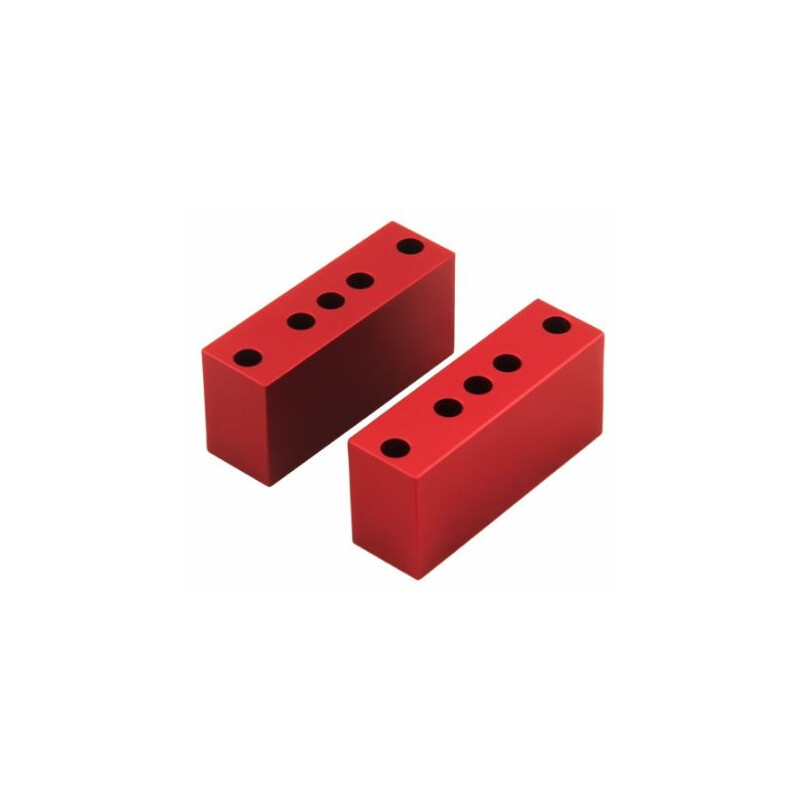

These spacers can be placed between prism rails and tube clamps, for example. They are always useful when, without spacers, the parts of your optical equipment are too close together and can no longer be aligned or operated correctly.

The hole spacing is 20 mm, suitable for Vixen prism rails and PLUS guide scope rings, and 55 mm for Losmandy prism rails.

Four M6 screws are included in the delivery.

Like all the other elements of the PLUS series, these guide rings are made with high mechanical precision (built with CNC machines from aluminum block) and specially designed to enable you to easily install other mechanical elements such as support rings, plates or dovetail clamps.

Specifications

General

Material

Aluminium

Series

PLUS

Type

Mount accessories

Height (mm)

Product safety

Manufacturer: PrimaLuceLab S.p.A., Via Torricelli 9, 33080 Porcia (PN), IT, www.primalucelab.com

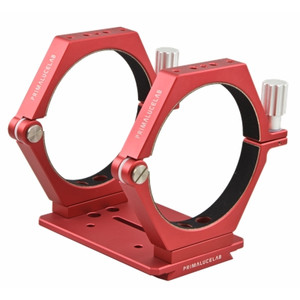

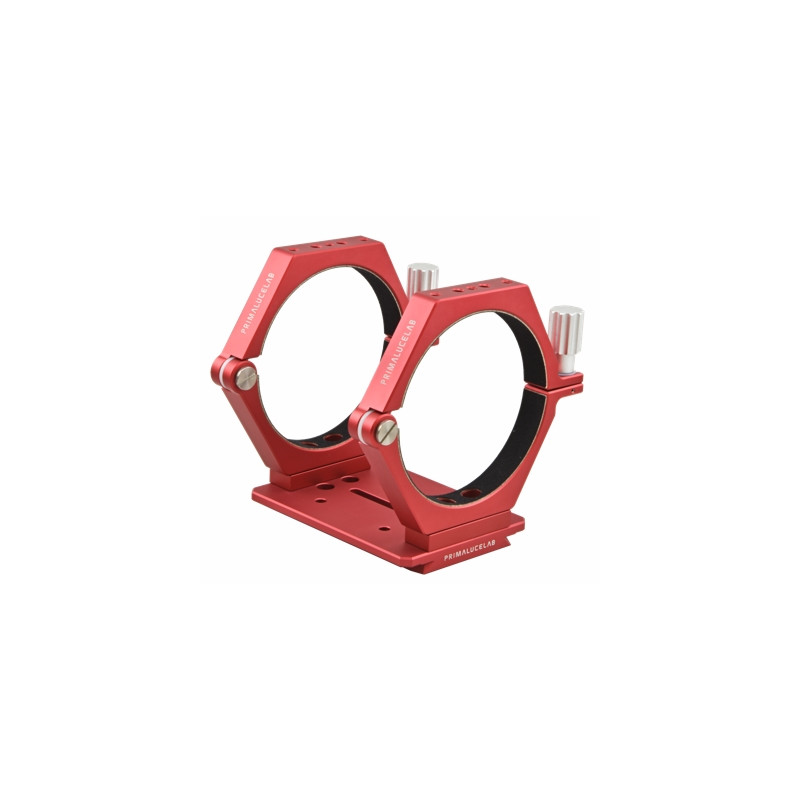

Example of use

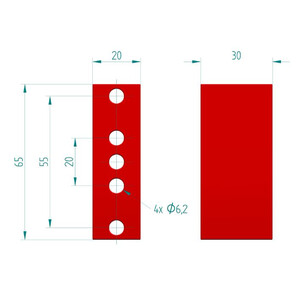

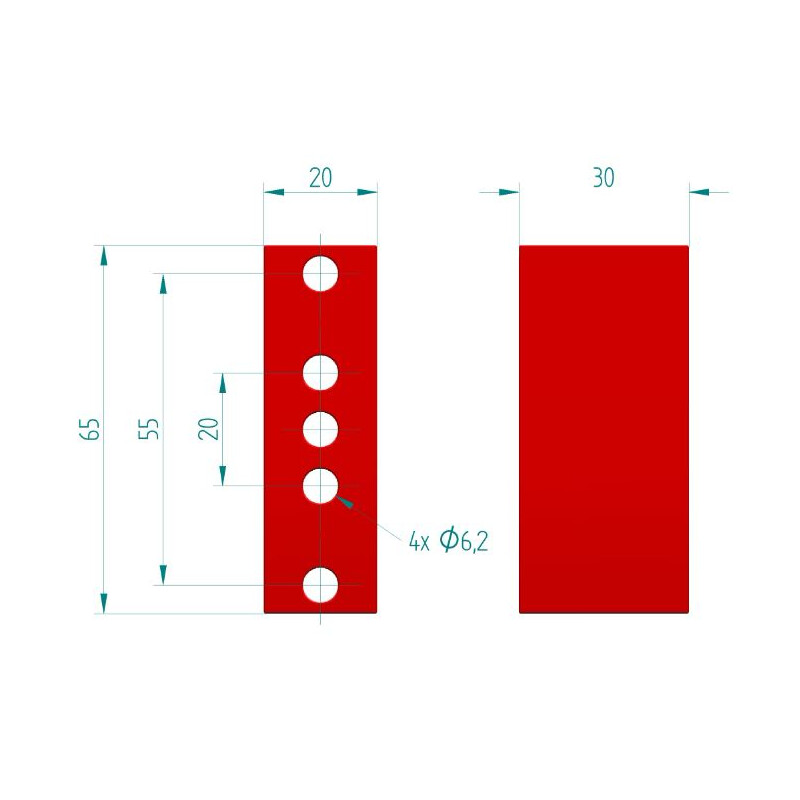

Dimensions

Customer reviews

The spacing is wrong.

Review by E. K. on 27.08.2026 16:23:25

( 2 / 5 )

The page above correctly states that the distance of the two outermost holes is 55mm. However the distance on my Losmandy dovetail, as well as on the tube rings of my Esprit 100 is 52mm. There were no screws included in the box, but it does not matter, since they would have been M6, and the Esprit needs 1/4 inch screws anyway. And the holes on these spacers are also designed for M6 screws, one needs to widen them by 0.15 millimetres to accommodate those Skywatcher screws. All this is my mistake, as I did not check these data beforehand. But if you consider buying these, please be careful. The material is sturdy, so this is a good product, if it fits.
