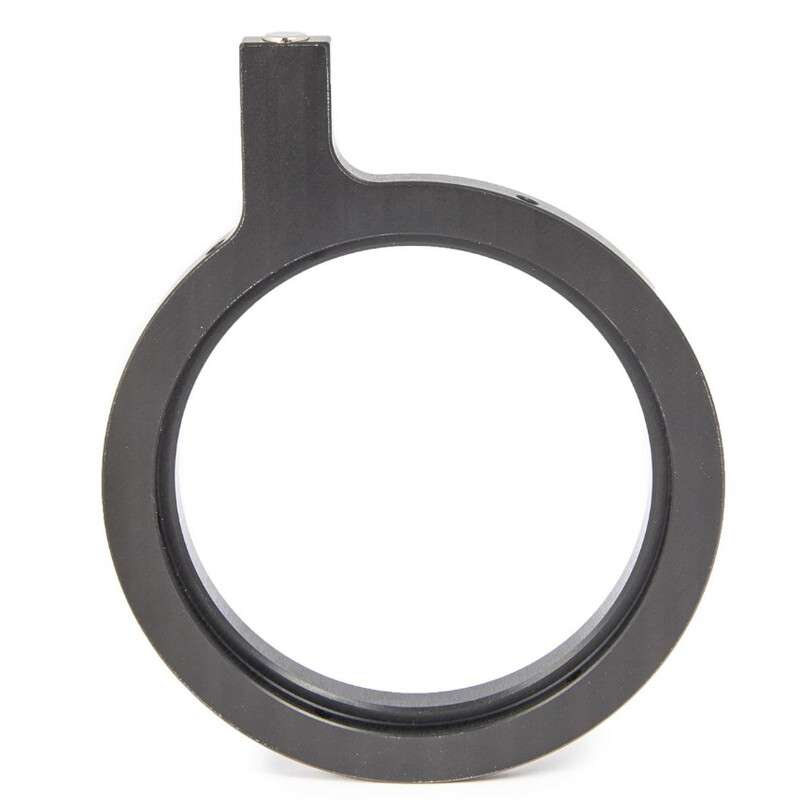

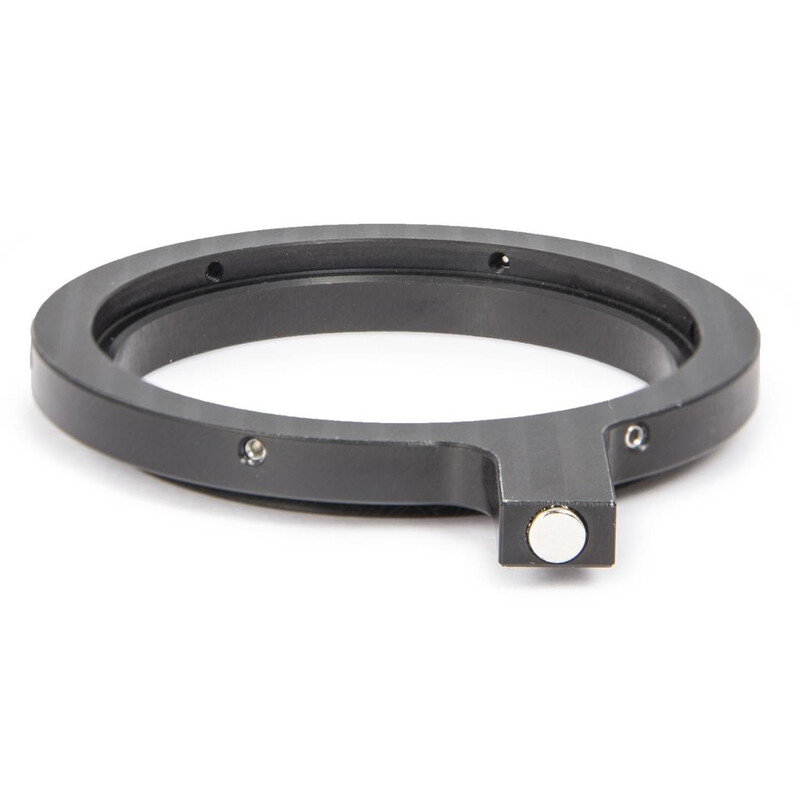

Metal magnet ring for homing sensor of the Steeldrive II - suitable for Baader Diamond Steeltrack® focusers
- If you have equipped your Diamond Steeltrack® with a 2" ClickLock S58 or a thread adapter (T-2, M48, M68), for example, the metal magnet ring is an alternative to the simple, 3D-printed magnet holder included with the Steeldrive II.
- The SteelDrive II motor unit has a contactless (wear-free) homing sensor. The sensor is activated by a magnet that can be attached to the moving part of the focuser. It enables the repeatable positioning of stored positions and also serves as a reference for the mechanical end stop.

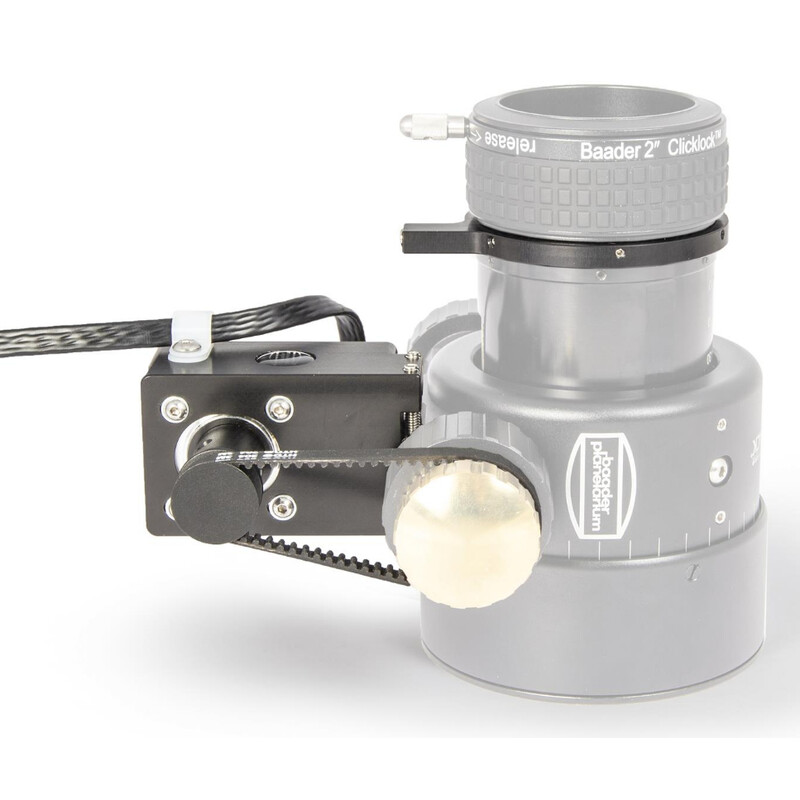

- The metal magnet ring is attached between the eyepiece clamp and the focuser. To mount the metal magnet ring, you must first remove the 2" eyepiece clamp or the thread adapter for T-2, M48, M68 or similar. It must be attached parallel to the Steeldrive II.
