Astronomy > Mounts & accessories > Mounting plates and rails > APM > APM Losmandy level dovetail rail - 330 mm long - flat surface
Product no.: 63012

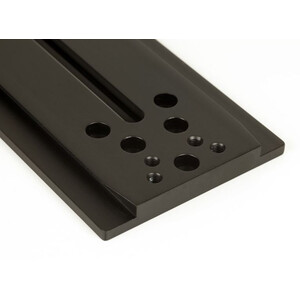

Losmandy level dovetail rail - 330 mm long - flat surface

$ 86.00 incl. VAT plus shipping costs
short-term
ready for shipping in 1-2 weeks + lead time

Product description

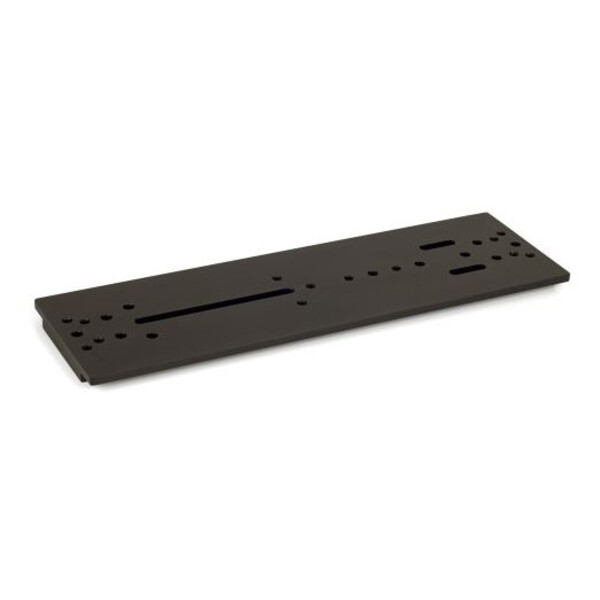

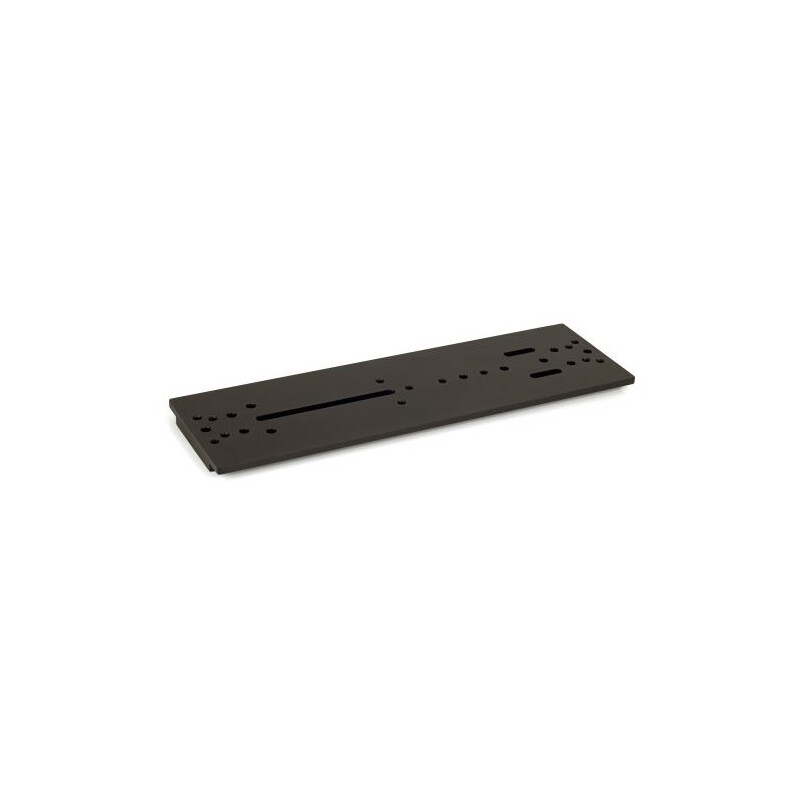

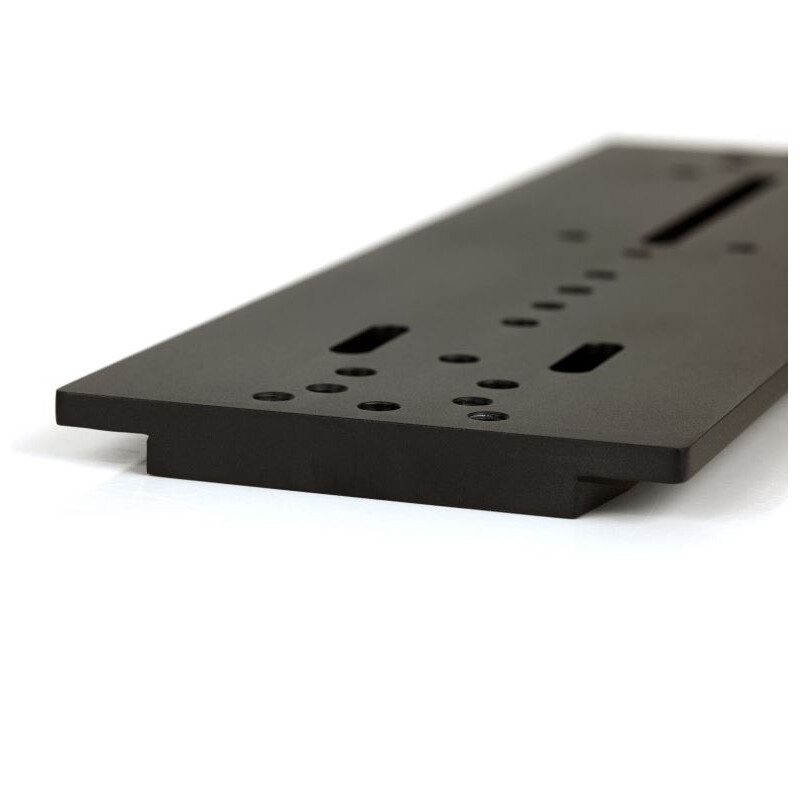

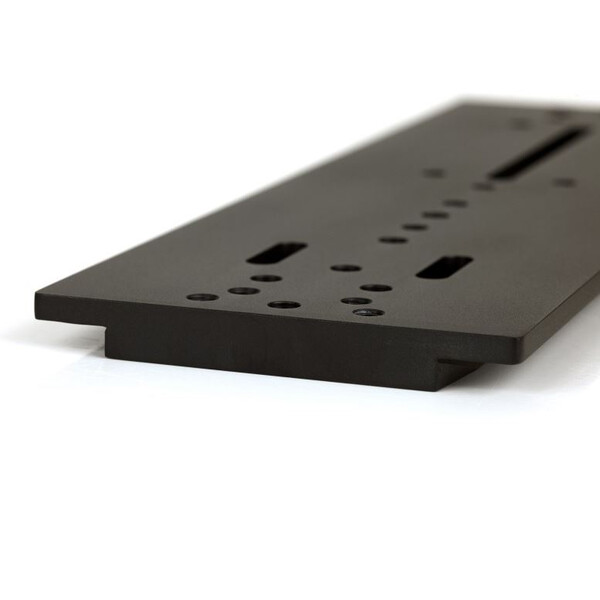

This mounting plate is a high-quality Losmandy-compatible prism rail with a flat mounting surface.

The prism rail is extremely solidly constructed and can easily support heavy telescopes. The holes and auxiliary threads allow for versatile use.

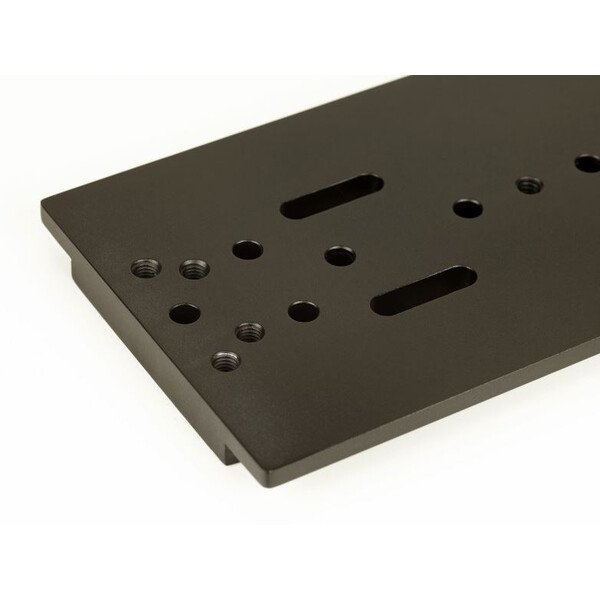

  • Long hole 1: Centre - length 100 mm
  • Long hole 2+3: Distance 19 mm from the centre - Length 25 mm

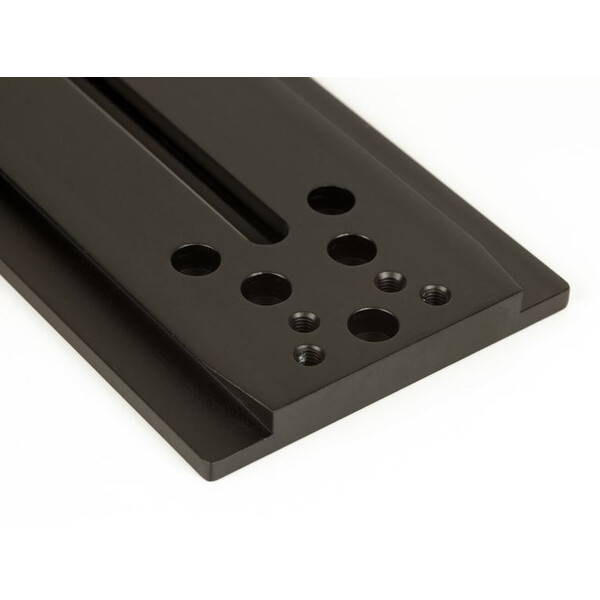

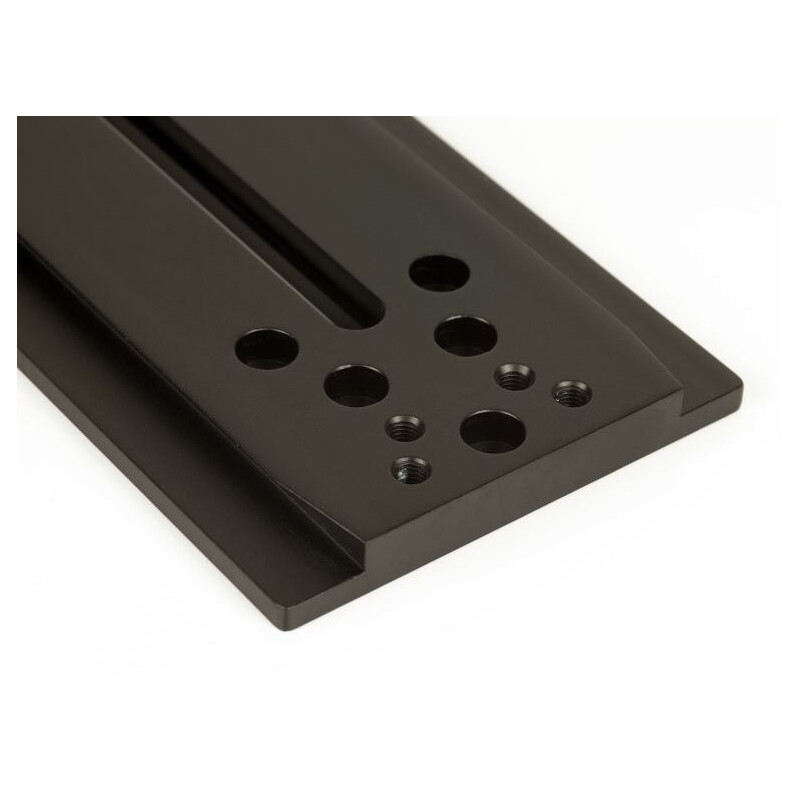

  • Holes: 5x centric, 2 pairs spaced 22.5 mm apart, 1 pair spaced 38 mm apart
  • M6 internal thread: 3x centred, 2 pairs spaced 35 mm apart, 3 pairs spaced 24 mm apart


Specifications

Capacity


Material
Aluminium

General


Length (mm)
330
Height (mm)
12,5
Weight (g)
900
Type of build
Losmandy
Type
Prism rail

Product safety

Manufacturer: APM Telescopes - Markus Ludes, Quierschieder Weg 38, 66280 Sulzbach, DE, www.apm-telescopes.de
APM Losmandy level dovetail rail - 330 mm long - flat surface
APM Losmandy level dovetail rail - 330 mm long - flat surface
APM Losmandy level dovetail rail - 330 mm long - flat surface
APM Losmandy level dovetail rail - 330 mm long - flat surface
