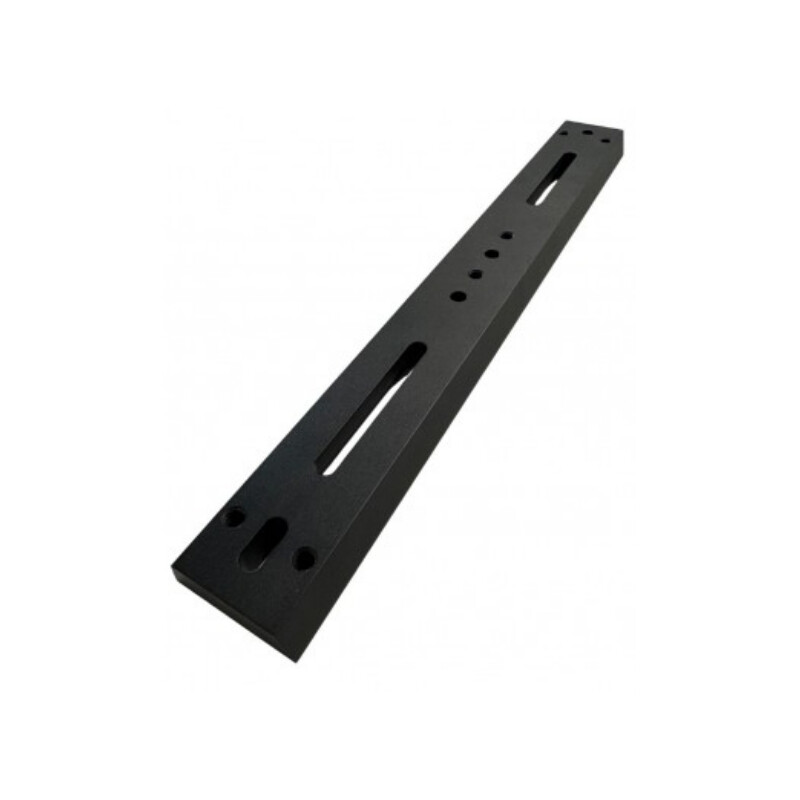

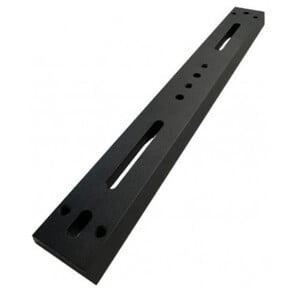

Prism rail, Vixen style, 340 mm

The plate is part of our PLUS system that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.

Thanks to the particular design, the plate can be:

• positioned below the support rings to install the telescope on mounts
• installed above the support rings to increase the mechanical rigidity of the entire telescope (and allow you to attach other accessories such as dovetail clamps with guide rings to precisely adjust the position of the guide telescope)
• used as a basis to create a side-by-side plate (which allows you to install two telescopes in parallel on a mount with a single plate) together with two dovetail clamps PLUS

If you have other brands mechanical accessories, you can still use all the elements of the PLUS system.

Holes and slots for maximum compatibility:

• 4 M6 holes, 2 of which are threaded (standard 6H), ideal for attaching rings or accessories, positioning: 17.5 - 17.5 -17.5 mm
• 2 67 mm long side slots with Ø6.5 mm hole, perfect for individual adjustments
• 3 holes Ø6.5 mm
• 2 side M6 threaded holes with a height spacing of 11 mm

Suitable for EQ5, HEQ5, GP, AVX and AZ-EQ5 mounts, for example
