What's new for the riflescopes of the newest generation?
Three changes are noticeable with barely a glance:

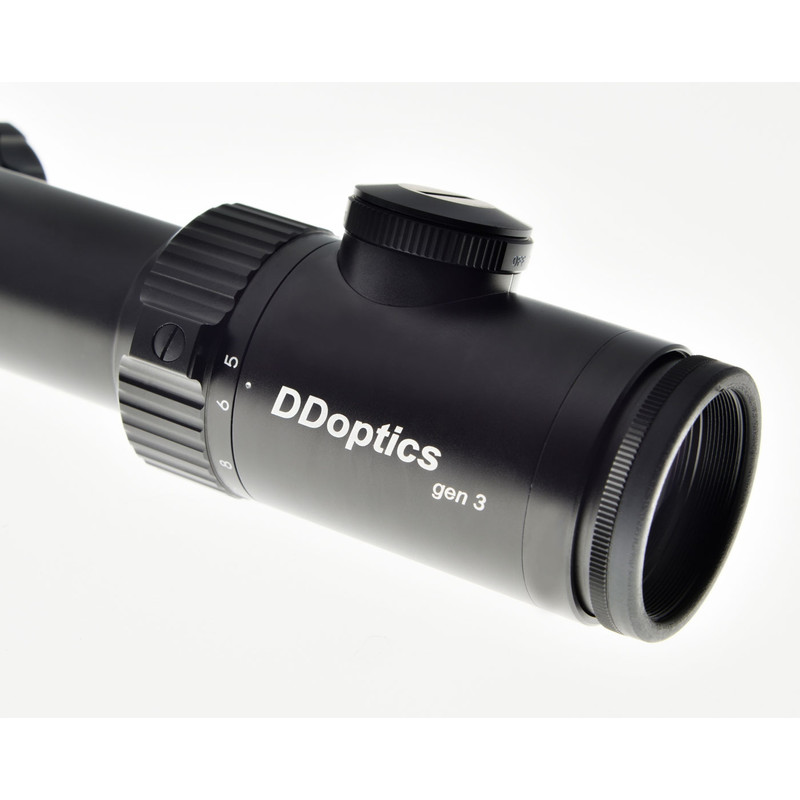

- The magnification adjustment ring was noticeably changed and offers more grip due to the rougher structure.
- The reticle 4 has become more delicate and offers more space in the middle.
- The reticle adjustment is made of metal, clearly defined and equipped with doubleturn and zerostop.
Robust adjustment mechanics for the hard use with zerostop & ASV
The reticle adjustment towers of the DDoptics riflescopes of the generattion III are made of a robust aluminium alloy and have no plastics parts. All aluminium parts are treated with the new, not shiny DDoptics fine-black anodized coating. The adjustment mechanics have been changed to the tactical version meaning they are not only very shock resistant and completely watertight but also hard going and thus protected against unintentional adjustment. That way the reticle adjustment can be used "open", meaning without protection cap, during hunting to quickly adjust the reticle depending on the situation.

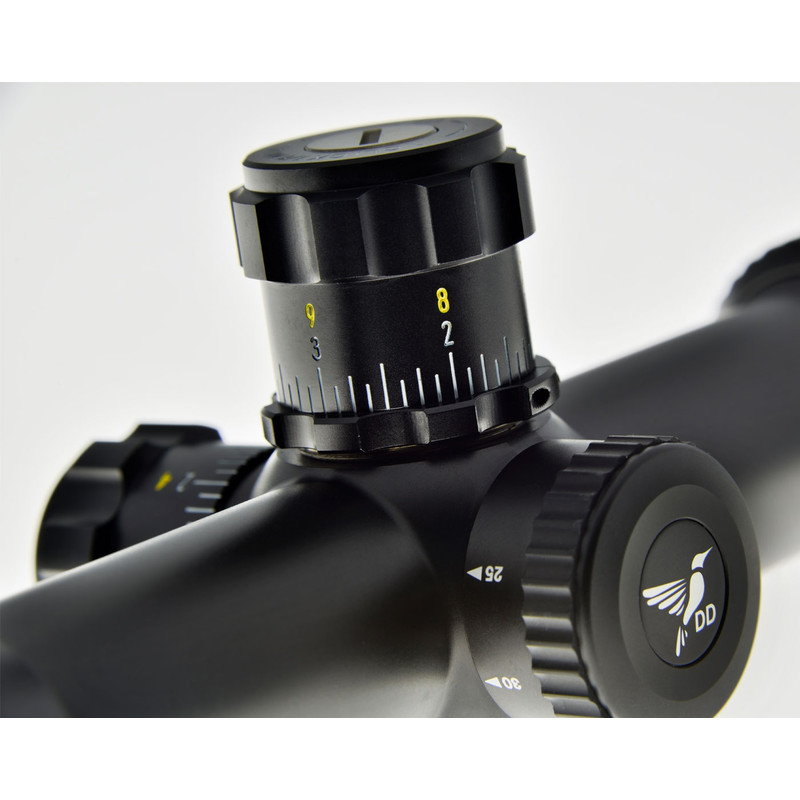

Reticle adjustment with zerostop
The amount of click adjustments can be seen on the double scale (doubleturn) of the hight adjustment tower and be adjusted accordingly. After test shooting the reticle adjustment can be put on zero. Then the zerostop ring is turned until the stop. After that the zero adjustment is adjusted via the zerostop ring from below in order to reach an impact at the position zero. From the position zero different target distances can be preadjusted with a marker system, provided that one knows how to use it. The lateral adjustment tower has two opposing scales. That way the reticle can be preadjusted according to wind direction and wind intensity or a possible movement of the target starting at the zero position.

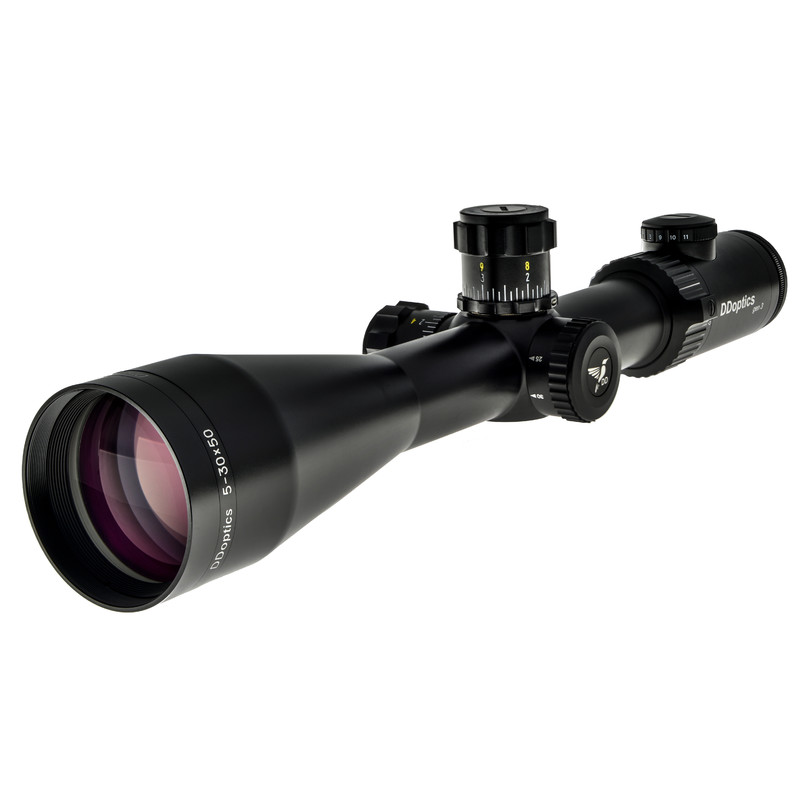

The tactical riflescope by DDoptics: 5-30x50 V6 Duplex HDX with zerostop and doubleturn of the Gen III. See before you're seen
The Nachtfalke 5-30x50 Tactical is a high-performance rifle scope with 6x zoom and innovative technology. With its robust, 2mm thick frame walls these optics even exceed military standards. The tactical reticle adjustment turrets are made of aluminium alloy and do not contain any plastic parts. All aluminium parts feature DDoptics' new, fine-black anodised coating. The shiny reticle adjustment components found on the 5-20x50 have been eliminated in the 5-30x50. The well-defined, precise, firm T-click adjustment guarantees absolute precision and repeatable accuracy.
- new CT glass (clear transmission)
- zerostop (for zero position)
- doubleturn (double scales)
- lateral adjustment with opposing scales (wind left-right)
- very high resolution
Quick adjustment with zerostop
The amount of click adjustments can be seen on the double scale (doubleturn) of the hight adjustment tower and be adjusted accordingly. After test shooting the reticle adjustment can be put on zero. Then the zerostop ring is turned until the stop. After that the zero adjustment is adjusted via the zerostop ring from below in order to reach an impact at the position zero. From the position zero different target distances can be preadjusted with a marker system.

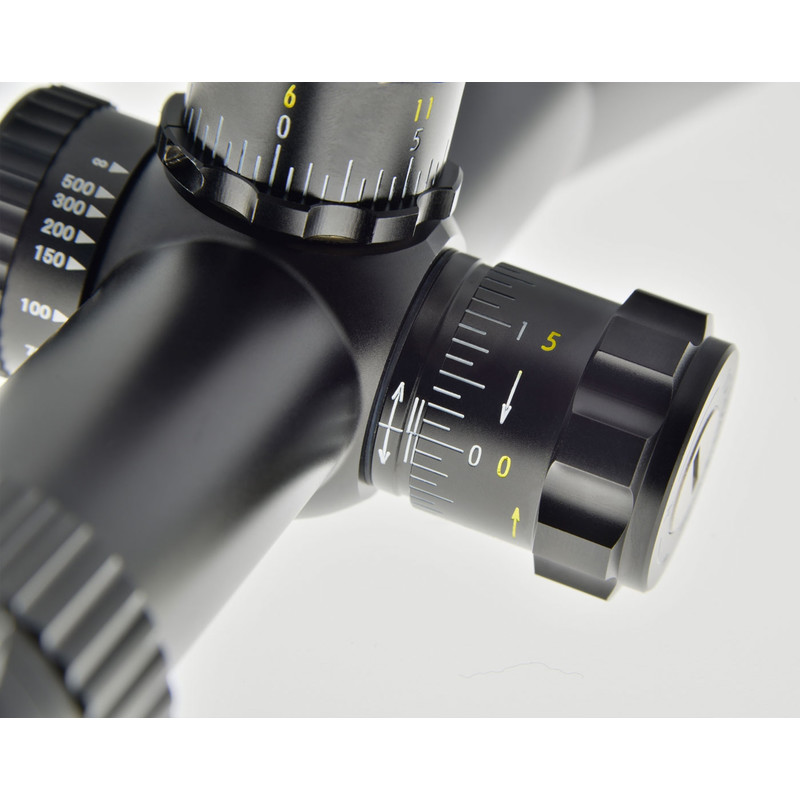

Lateral adjustment with opposing scales
The lateral adjustment has two opposing scales. That way the reticle can be preadjusted according to wind direction and wind intensity or a possible movement of the target starting at the zero position..
The parallax compensation
guarantees a razor sharp and effortless image starting at 25m and corrects the diagonal insight and resulting shooting errors.
Almost indestructible
The nitrogen filling of the Nachtfalke 5-30x50 T ensures watertightness (0,3kg/cm2) and protects against inside condensation. Rough use can't damage the riflescope tube (diameter 30mm, length: 348mm) as it is made of duraluminium (70%), brass (20%) and steel (10%). The outer walls are more than a millimeter. The shock-proofness is up until 1000 G or 6500 Joule. The riflescope is fully functioning even at extreme temperatures (+80 degrees Celsius to -20 degrees Celsius).
This model is equipped with the Fine Duplex reticle with illuminated dot. It can be dimmed continuously, from daylight suitable to use with night vision devices.
Easy upgrading with the new IFiber illumination dot possible!
What are the advantages of the new DDoptics IFiber technology?
More comfort and safety without having to adjust. The illumination dot is as easy to activate as ever. Simply turn the knob to steplessly adjust the illuminated fibre-optic dot to the desired brightness. That's it! Your new, intelligent IFiber will do the rest.
Your movement activates your illumination dot. (Motion-Control)
A highly modern position and movement sensor registers every movement and trhe position of the optics. A controller interprets this data so that the illumination dot can be wherever it is needed.. That way a maximum of power is economized.
Up- and downhill feature (Angle-Control)
If you exceed the shot angle of 45 degrees (higher or lower) the illumination dot checks if you are shooting up- or downhill. If you don't get back to a normal shooting position after a few minutes the illumination dot changes to rest and transport mode.
The transport mode (Position-Control and Angle-Control)
During transport mode (hanging over the shoulder or lying on the side) the illumination dot isn't activated by movement. Once you bring the optics in a normal shooting position the IFiber Controller reacts to movement again. A short tug or tilting will activate the illumination dot again in the preadjusted brightness (IFiber-Memory-Control).
How does IFiber work:
The logical answer is: state-of-the-art micro technology. The new illumination dot controller has been equipped with state-of-the-art micro technology. An ultra-modern position and motion sensor registers every movement as well as the position of the optics. This information is interpreted by a controller to make sure the illumination dot is available when you need it, while at the same time saving the maximum amount of energy. This control has an energy consumption which isn't higher than the self-discharge of your battery.
IFiber-BLP (Battery Longevity Protection)
If the IFiber doesn't notice any activities during more than three hours the electronics can turn off itself and the light-emitting diode completely. Thus the controller enables total battery protection. After turning off it can't be activated without your help. In that condition the your battery is protected as best as possible against discharging by a consumer (Controller, light).
Restart via reset
To restart the illumination dot just turn the on/off control back to position zero for two seconds. After that, you can use the illumination dot again as usual.
