Off-Axis-Guider Off-axis guider for G3 CCD cameras with external filter wheel, M68

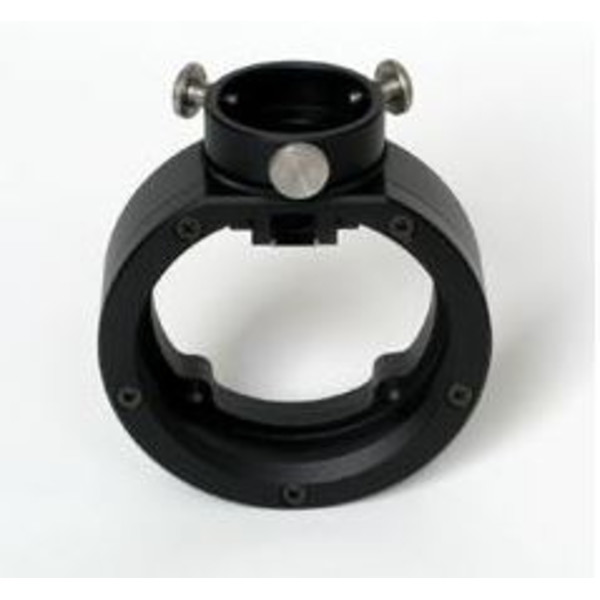

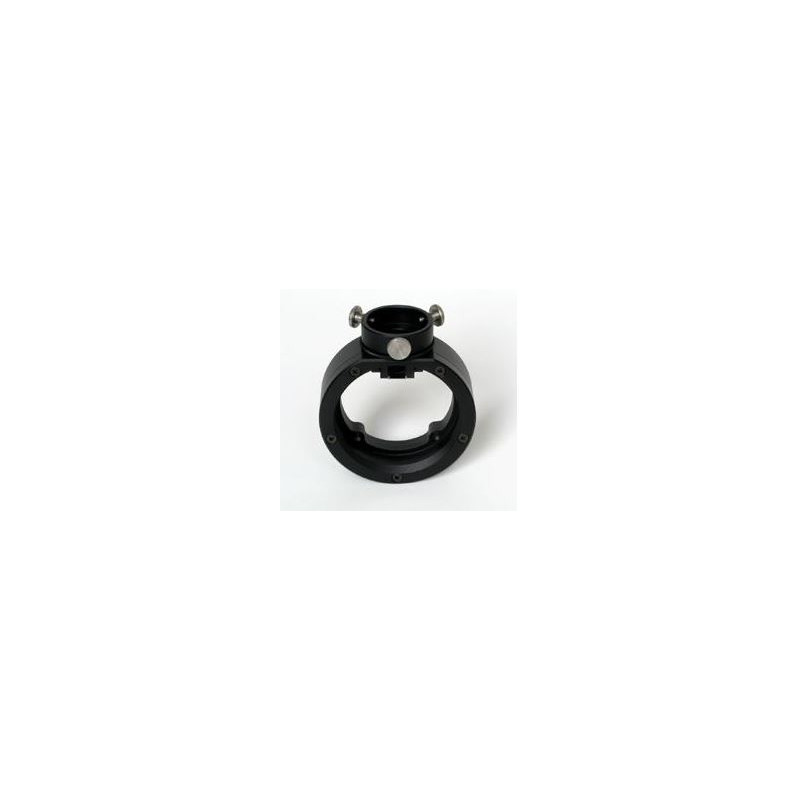

Moravian M68 Off-Axis Guider for G3 cameras with external filter wheel

Large off-axis guider with M68x1 ZEISS level connection on the telescope side.

The Moravian Off-Axis Guider OAG-3-M68 allows tracking and recording with only one telescope. A guide tube is no longer necessary. The off-axis guider is dimensioned so that the small prism lies outside the detection range of the CCD sensor.
The prism is automatically positioned at the optimum distance from the optical axis.

The off-axis guider is suitable for Moravian G3 CCD cameras with external filter wheel. For cameras with internal filter wheel or colour cameras without filter wheel, we recommend the TSOAGM68.

A well-corrected optical system isa prerequisite for the effective use of the Off-Axis-Guider. The working distance from the M68 connection thread to the camera sensor (G3 cameras with external filter wheel) is 61.5 mm. If a corrector is used, it must offer a correspondingly long working distance.
