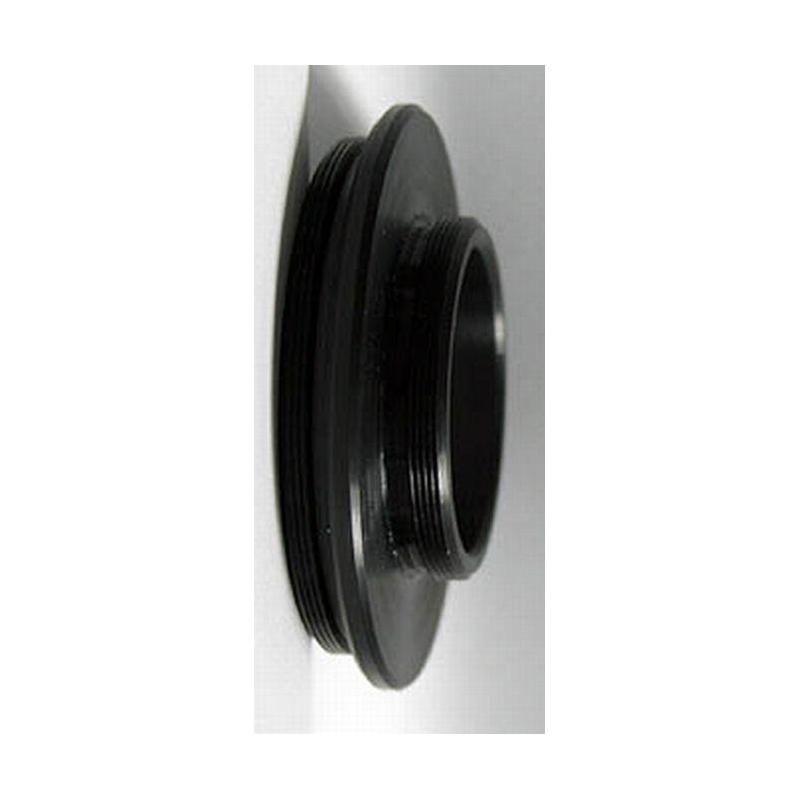

T-2 Fokaladapter of M-60 on T-2

Adaptor from M-60 to T2 ..... only 3mm optical path

Newton telescopes have a common feature: they usually have a short focus. If you want to attach cameras or work with long optical parts (binocular attachment, etc.), you need to save every millimetre of optical path.

The adaptor is suitable for the following telescopes:
It has an M-60 external thread on the telescope side, so it fits into the extension tube of Newton telescopes from the following companies: Celestron, Vixen, Synta, GSO .... , i.e. for all Newtonian telescopes whose 2" focuser tube has an M-60 internal thread.

The 2" focusers of Vixen refractors also have this M-60 internal thread and are therefore also suitable.

What threads are available:

• The M-60 external thread is on the telescope side.
• Additionally integrated - a screw-in thread for 2" filters
• On the eyepiece/camera side, there is a T2 thread connection.

And all this with an optical path of only 3 mm – it couldn't be any shorter.

Adaptation options:
Thanks to the 2" filter screw-in thread, the Baader coma corrector can be connected "without loss of optical path" or even glass path correctors for binocular attachments with the appropriate rings from our range. The correctors can be sunk deep into the focuser, thus gaining valuable space.
Any cameras can be connected to the camera side via the T2 thread.

TS Optics is a brand of Teleskop-Service.
