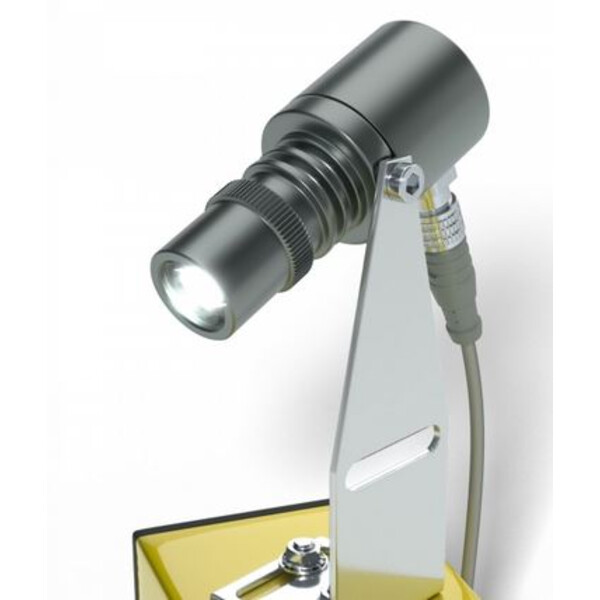

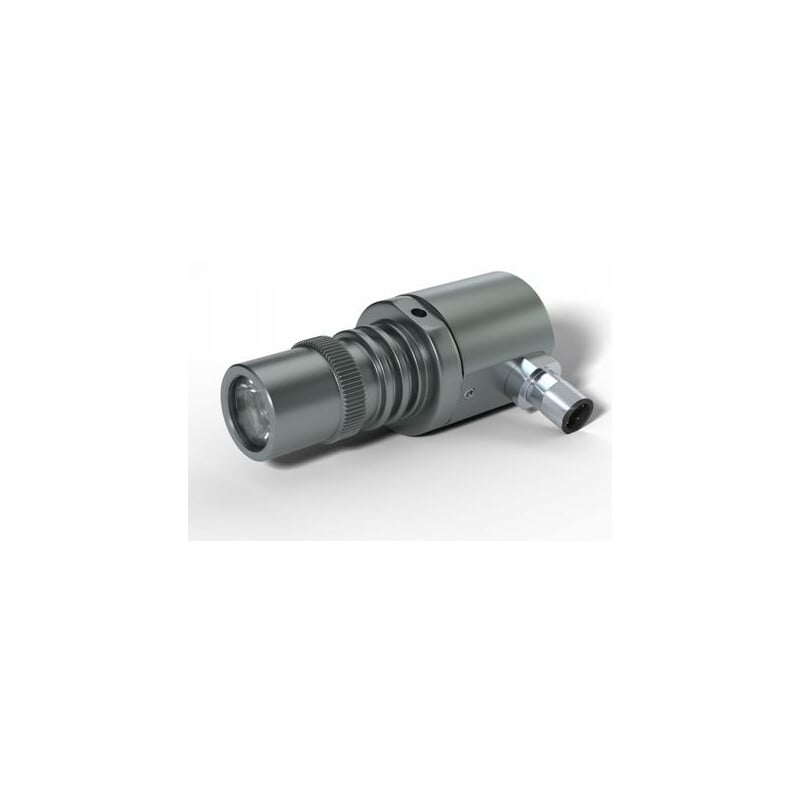

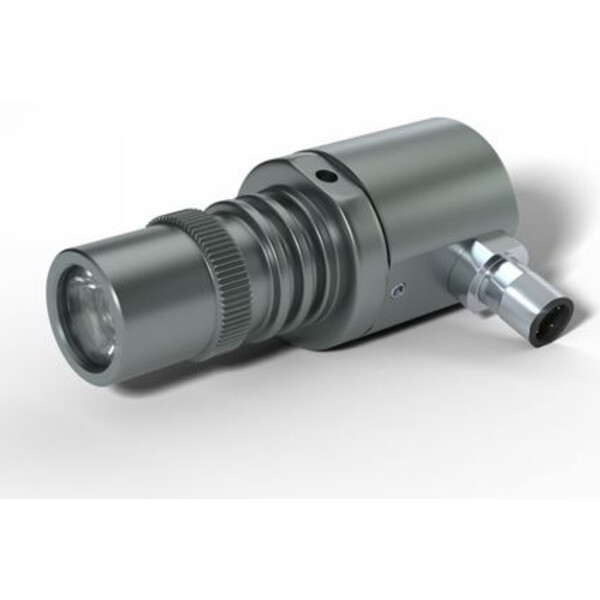

IL100-24V, with M12 plug (4-pole)

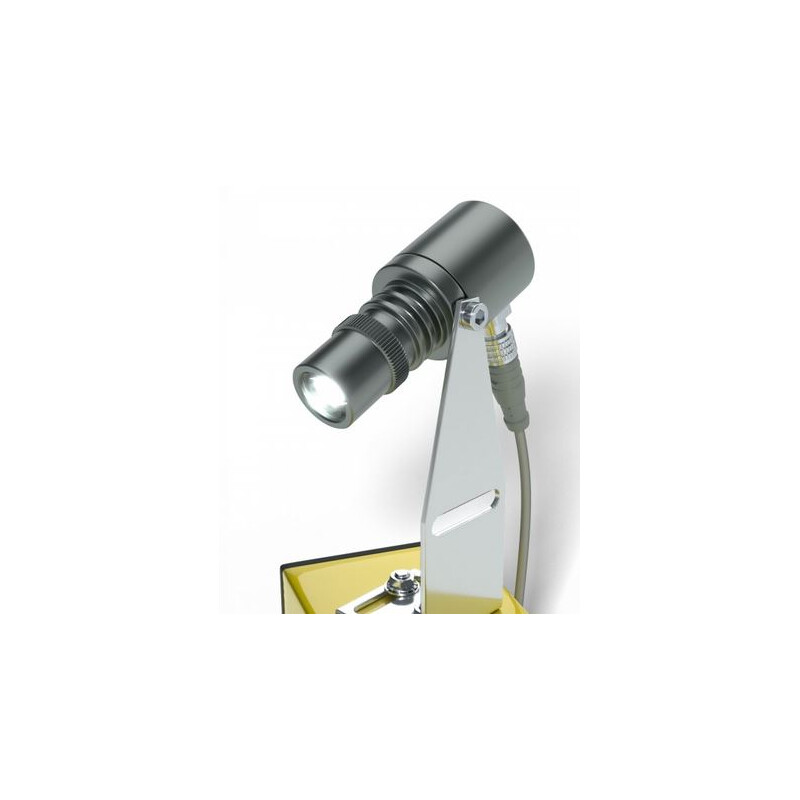

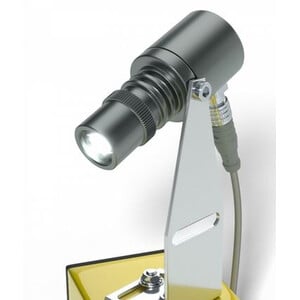

LED Machine Lamp IL 100 -24V

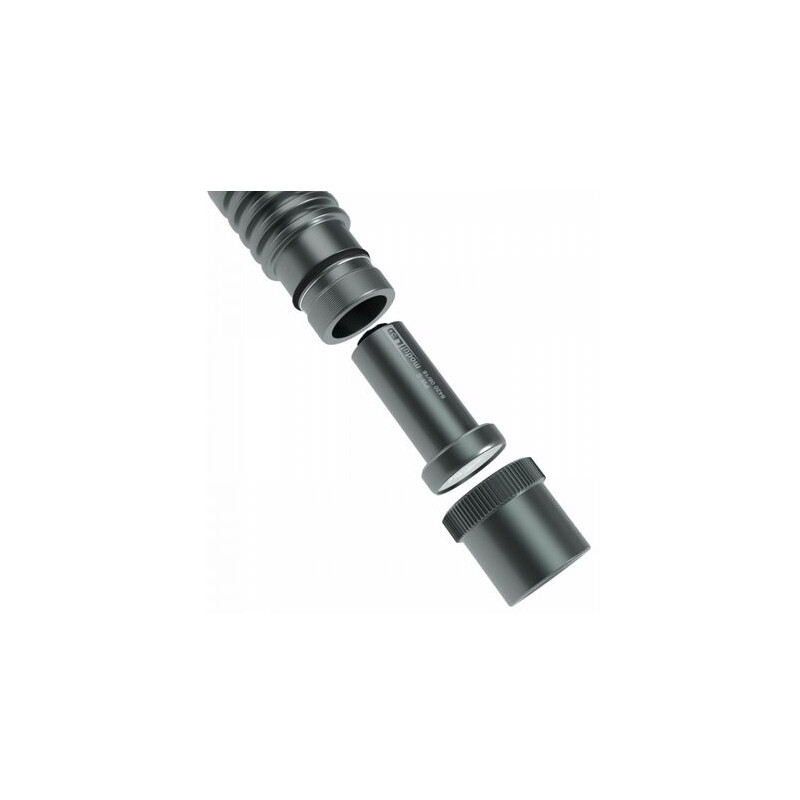

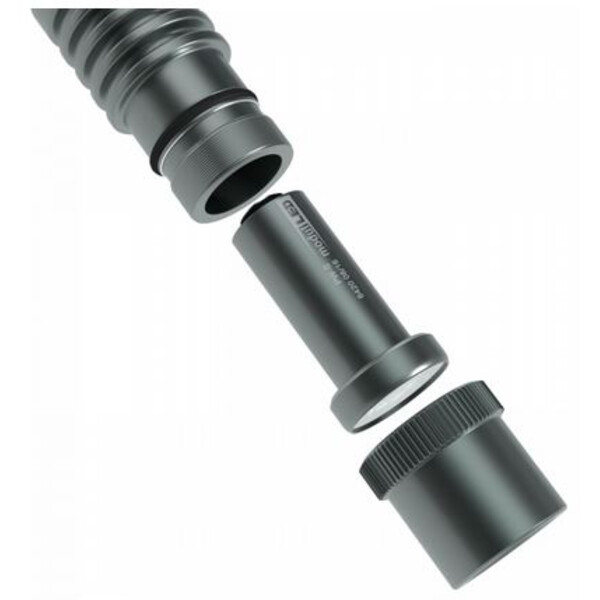

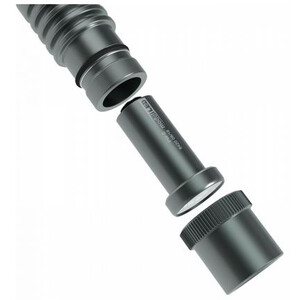

• Fast change of the illuminants with innovative modul-LED® concept
• Whith screw caps and protective glasses for high demands
• Flicker-free lighting thanks to optimized electronic
• Ideal to use in industry and science
• Brightness adjustable at the PWM trigger
• Power is supplied directly at the machine (24 V)
• Solid aluminium housing in modern design

Technical Data

Illuminant LED Module 21 mm (not in package)

LED Type 3 W Power LED

Brightness control yes, by PWM trigger

Operating voltage 24 V DC

Protection class III

IP code IP67

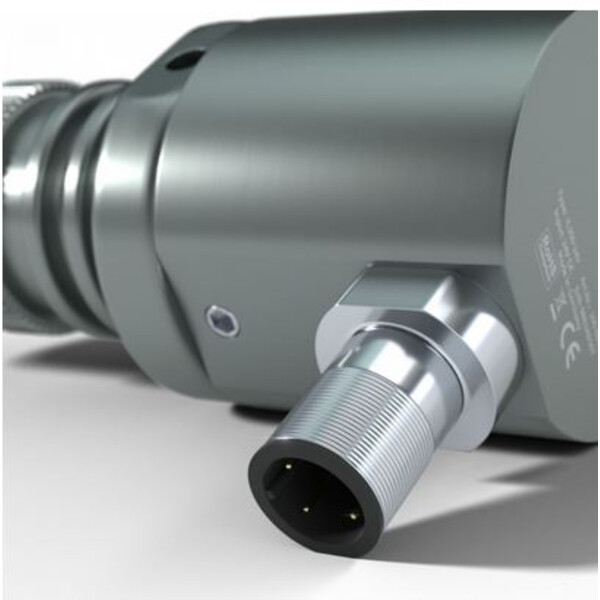

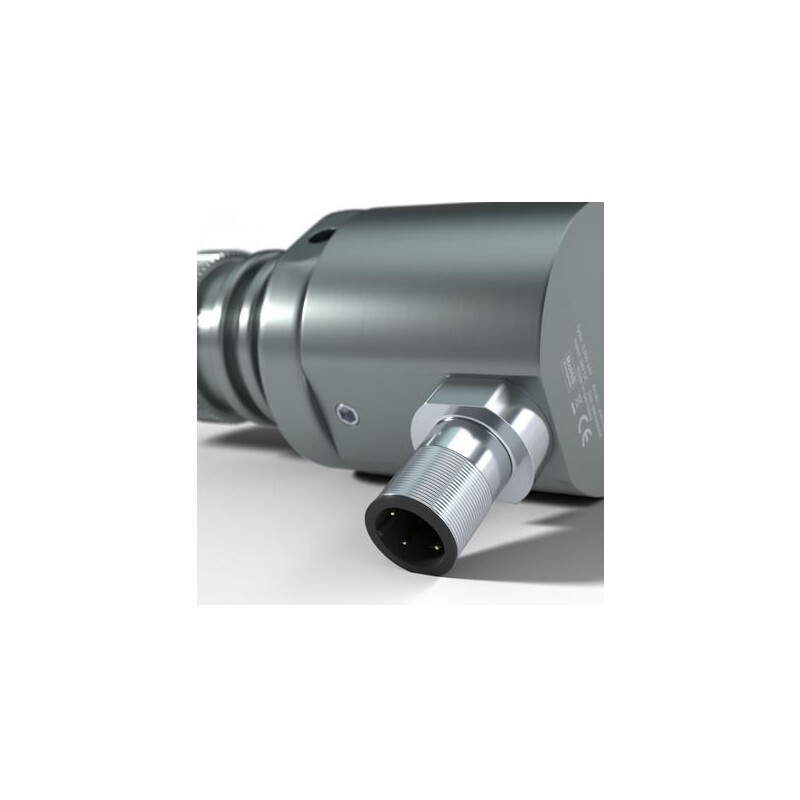

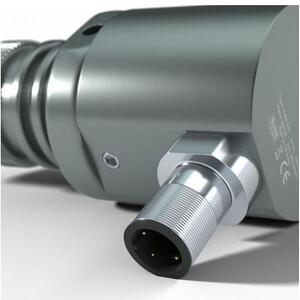

Connection M12 plug

Length 96,9 mm

Diameter 25 mm

Protective glass borosilicate glass

Material anodized aluminium

Color titanium

Weight approx. 100 g
