VR-SYSTEM-Mini
Thanks to digital recording and software-based processing technology, perfect panoramic views and 360° panoramas are increasingly becoming the focus of photographic interest. The new NOVOFLEX Panorama VR System Mini perfectly meets the demands of professional photographers for an easy-to-use adjustment system that allows a camera to be rotated 360° around its nodal point. For a perfect 360° panorama shot without perspective distortion, it is essential to position the camera so that the axis of rotation passes through the nodal point of the camera system. The new NOVOFLEX Panorama VR System Mini offers the perfect adjustment and rotation elements in one set for such shots. The system is suitable for portrait and landscape shots with a maximum axial adjustment range of 185 mm. Another new feature is the adjustable detents with 16, 30, 36 and 48 steps. By skipping individual detent steps, further partial steps can be achieved.
Application:
Designed for mirrorless system cameras but also suitable for lighter DSLR cameras. For single-line cylinder and surface panoramas. Depending on the camera and lens, image angles of up to 360° horizontally and 120° vertically are possible. Recommended lenses: Wide-angle lenses from 10 mm focal length via standard zooms to light telephoto lenses up to 135 mm focal length.
New to the VR-SYSTEM Mini
The system is particularly compact and lightweight as it is based on slim profiles and a special Q=MOUNT Mini. The compact rotating plate has adjustable detents with 16 (22.5° steps), 30 (12° steps), 36 (10° steps) and 48 steps (7.5° steps). Further steps can be achieved by skipping individual detent steps. For example, every third step of the 30-step grid results in a 10-step grid, i.e. 36° steps.
Advantages:
•Simple, clear, very compact and lightweight system.
•The individual parts can also be used for other tasks.
Who is it for?
The Panorama VR-SYSTEM Mini is suitable for all photographers who prefer classic, single-line cylinder and surface panoramas and are looking for a system that is as light and compact as possible.

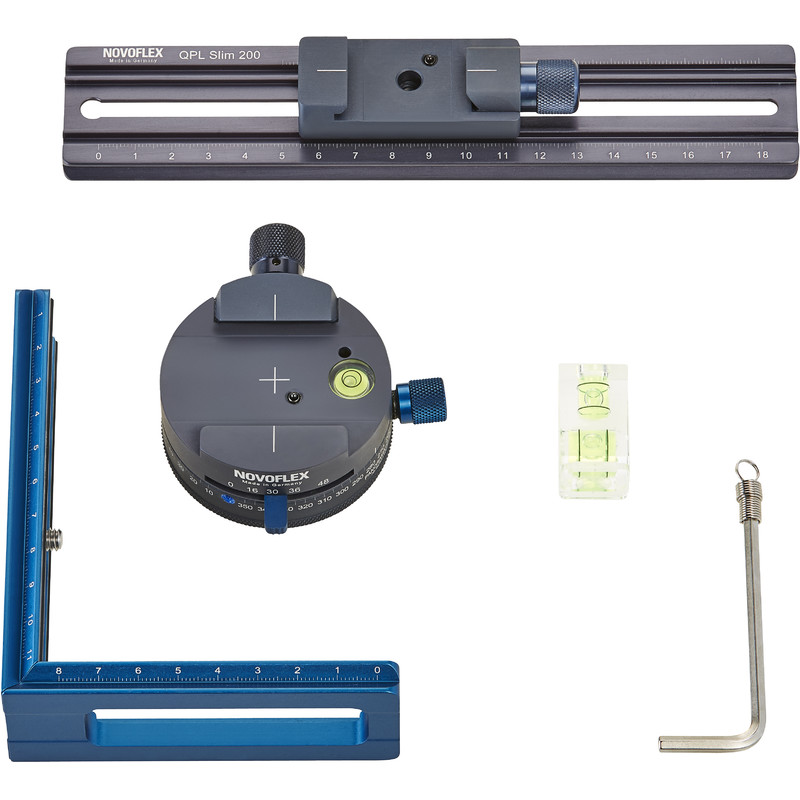

Scope of delivery:
- Panorama plate Panorama=Q 48,
- QPL-Slim 200 with mounted Q=MOUNT Mini
- QPL-SLIM vertical angle,
- Spirit level for the flash shoe,
- Instruction manual
Technical data:
- Suitable lenses: Focal lengths from 10 mm to 135 mm
- Adjustment range in optical axis: 185 mm
- Recording type: single line
- Panorama type: flat and cylindrical projection
- Recommended software: Panorama Studio 2, PTGui
- Weight: 525 g
- Tripod/camera connection: 1/4" or 3/8" / 1/4"
