More about the series H-600...

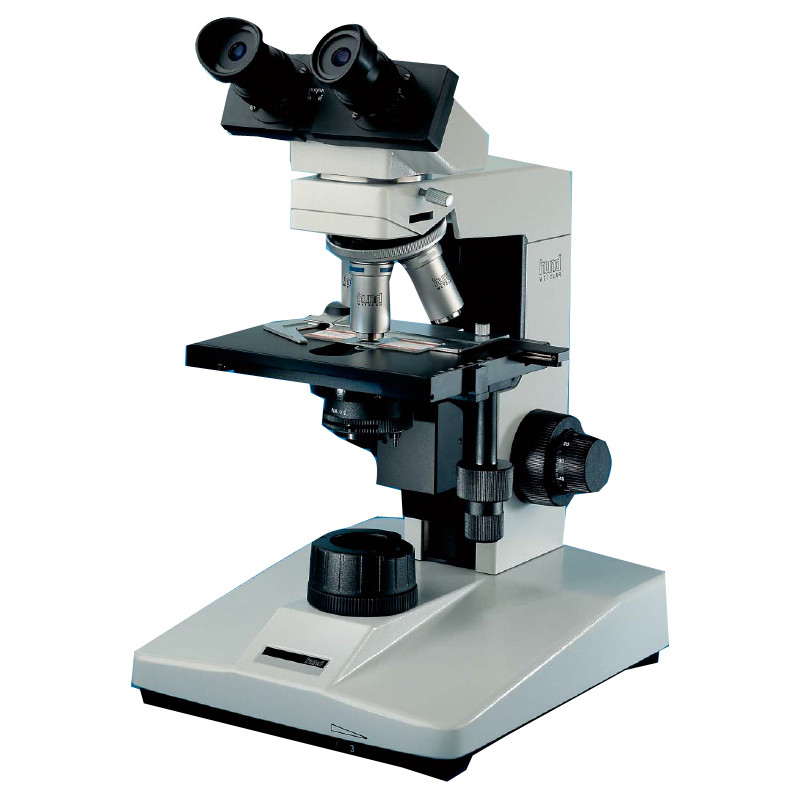

The H 600 WILO-PRAX PL model
has been specially designed for use in general medical practices and laboratories.
It is particularly suitable for examining stained cytological and histological specimens. It is also recommended when high-quality photographic documentation is required.
Specification:
- Tripod: with 5-position objective turret, forward inclined
- WF 10x/20 eyepiece pair with enlarged field of view
- Plan achromatic lenses: Plan 4/0.10; Plan 10/0.25; Plan 40/0.65; Plan, spring; 100/1.25 (oil), spring
- Condenser NA 0.9
- Contrast method: bright field
- Tube: binocular, 30°
- Eyepieces: wide field 10x/20
- Magnification: 40 - 1000x
- Microscope stage: Cross table 160x130mm
- Condenser: NA 0.9
- Lighting: 12V / 30W halogen, continuously adjustable
Scope of delivery:
- 2 eyepiece cups
- Filter slider II
- Conversion filter
- Filter VG 9
- Replacement bulb
- 2 replacement fuses
- Immersion oil
- Operating instructions
- dust cover
- Power cord
