Microscopy > Microscopes > Upright microscopes > Phase contrast microscopes > Hund > Medicus > Hund Microscope Medicus plus PH, bino, plan, 100x - 1000x
Product no.: 44366

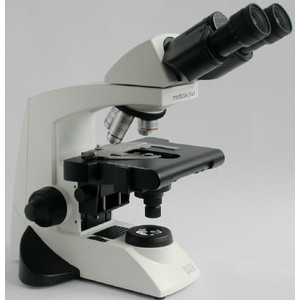

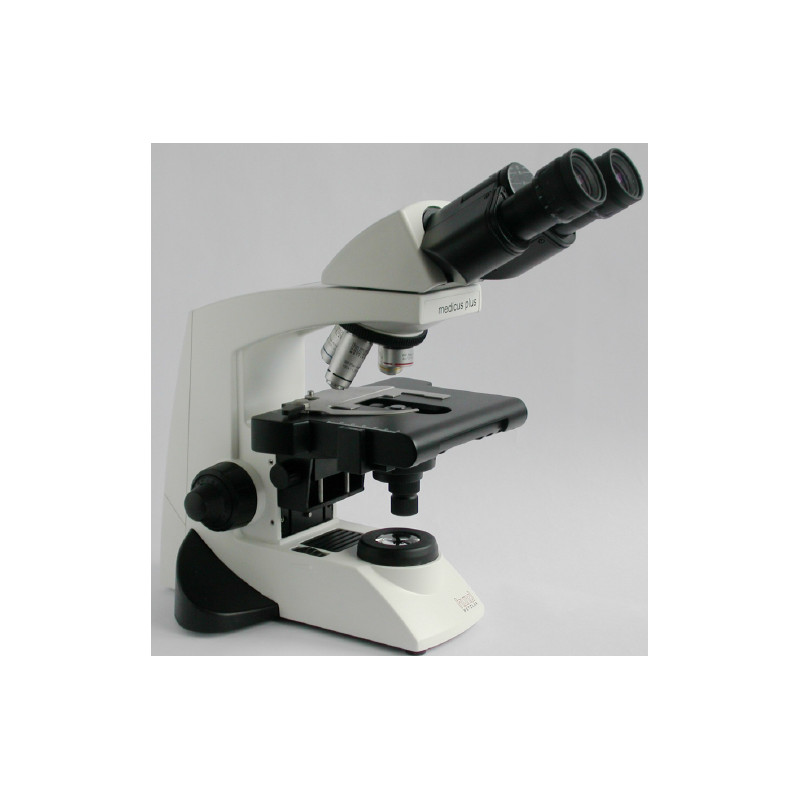

Microscope Medicus plus PH, bino, plan, 100x - 1000x

$ 1,910.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series Medicus...

Hund microscopes have a high quality standard, a good functionality. They are ergonomic and versatile system for medical and biologycal applications .

Laboratory microscopes Medicus

  • Solid cast tripod in classic gooseneck shape
  • Coaxially arranged coarse and fine focusing drive.
    - Height adjustment of the coarse adjustment knob total: 12.7 mm.
    - Height adjustment of the fine adjustment knob per division: 3 microns
  • Binocular Siedentopf -Tubus, 360° rotable .
    - Viewing angle 30 °
    - Tube factor 1x
    - Eye distance of 55 mm - 75 mm adjustable
    - Diopter compensation at each eyepiece.
  • 4-position nosepiece with ball bearing guide
  • Plan-achromatic lenses, infinity-corrected
  • Cross table 200 mm x 160 mm with ergonomically located coaxial knobs.
    - Sliding range 78 mm x 54 mm
    - Specimen holder with spring lever
  • Height adjustable Abbe condenser NA 1.25
  • Integrated 6 V / 20 W halogen lights, infinitely variable

Specifications

Optics


Magnification
1000 (50, 100, 500, 1000)
Eyepiece
10 x /20 (Widefield)
Lens type
Plan, achromatic (infinity corrected)
Objective 1
10x/0,25 plan
Objective 2
40x/0,65 plan, ph2, S
Objective 3
100x/ 1,25, plan, S, oil
Lighting
Transmitted light
Condensor
Abbe condenser (N.A. 1.25) height-adjustable, 2 phase-contrast sliders
Lamp type
Halogen
Optical system
infinity

Capacity


Brightness control
yes
Dark field
yes
Phase contrast
yes
brightfield
yes
Contrast methods
Phase contrast

Mechanics


Viewing posture (°)
Siedentop tube; 30° viewing angle
Specimen stage
Cross table
Type of build
binocular
Focusing
Coarse and fine movement
Revolver
4

Special features


Dust cover bag
yes

General


Series
Medicus

Contrast methods


Phase contrast
yes

Area of application


Phase contrast
yes
Veterinary medicine
yes
Pathology and histopathology
yes
Forensic science
yes
Biology, zoology & botany
yes
In-vitro diagnostics
yes
