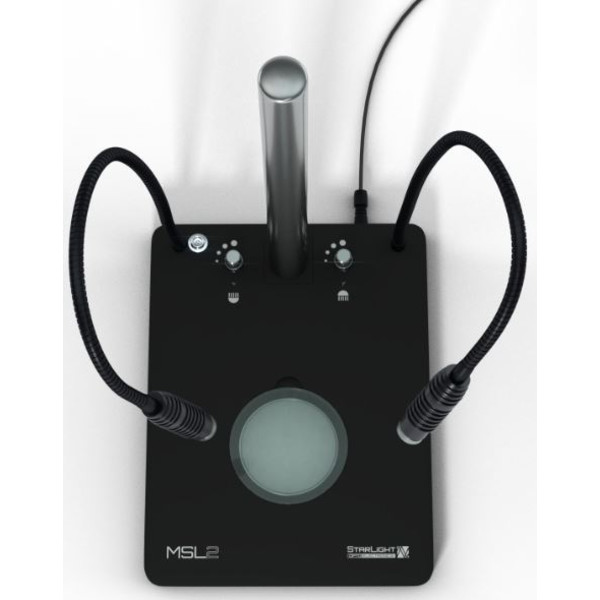

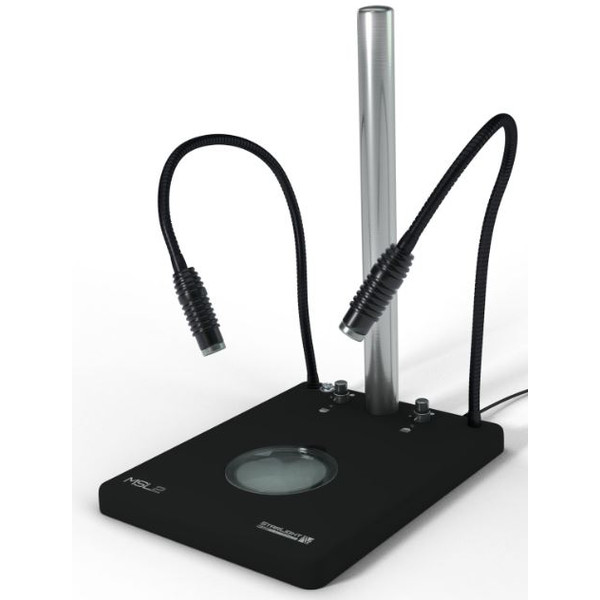

MSL microscope tripod with reflected light
The professional base for zoom and stereo microscopes with LED incident light
The MSL microscope stand is a professional base for all stereo and zoom microscopes with column mounting. Thanks to flexible incident light with the modul-LED® system, it is suitable for both manufacturing and testing tasks in industry as well as for typical laboratory applications.
lighting
Two flexibly positionable gooseneck lights serve as incident light. Thanks to the modul-LED® system developed by StarLight, the LED modules in the light heads can be changed quickly and easily, ensuring that the optimum light is available for every application. The LED modules are available in different light colours and beam angles. UV modules in several wavelengths are also available.
ATTENTION: The LED modules must be ordered separately. You will find the LED modules under Accessories!
The incident light can be dimmed between 0% and 100% using an easily accessible rotary knob on the stand plate. Optimised electronics deliver absolutely flicker-free light and ensure streak-free images for photo and video recordings. The high-quality LEDs have a long service life even in continuous use.
Microscope column and stand plate
The microscope column is available in various diameters. Its distance from the work surface can also be changed from 150 mm to 161 mm in a few simple steps or adjusted to customer requirements. This makes the MSL suitable for a wide range of microscope types.
The non-slip feet and solid base plate of the MSL guarantee stability and safe working. The included power supply can be easily attached to the rear edge of the base plate when changing locations or for storage.
Scope of delivery and accessories
In addition to the plug-in power supply and a hexagon socket tool for mounting the microscope column, a black and white disc is included in the scope of delivery. The LED modules can be selected individually according to the respective application. Greater distances to sockets can be overcome with an additional extension cable. The enclosed operating instructions are bilingual (German/English).
Technical
- Lighting values depending on LED modules
- Ø LED modules 21 mm
- Length of gooseneck 450 mm
- Max. power consumption, incident light approx. 7.5 W
- Power supply input (EU|UK|US) 100 - 240 V AC, 50/60 Hz
- Power pack output 24 V DC, 1 A
- Power supply cable length 1.4 m
- Colour of gooseneck/light head black
- Ø glass or black and white disc 99.8 mm
- Thickness of glass or black and white disc 4 mm
- Dimensions of tripod plate including feet 230 mm × 300 mm × 35 mm
- Material of tripod plate: anodised aluminium
- Length of microscope column 370 mm
- Ø microscope column 32 mm h9
- Material microscope column stainless steel
- Distance between microscope column and centre of disc 150 mm (can be changed to 161 mm)
- Weight of stand plate 4.6 kg
- Weight of microscope column 2.4 kg
- Dimensions with packaging 443 mm × 353 mm × 123 mm
- Weight with packaging approx. 7.5 kg
