Microscopy > Microscopes > Upright microscopes > Polarising microscopes > Euromex > M-Serie > Euromex Microscope ME.2075 Asbestos
Product no.: 9263

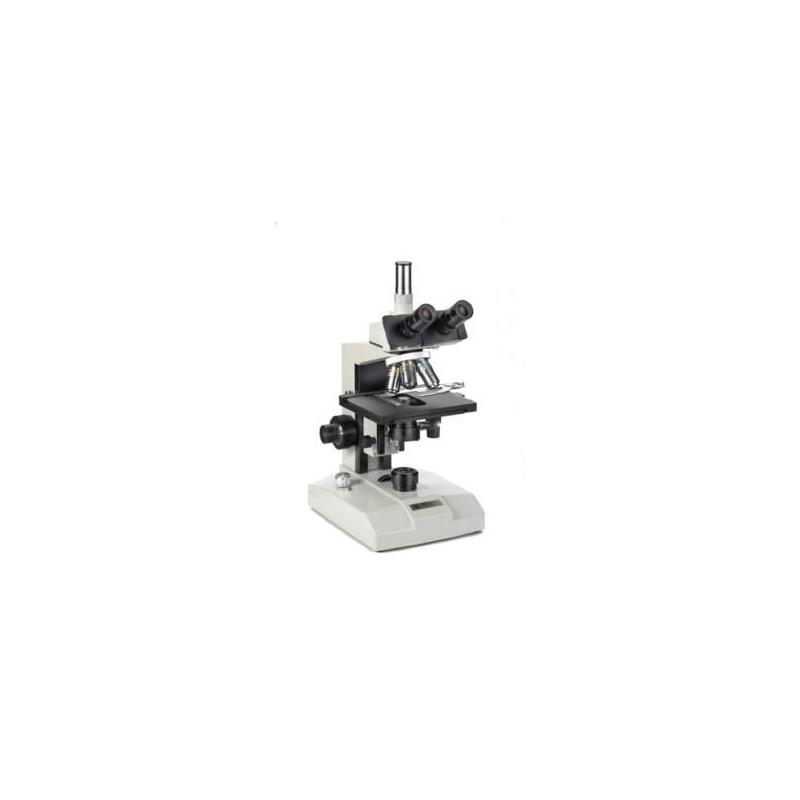

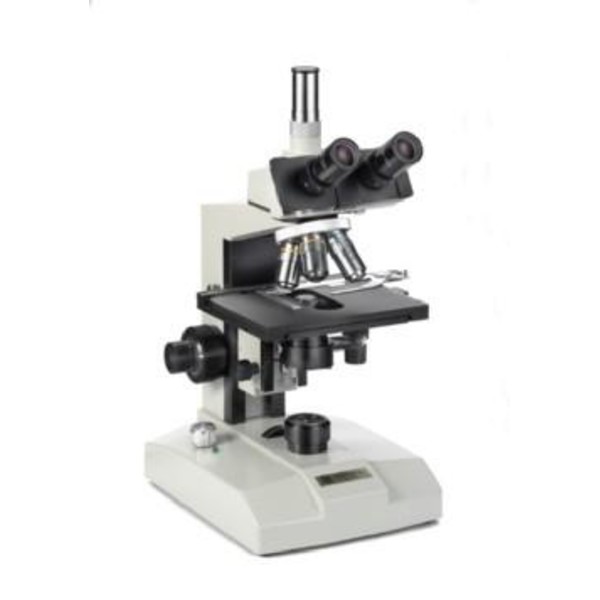

Microscope ME.2075 Asbestos

$ 5,200.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Microscopy

Product description

The 'material' microscope is nearly identical to the biological microscopes but have a few differences like specific objectives, both incident and translucent illumination, polarisation and copensation filters to examine materials (metal, plastics, minerals, asbestos, glass, wood, chemicals). There are specific metallurgic and polarisation microscopes but also microscopes specially designed for asbestos research

Specifications

Optics

Magnification
500 (50, 125, 500)
Eyepiece
12,5 (HWF eyepiece, mesasuring eyepiece with Walton-Beckett graticule)
Condensor
Abbe (N.A. 1.25 bright-field phase condenser, adjustable)
Lighting
Transmitted light
Lamp type
Halogen (6V/30W, continuously adjustable, Köhler illumination)
Lens type
Semi-Plan Achromatic, Phase contrast
Power supply
Power plug

Mechanics

Focusing
Coarse and fine movement (coaxial, with 0.0025 mm division)
Type of build
Trinocular
Specimen stage
Cross table (80 x 52 mm, on specimen stage: 171 x 140 mm, with vernier scale, 0.1 mm division)
Viewing posture
30° oblique viewing, 360° rotating head

Special features

Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General

Colour
black-white
Series
M-Serie
Weight (g)
9000
Suitable from
16

Suitable for

Beginners
-
Advanced
-
Pros
yes

Area of application

Phase contrast
yes
Mineralogy
yes
show more...
