Microscopy > Microscopes > Upright microscopes > Polarising microscopes > Evident Olympus > CX43 > Evident Olympus Microscope Olympus CX43 POL, bino, LED, ohne Objektive!
Product no.: 53989

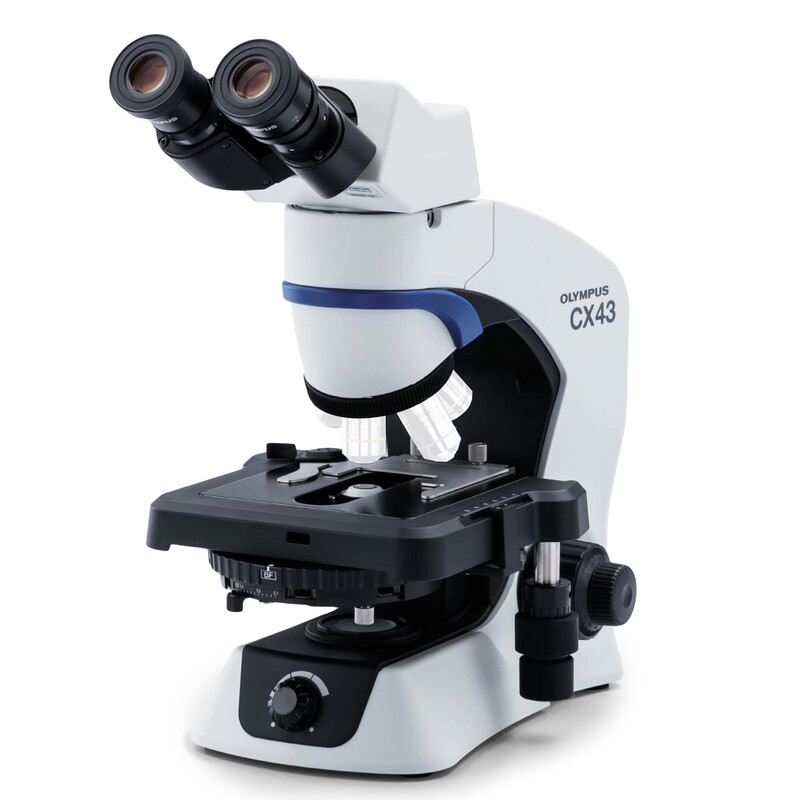

Microscope Olympus CX43 POL, bino, LED, ohne Objektive!

$ 5,600.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series CX43...

Olympus CX43 polarization (E07MIS0051)

Comfortable, High-Throughput Routine Microscopy

The CX43 microscope enable users to remain comfortable during long periods of routine microscopy observations. The microscope frame conforms to the user’s hands and the location of the control knobs maximize ergonomics to improve work efficiency. Users can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand with minimal movement. The microscope also features an optional camera port for digital imaging.

Upright microscope set for transmitted and reflected light observations with polarization

  • integrated LED illumination
  • low-positioned quintuple nosepiece
  • mechanical stage (211 x 154 mm, travelling range 76 x 52 mm) with right handle, low drive control, stage lock pin and specimen holder for one slide
  • Abbe condenser, NA 1.25
  • 7 position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter
  • coaxial/fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm,
  • binocular tube with two widefield eyepieces for FN20
  • polariser and analyser are included

Included components:

  1. Binocular tube U-CBI30-2-2 (N1468300)
  2. Eyepiece: WHB10XH-2 (N1130000) (diopter compensation)
  3. Eyepiece: WHB10X-2 (N1129900)
  4. Polariser U-POT (037855)
  5. Adapter U-TAD (037861)
  6. Analyser U-ANT (037853)
  7. Polariser CX3-KPA (N5671900)
  8. Tripod CX43RF-1-2 (N5731700)
  9. Connecting cable UYCP (035425)
  10. Dust cover (038159)

Without objectives!!

Please choose your objectives from the accessories!

Specifications

Optics


Number of objectives
0
Lighting
Transmitted light
Condensor
Abbe (7-Positions HF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, Fluo)
Lamp type
LED
infinity corrected
yes
Optical system
infinity

Capacity


Polarization
yes
brightfield
yes
Contrast methods
Polarization

Mechanics


Type of build
binocular
Focusing
Coarse and fine movement
Specimen stage
Cross table (211 x 154 mm)
Revolver
5

Special features


Luminous field diaphragm
yes
Wide-angle eyepiece
yes (10X/20 mm wide field)

General


Width (mm)
211
Length (mm)
397
Height (mm)
393
Series
CX43
Weight (g)
7,3

Contrast methods


Polarization
yes

Field of application


Medicine
yes

Area of application


Pathology and histopathology
yes
Polarization
yes

Miscellaneous


supplier product number
E0460051 (E07MIS0051)

Recommended accessories

Microscopy > Microscopy accessories (23)
Objective

Evident Olympus PLN2X/0.06 Plan Achromatic Objective

$ 960.00*
Microscopy > Microscopy supplies (3)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 10.90*
Baseprice: $ 2,180.00/L
Microscopy > Other (1)
Stereo zoom head

Evident Olympus Binocular Head U-CBI30-2-2, for CX41

$ 860.00*
Maintenance & Cleaning > Cleaning towelettes (3)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*

*All prices include VAT plus shipping costs.

Evident Olympus Microscope Olympus CX43 POL, bino, LED, ohne Objektive!
Brightfield (Leukocyte)
Evident Olympus Microscope Olympus CX43 POL, bino, LED, ohne Objektive!
Brightfield (urinary cast)
Evident Olympus Microscope Olympus CX43 POL, bino, LED, ohne Objektive!
Phase contrast (Hela cells)
