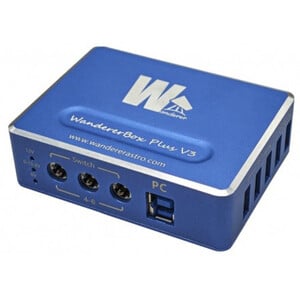

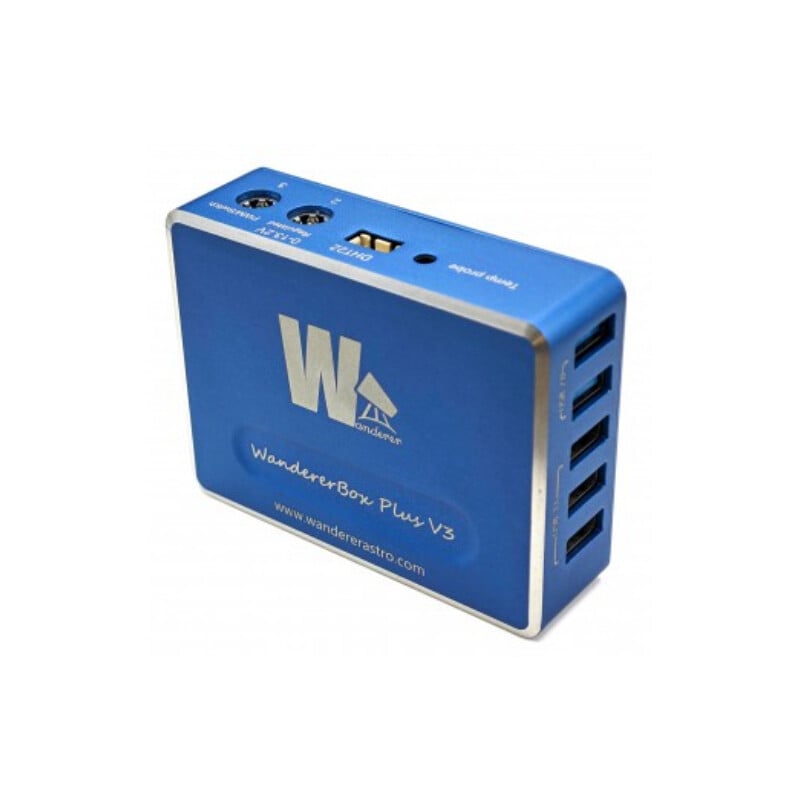

The PowerBox PLUS V3 is a powerful yet compact power and data centre designed specifically for astrophotographers.
Efficient power distribution

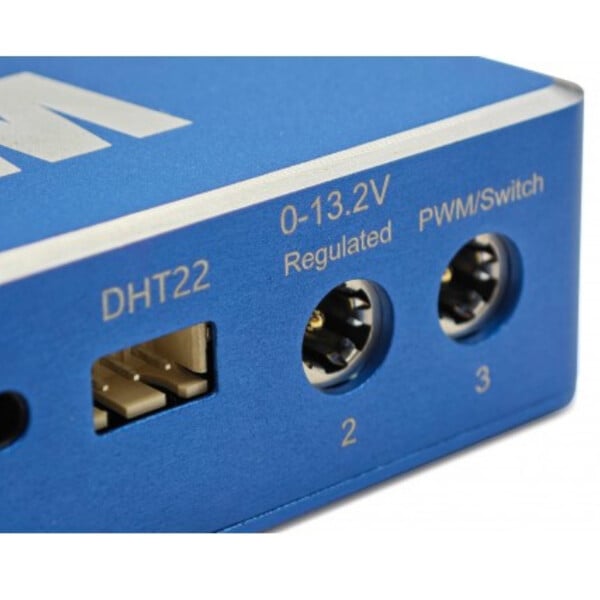

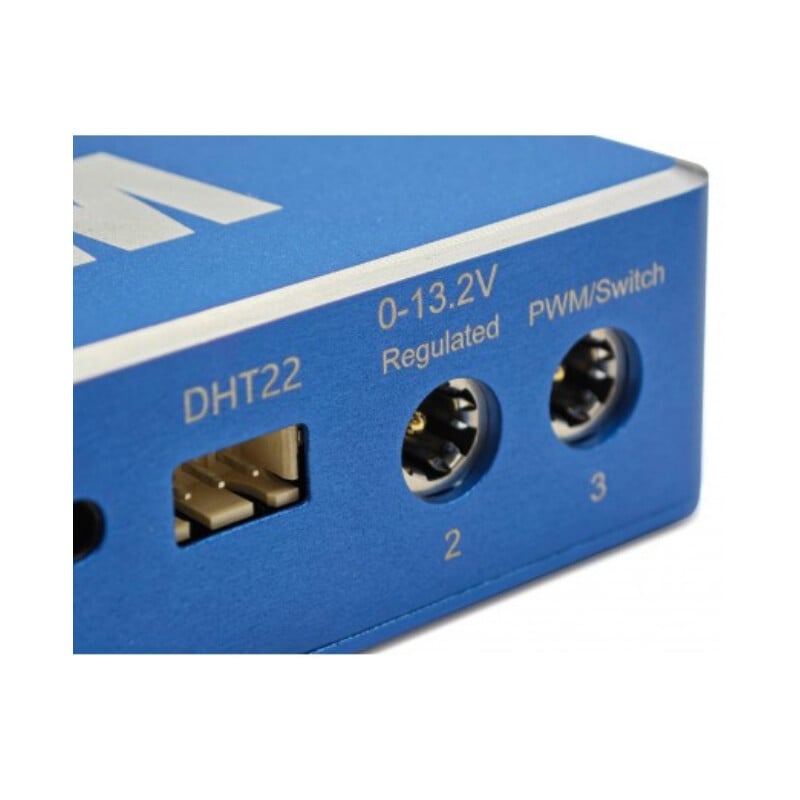

Three 12 V DC outputs:
- One adjustable output (5–13.2 V) for variable voltage requirements.
- One PWM-controlled output for intelligent control of dew heaters.
- One continuously active output.
External DC input via DC5525, compatible with standard 12 V supplies up to 10 A.
Integrated USB connectivity

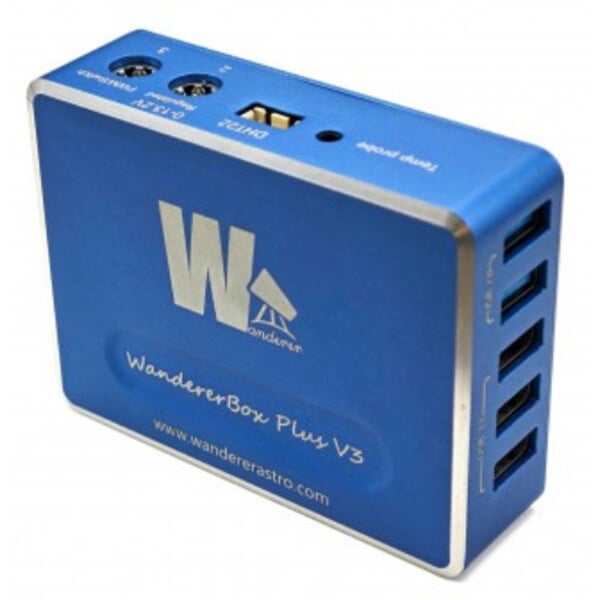

- Two USB 3.1 ports and three USB 2.0 ports with integrated 12 V→5 V step-down converter (up to 5 A in total).
- USB ports can be switched individually via software – ideal for targeted control of connected cameras and instruments.
Intelligent dew heater control

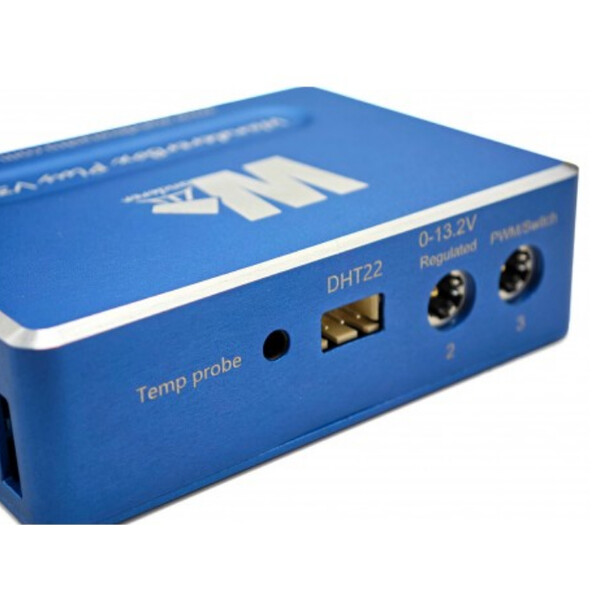

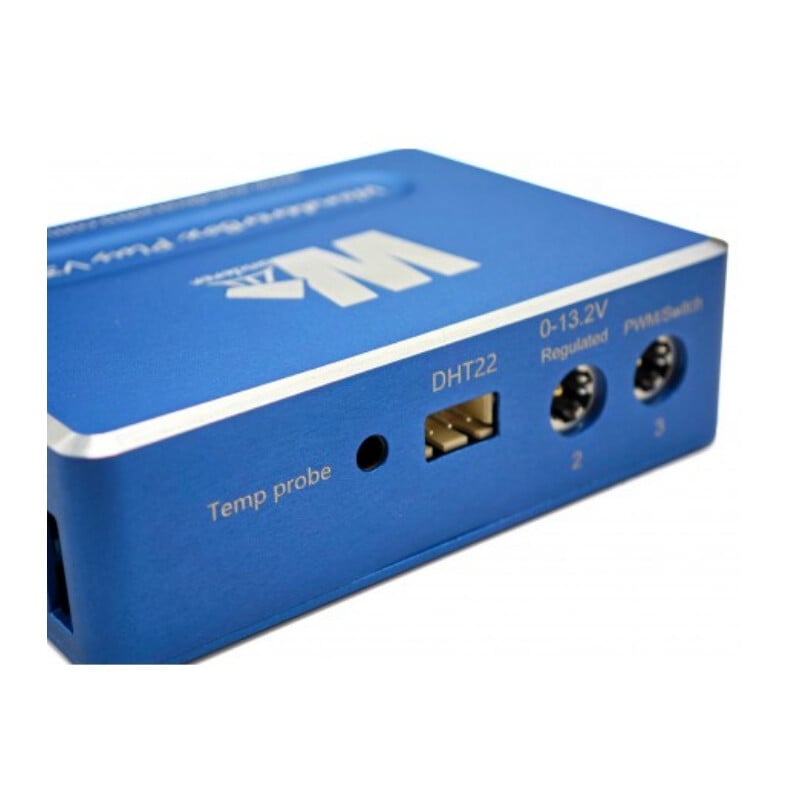

Integrated DHT22 sensor measures temperature and humidity
External temperature probe included for precise environmental monitoring
Multiple operating modes:
- Automatic (based on dew point calculation)
- Constant or manual for fine power adjustment
- PWM output can be converted to a conventional regulated output if required.
Safety and reliability
Comprehensive protection against:
- Short circuit
- Overcurrent
- Overvoltage
- Electrostatic discharge
Electronic circuit with electrophoretic protective coating against moisture and oxidation

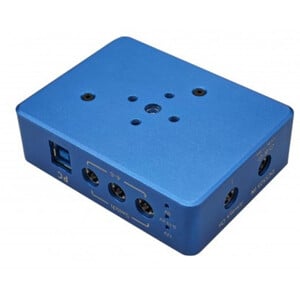

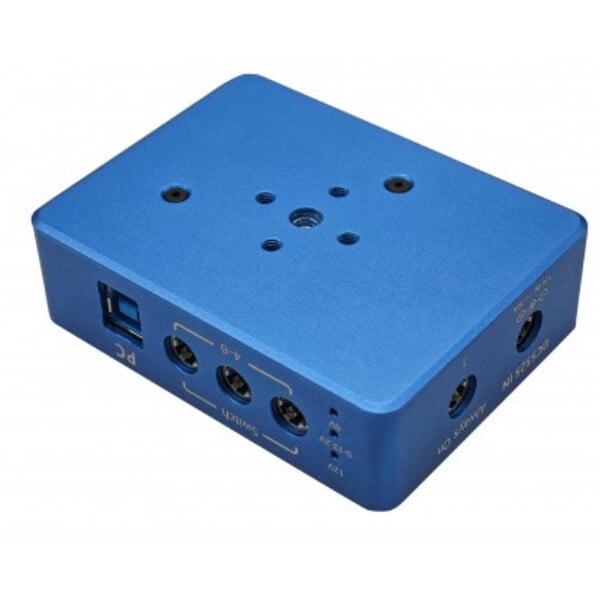

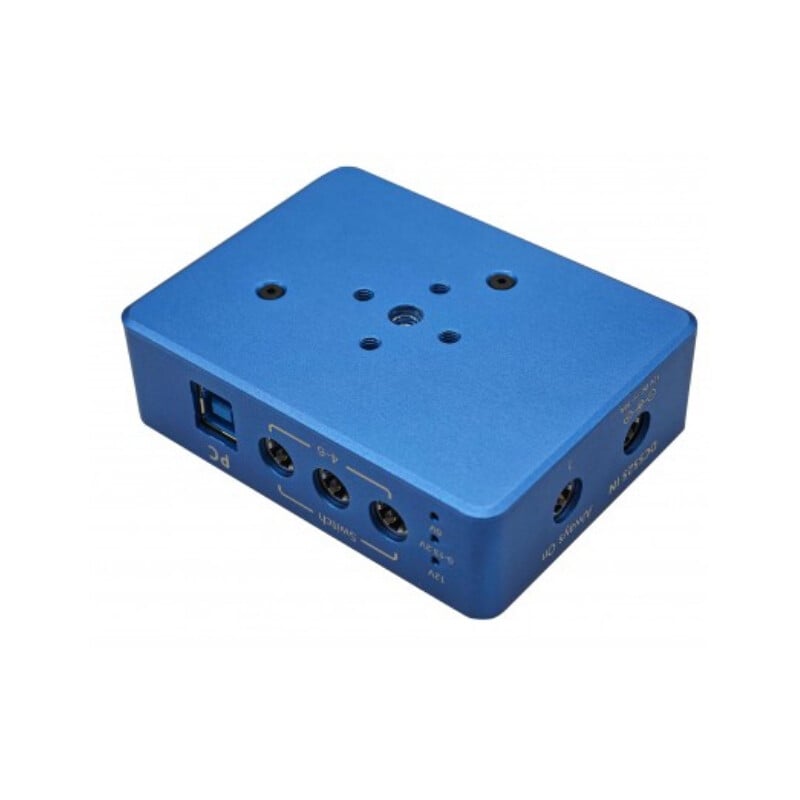

Mounting options: M6 and M4 threaded holes for easy mounting on prism rails and telescopes.

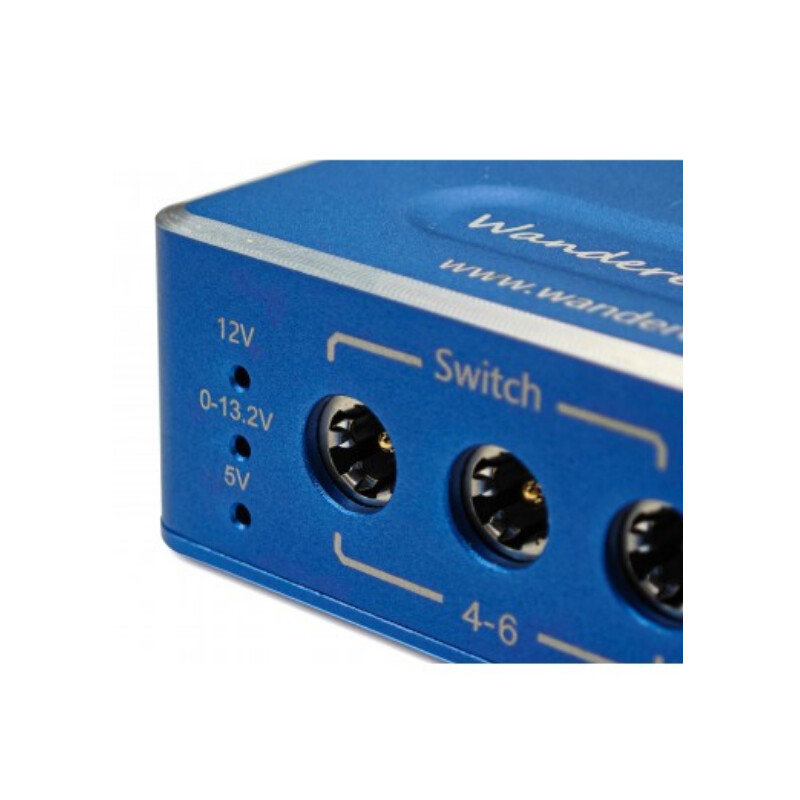

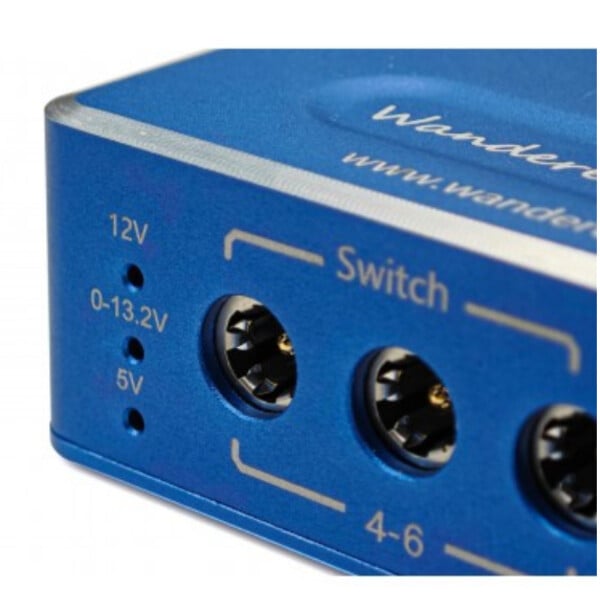

LED status indicators for each output provide a quick overview of the system.
