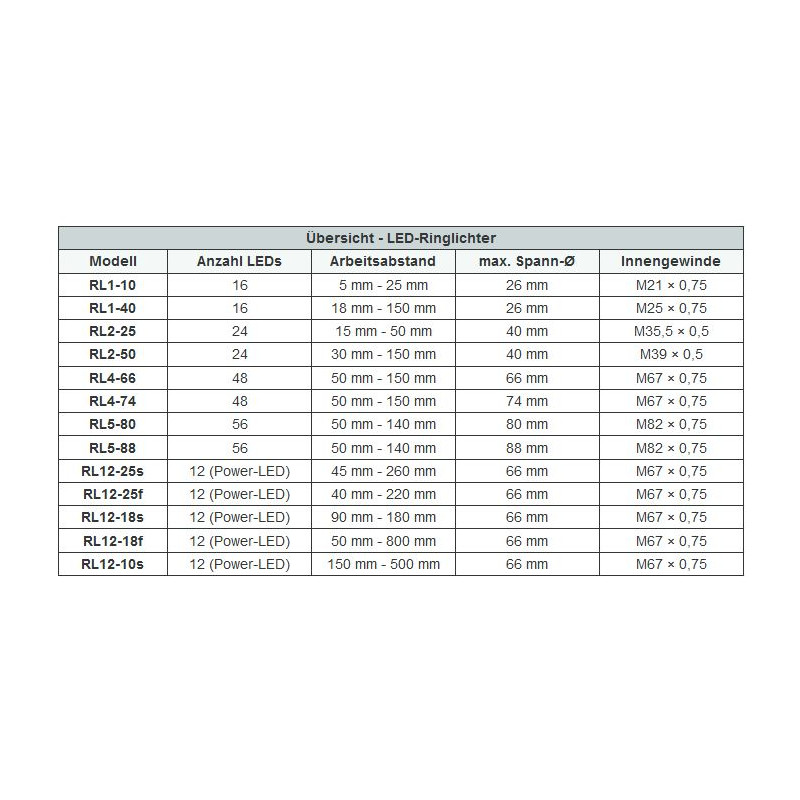

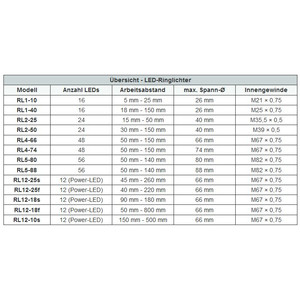

LED ring lights
A well-rounded solution in many sizes
Mini LED ring lights RL1 and RL2
The mini LED ring lights of the RL1 and RL2 series are used wherever there is little space available for lighting due to their compact dimensions. Despite this, these ring lights provide plenty of light, e.g. for camera applications or as lighting for production machines. Both series are available with two different nominal working distances, which is achieved by different LED installation angles.
LED ring lights RL4 and RL5
The RL4 and RL5 series are primarily designed as incident light illumination for microscopy. The working range of the ring lights is selected so that the focus is at the typical distance between the objective and the microscope stage of standard microscopes. Both series are available with two inner diameters, providing the right model for all common microscope types.
Power LED ring light RL12
The RL12 power LED ring light offers enormous brightness thanks to its twelve 3W LEDs and is suitable for applications with increased light requirements, e.g. in conjunction with high-speed cameras. Thanks to five different versions with different geometries, the perfect lighting can be found for both small and larger working distances.

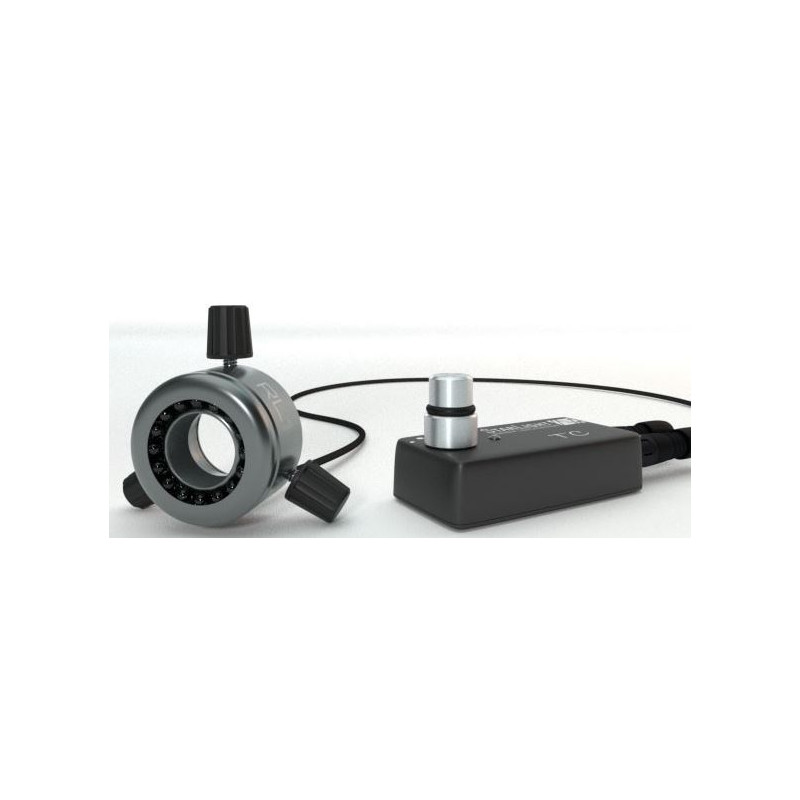

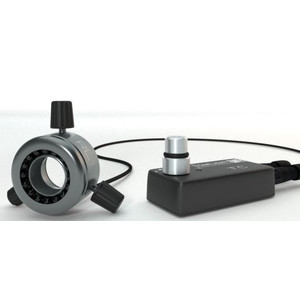

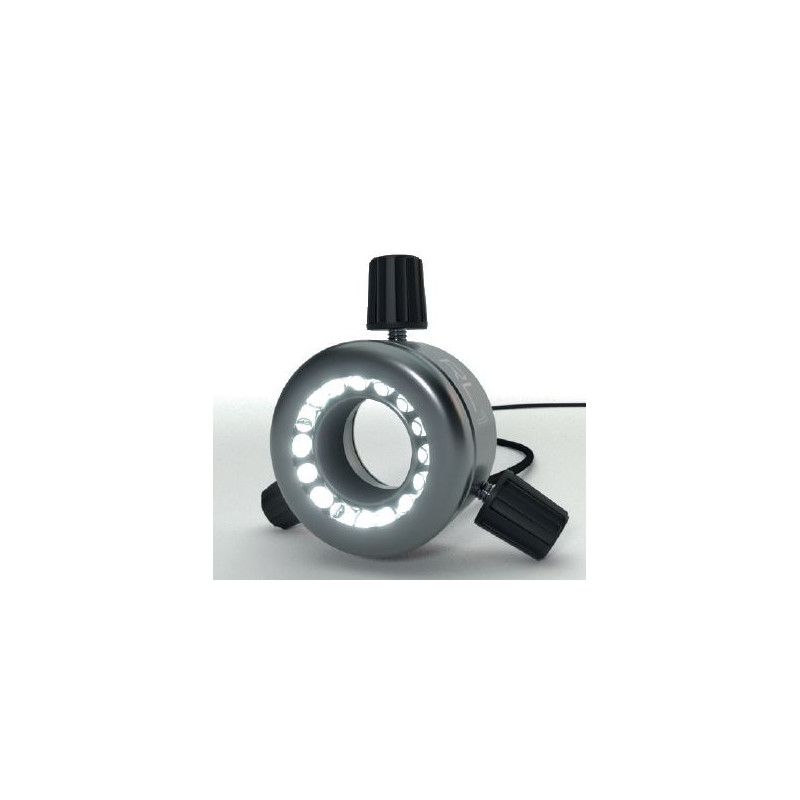

Mini LED ring light RL1-10
Compact LED ring light for working distances from 5 mm to 25 mm
The RL1-10 LED ring light is the perfect incident light for applications with cameras and lenses in industrial image processing. The high-quality, powerful LEDs provide homogeneous illumination throughout the entire working area.
Like all StarLight products, the RL1-10 ring light is characterised by high quality workmanship and ease of use.
Highlights
• Robust aluminium housing in a modern design
• Brightness adjustment between 0% and 100% with memory function
• Flicker-free light thanks to optimised, low-loss electronics
• Variable clamping diameter, adjustable with reduction rings
• Available in different light colours and colour temperatures
Technical
Working distance 5 mm - 25 mm
Optimum working distance approx. 10 mm
Illuminance (at 10 mm working distance) 130 klx
Light spot diameter (at 10 mm working distance) 14 mm
Number of LEDs 16
LED service life 50,000 hours (manufacturer's specification)

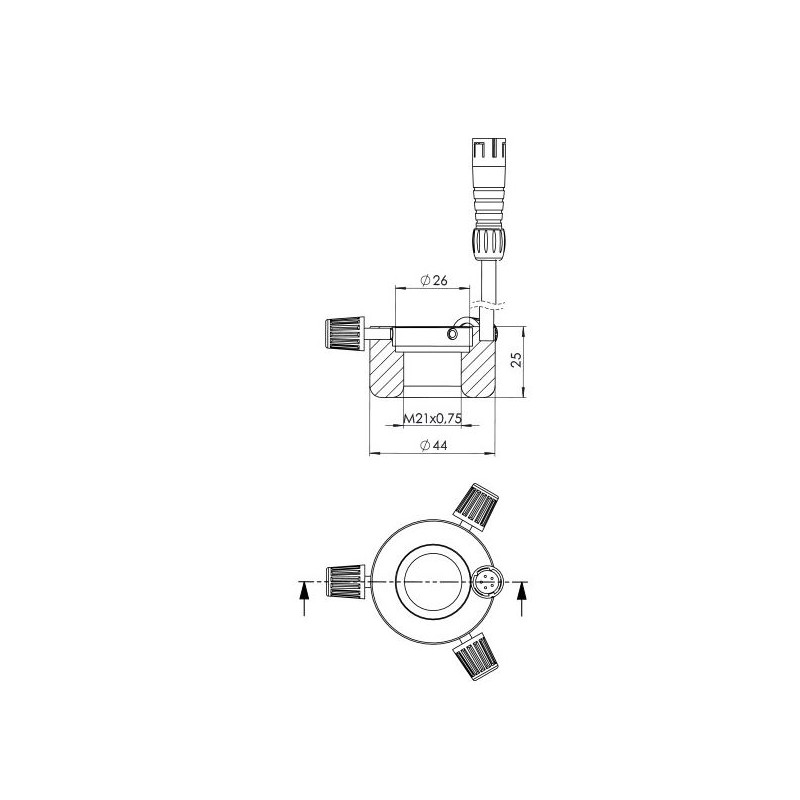

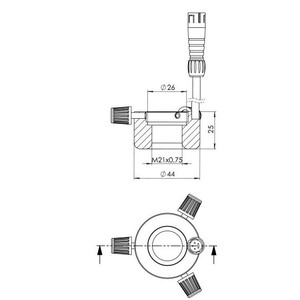

Height 25 mm
Outer diameter 44 mm
Inner diameter 20 mm
Clamping diameter max. 26 mm
Internal thread M21 × 0.75
Material: anodised aluminium Colour: titanium
Weight ring light approx. 60 g
Power supply input 100 - 240 V AC, 50 - 60 Hz
Output power supply 24 V DC, 1 A
Maximum power consumption 4 W
Control dimensions (L×W×H) 78 mm × 38 mm × 21 mm
LED ring light RL 1-10 UV 405
Technical
- Working distance 5 mm - 25 mm
- Optimal working distance approx. 10 mm
- Light spotdiameter (at 10 mm working distance) 14 mm
- Light colour UV 405
- Working distance 5 mm - 25 mm
- Optimal working distance approx. 10 mm
- Light spotdiameter (at 10 mm working distance) 14 mm
- Light colour IR (880 nm)
- Number of LEDs16
- Height 25 mm
- Outer diameter 44 mm
- Inner diameter 20 mm
- Clamping diameter max. 26 mm
- Internal thread M21 × 0.75
- Material: anodised aluminium
- Colour titanium
- Weight ring light approx. 60 g
- Power supplyinput 100 - 240 V AC, 50 - 60 Hz
- Output power supply 24 V DC, 1 A
- Maximum power consumption 4 W
- Control dimensions (L×W×H) 78 mm × 38 mm × 21 mm
- Number of LEDs16
- Height 25 mm
- Outer diameter 44 mm
- Inner diameter 20 mm
- Clamping diameter max. 26 mm
- Internal thread M21 × 0.75
- Material: anodised aluminium
- Colour titanium
- Weight ring light approx. 60 g
- Power supplyinput 100 - 240 V AC, 50 - 60 Hz
- Output power pack 24 V DC, 1 A
- Maximum power consumption 4 W
- Control dimensions (L×W×H) 78 mm × 38 mm × 21 mm
