LED ring lights
A well-rounded solution in many sizes
Mini LED ring lights RL1 and RL2
The mini LED ring lights of the RL1 and RL2 series are used wherever there is little space available for lighting due to their compact dimensions. Despite this, these ring lights provide plenty of light, e.g. for camera applications or as lighting for production machines. Both series are available with two different nominal working distances, which is achieved by different LED installation angles.
LED ring lights RL4 and RL5
The RL4 and RL5 series are primarily designed as incident light illumination for microscopy. The working range of the ring lights is selected so that the focus is at the typical distance between the objective and the microscope stage of standard microscopes. Both series are available with two inner diameters, providing the right model for all common microscope types.
Power LED ring light RL12
The RL12 power LED ring light offers enormous brightness thanks to its twelve 3W LEDs and is suitable for applications with increased light requirements, e.g. in conjunction with high-speed cameras. Thanks to five different versions with different geometries, the perfect lighting can be found for both small and larger working distances.

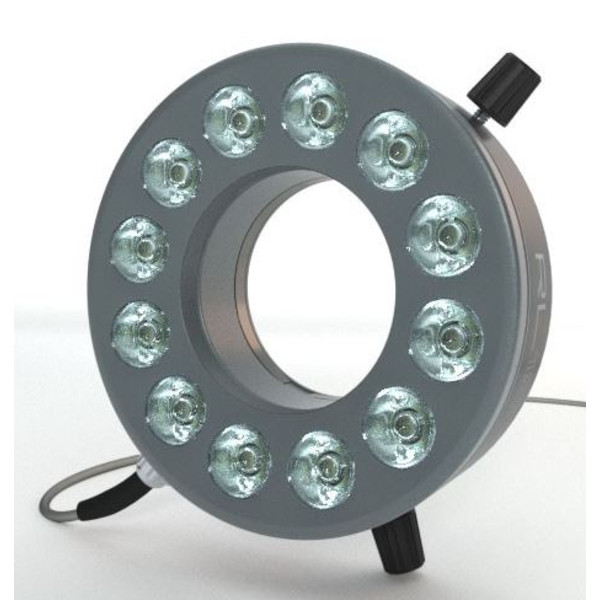

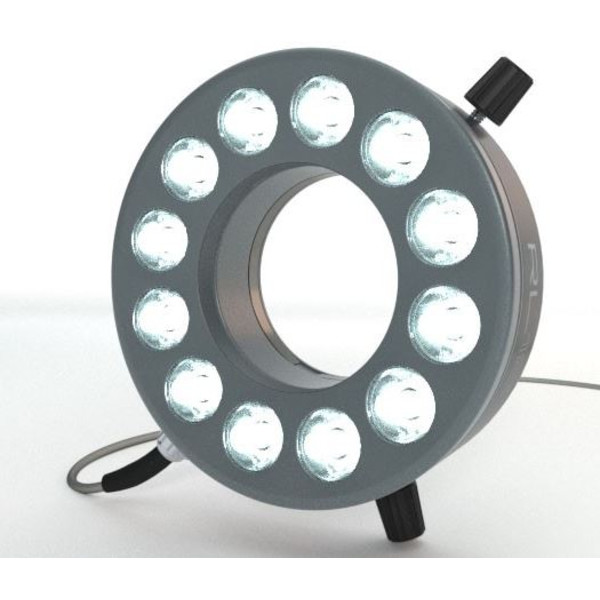

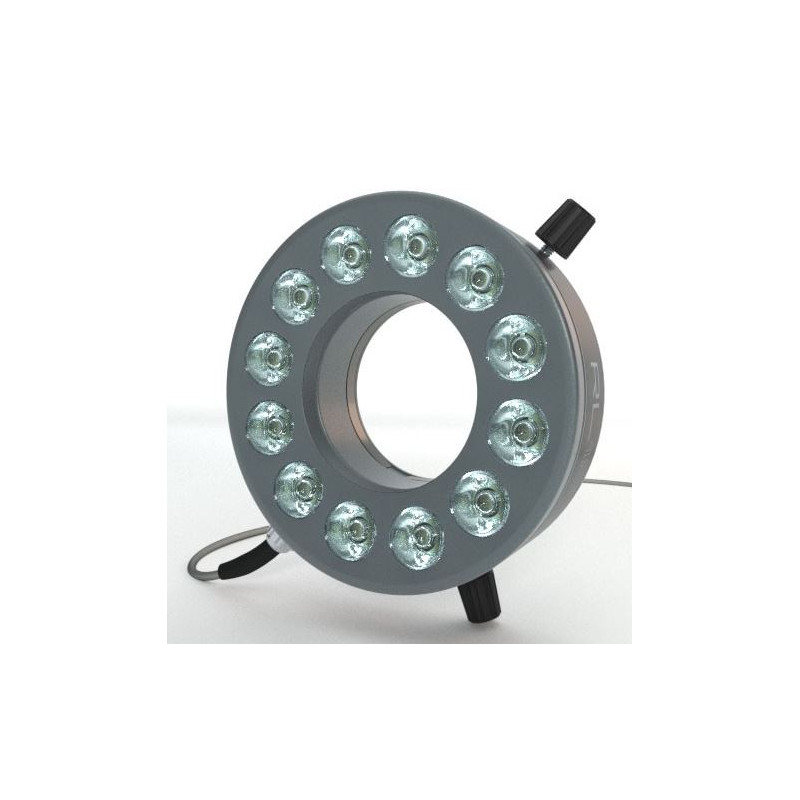

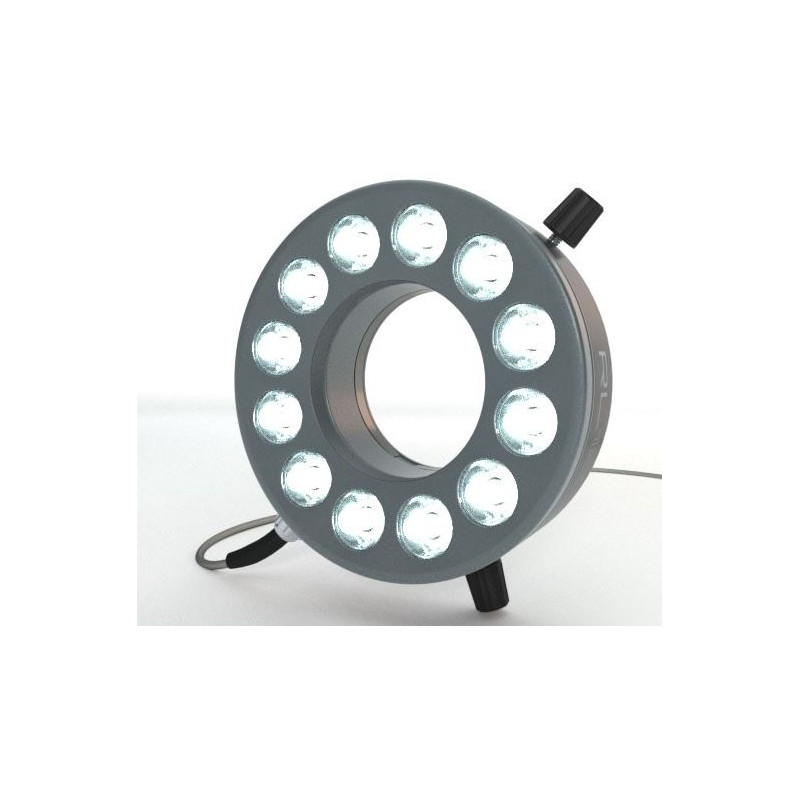

LED ring light RL12-10s-24V
The extremely bright and versatile RL12-24V high-power LED ring light was developed for lighting tasks on machines and camera systems. The 12 high-quality power LEDs of the ring light, which are housed in a compact metal housing, have a long service life and are characterised by their high light intensity.
The RL12-24V LED ring light is available in many versions, allowing every user to find the right lighting in terms of brightness, working distance, light colour and optics. The modular design allows the LED modules to be replaced at the factory.
With the help of extensive accessories, the ring light can also be adapted to individual needs and requirements. For example, there is a polarisation filter and various reduction rings for adjusting the inner diameter, allowing the LED power ring light to be attached to many instruments such as cameras or microscopes.
- Energy-saving and environmentally friendly LED technology
- Connection via cable to existing 24V power source
- Noiseless and vibration-free thanks to passive cooling without fan
ATTENTION: The connection cable is not included in the scope of delivery.
You will find the appropriate connection cable under Accessories!
Technical
- Lighting values depending on selected model, see below
- Number of LEDs 12× 3 W power LEDs
- Maximum power consumption 15 W
- Operating voltage 24 V DC
- Working distance approx. 150 mm - 550 mm
- Optimal working distance approx. 260 mm

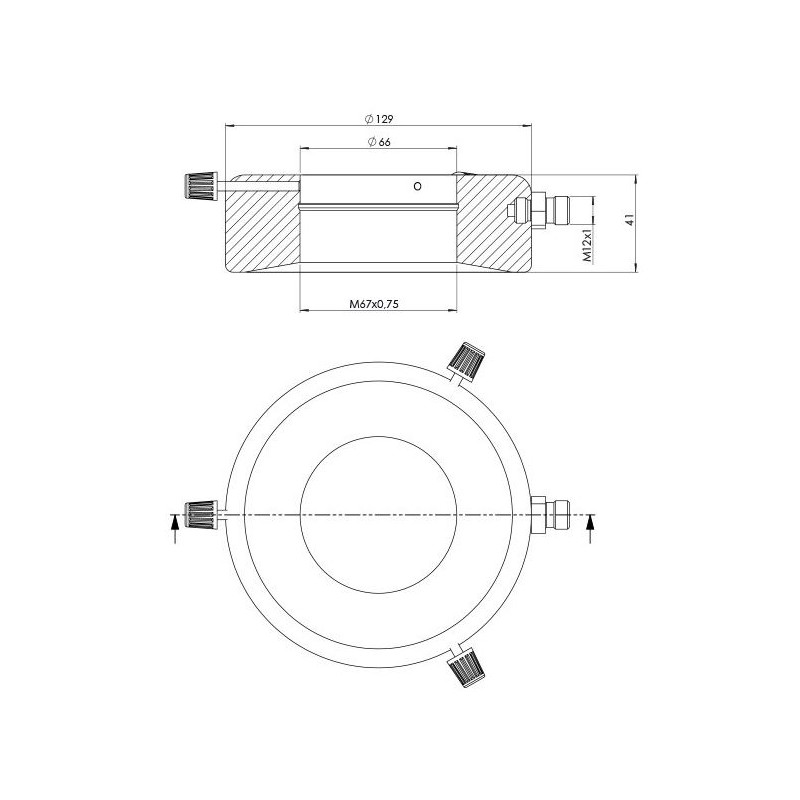

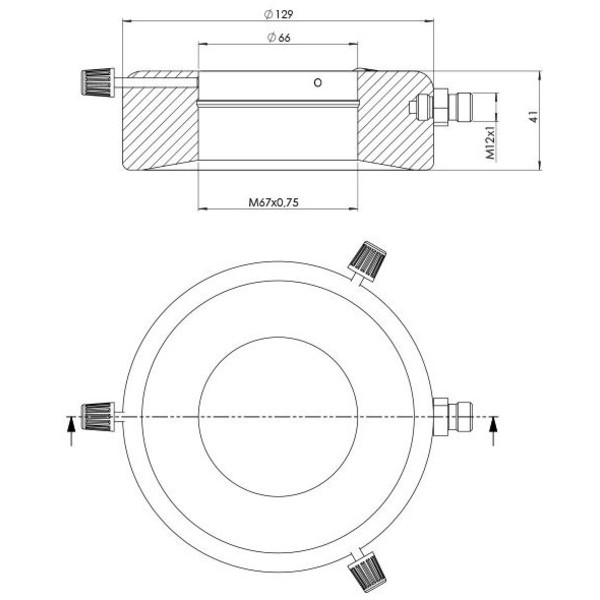

- Thread M67 × 0.75
- Length of supply cable approx. 0.8 m
- Outer Ø ring light 130 mm
- Height of ring light 42 mm
- Inner diameter of ring light 66 mm
- Clamping diameter max. 66 mm
- LED service life 50,000 hours (manufacturer's specification)
- Material: anodised aluminium
- Colour titanium and black
- Light control weight approx. 50 g
- Weight of ring light approx. 720 g
- Dimensions with packaging 320 mm × 205 mm × 95 mm
- Weight with packaging approx. 900 g
Light colour: red (625 nm)
