LED ring lights
A well-rounded solution in many sizes
Mini LED ring lights RL1 and RL2
The mini LED ring lights of the RL1 and RL2 series are used wherever there is little space available for lighting due to their compact dimensions. Despite this, these ring lights provide plenty of light, e.g. for camera applications or as lighting for production machines. Both series are available with two different nominal working distances, which is achieved by different LED installation angles.
LED ring lights RL4 and RL5
The RL4 and RL5 series are primarily designed as incident light illumination for microscopy. The working range of the ring lights is selected so that the focus is at the typical distance between the objective and the microscope stage of standard microscopes. Both series are available with two inner diameters, providing the right model for all common microscope types.
Power LED ring light RL12
The RL12 power LED ring light offers enormous brightness thanks to its twelve 3W LEDs and is suitable for applications with increased light requirements, e.g. in conjunction with high-speed cameras. Thanks to five different versions with different geometries, the perfect lighting can be found for both small and larger working distances.

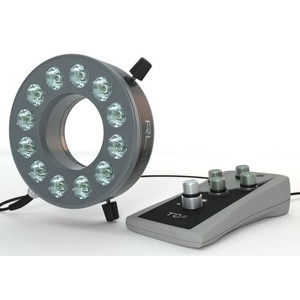

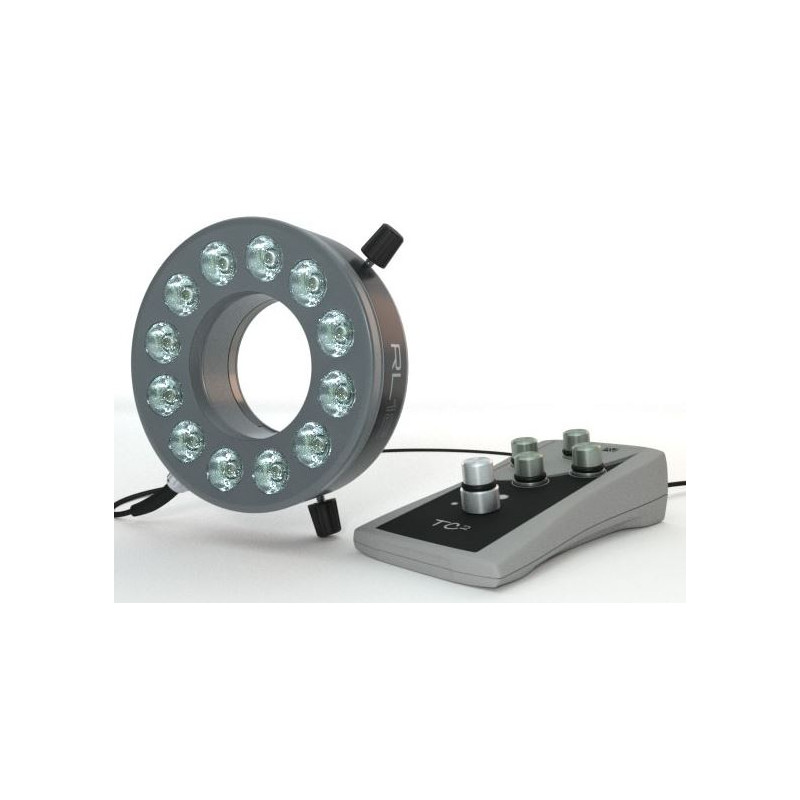

High Power LED Ring Light RL12
The extremely bright and versatile High Power LED Ring Light RL12 was developed for a wide range of applications in microscopy, production and industrial image processing. The 12 high-quality power LEDs of the ring light, which are housed in a compact metal housing, have a long service life and are characterised by their high light intensity. The RL12 LED ring light is available in many versions, allowing every user to find the right lighting in terms of brightness, working distance, light colour and optics. The modular design allows the LED modules to be replaced at the factory. With the help of extensive accessories, the ring light can also be adapted to individual needs and requirements. For example, there is a polarisation filter and various reduction rings for adjusting the inner diameter, allowing the LED power ring light to be attached to many instruments such as cameras or microscopes.
- Energy-saving and environmentally friendly LED technology
- Very balanced brightness adjustment from 0% to 100% via a practical table control with memory function for storing the last brightness setting
- Robust metal housing with high protection class
- Noise-free and vibration-free thanks to passive cooling without fan

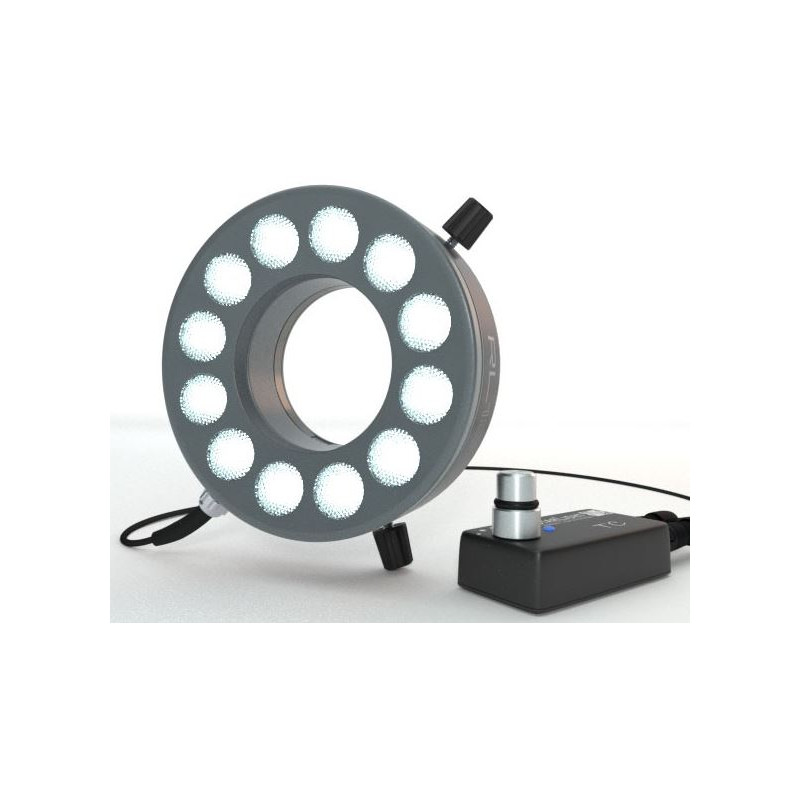

Scope of delivery:
- High power LED ring light RL12
- LED table controller TC-1000
- Operating instructions
The connection cable is permanently installed.
RL12-18f A
- Working distance 50 mm - 800 mm
- Optimum working distance approx. 140 mm
- Light color amber (590 nm)
- Number of LED 12 × Power-LED (Flood)
- LED life span 50.000 h (according to manufacturer)

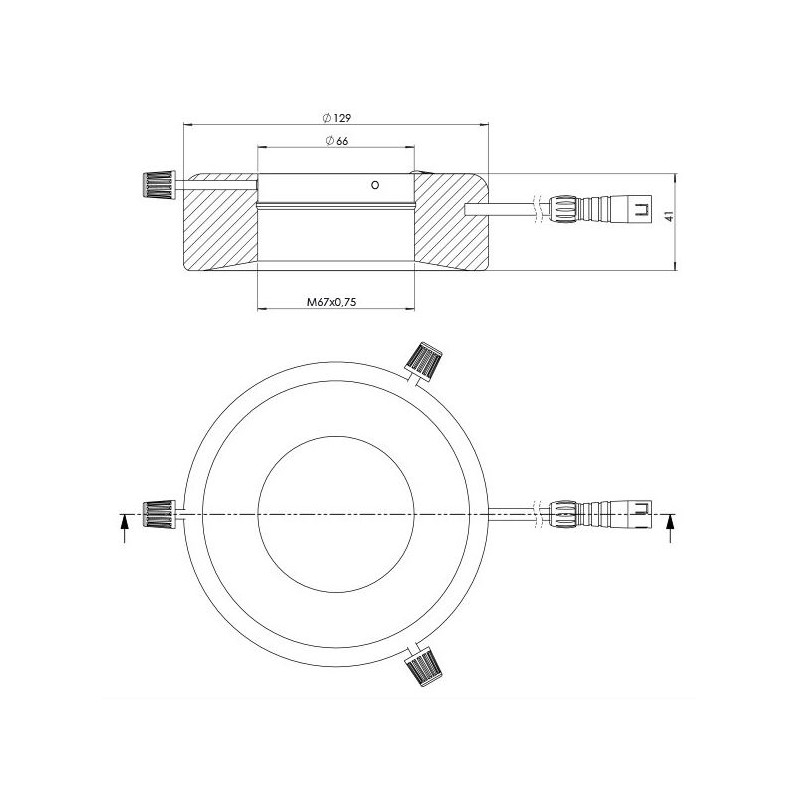

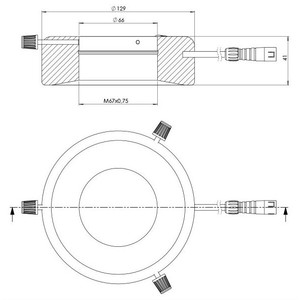

- Height 42 mm
- Outer diameter 130 mm
- Inner diameter 66 mm
- Clamping diameter max. 66 mm
- Inner thread M67 × 0,75
- Material anodized aluminium
- Color titanium and black
- Weight Ring Light approx. 750 g
- Input power supply 100 - 240 V AC, 50 - 60 Hz
- Output power supply 24 V DC, 1 A
- Power consumption approx. 15 W
- Dimensions control unit (l×w×h) 78 mm × 38 mm × 21 mm
Light colour: UV (365 nm)
