LED ring lights
A well-rounded solution in many sizes
Mini LED ring lights RL1 and RL2
The mini LED ring lights of the RL1 and RL2 series are used wherever there is little space available for lighting due to their compact dimensions. Despite this, these ring lights provide plenty of light, e.g. for camera applications or as lighting for production machines. Both series are available with two different nominal working distances, which is achieved by different LED installation angles.
LED ring lights RL4 and RL5
The RL4 and RL5 series are primarily designed as incident light illumination for microscopy. The working range of the ring lights is selected so that the focus is at the typical distance between the objective and the microscope stage of standard microscopes. Both series are available with two inner diameters, providing the right model for all common microscope types.
Power LED ring light RL12
The RL12 power LED ring light offers enormous brightness thanks to its twelve 3W LEDs and is suitable for applications with increased light requirements, e.g. in conjunction with high-speed cameras. Thanks to five different versions with different geometries, the perfect lighting can be found for both small and larger working distances.
LED ring light RL5-80
Dimmable LED ring light for microscope lenses up to Ø80 mm in various light colours

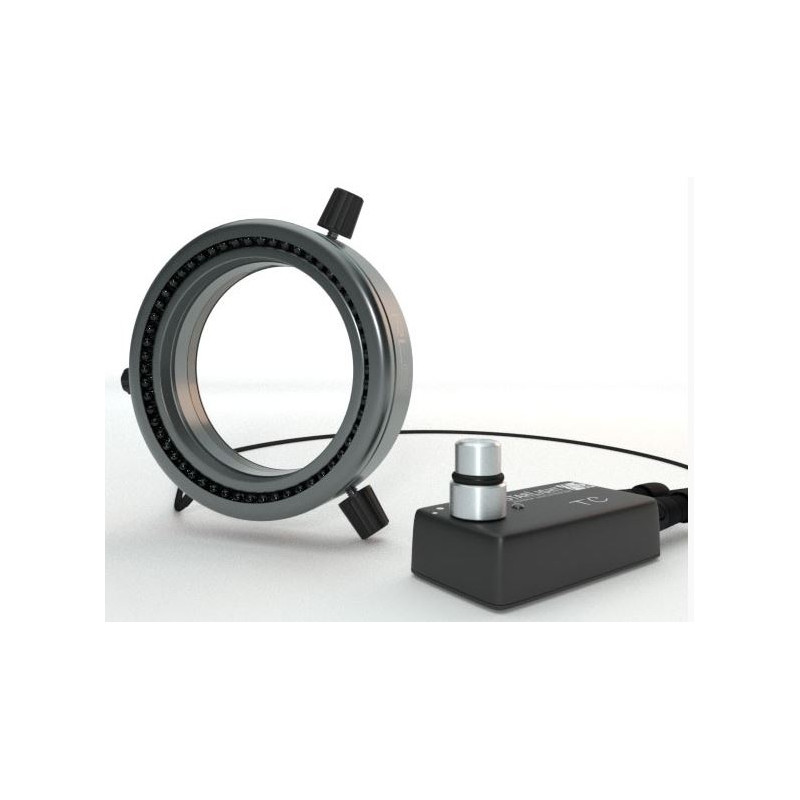

Like all StarLight products, the RL5 is characterised by the highest quality in materials and workmanship. Electrical and mechanical components are perfectly matched, guaranteeing professional users the best possible light and simple, safe use. The RL5 LED ring light was developed primarily as incident light for microscopy. It can be attached to lenses with a clamping screw or screwed on thanks to the internal thread. It is also possible to adjust the inner diameter using reduction rings. The brightness of the RL5-80 can be adjusted between 0% and 100% using a rotary knob on the separate table controller. Thanks to the optimised electronics, even at low brightness settings, the illumination is completely flicker-free and homogeneous. These constant lighting conditions also make the LED ring lights suitable for use as lighting for photo and video recordings. There are no unwanted streaks on the images.
Scope of delivery:
- RL5
- Table controller
- Plug-in power supply
Technical
Lighting values depend on the selected model!
- Number of LEDs 56
- Maximum power consumption 8 W
- Working distance approx. 50 mm - 140 mm
- Optimal working distance approx. 75 mm

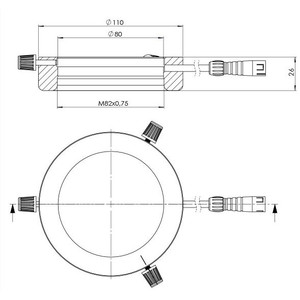

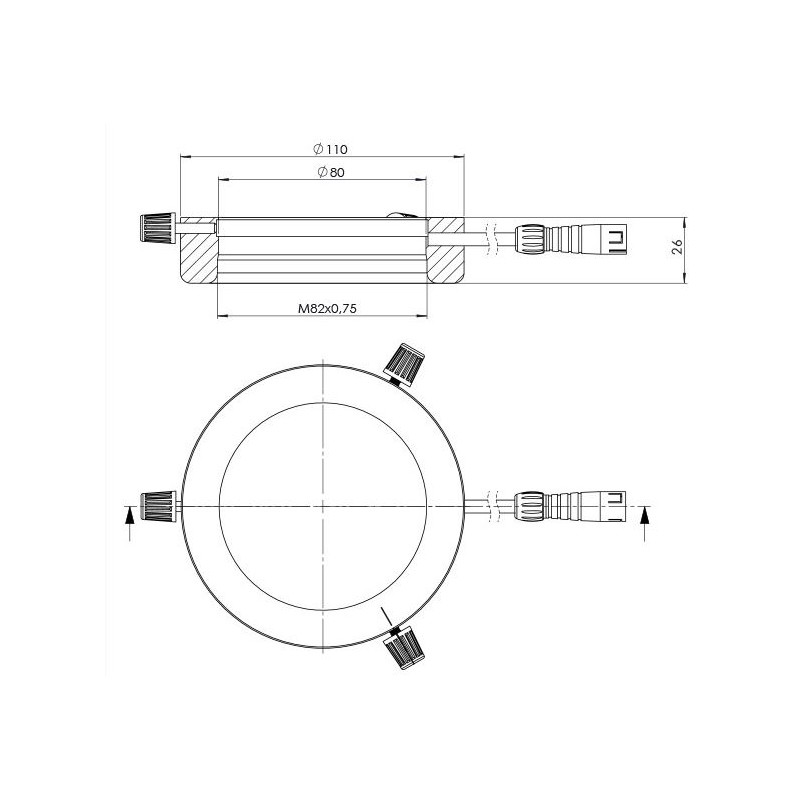

- Control dimensions (LxWxH) 78 mm × 38 mm × 21 mm
- Thread M82 × 0.75
- Length of supply cable approx. 0.8 m
- Outer Ø ring light 110 mm
- Height of ring light 25.5 mm
- Inner diameter of ring light 80 mm
- Clamping Ø max. 80 mm with RL5 80 and 88 mm with RL5 88
- LED service life 50,000 hours (manufacturer's specification)
- Height 6 mm
- Material: anodised aluminium
- Colour titanium
- Light control weight approx. 50 g
- Weight ring light approx. 220 g
- Power pack input (EU|UK|US) 100 - 240 V AC, 50/60 Hz
- Power supply output 24 V DC, 1 A
- Power pack cable length approx. 1.4 m
- Dimensions with packaging 255 mm × 155 mm × 90 mm
- Weight with packaging approx. 570 g
- Outer diameter 110 mm
- Internal thread M82 × 0.75
- Controls dimensions (L × W × H) 78 mm × 38 mm × 21 mm
Light colour: UV (365 nm)
