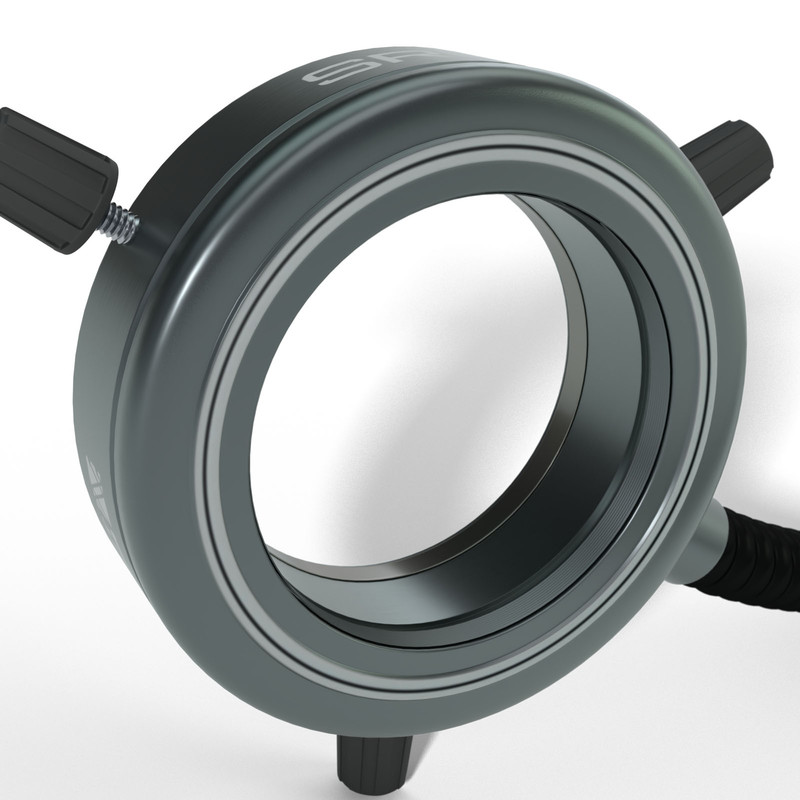

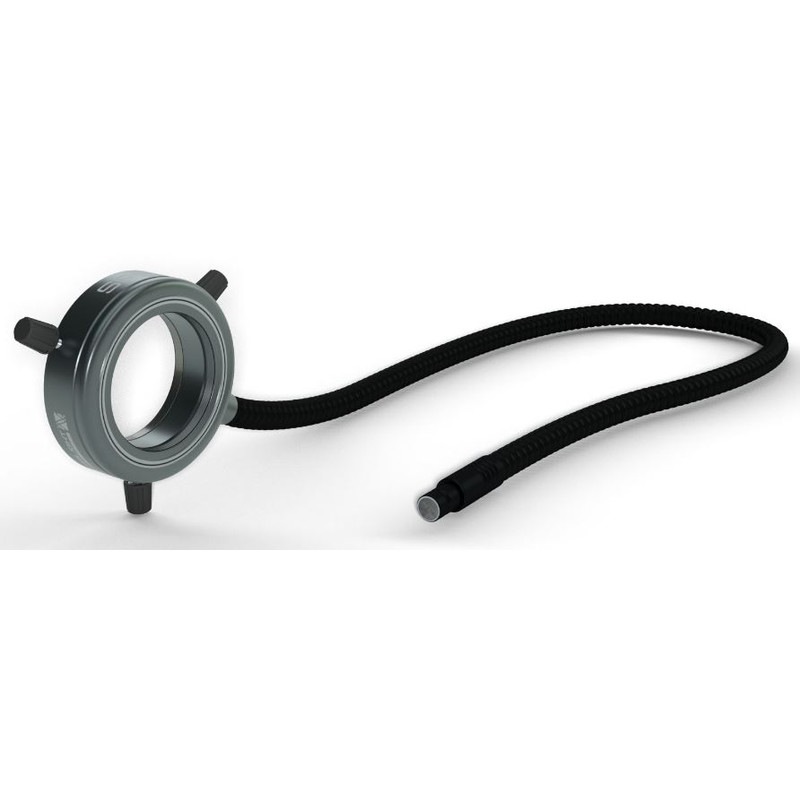

Fibre optic split ring light SRL 6
Split ring light for reflected light microscopy
The fibre optic split ring light, in combination with StarLight cold light sources, provides optimal lighting for camera or microscopy applications. Thanks to the use of high-quality glass fibres and careful processing under strict quality control, the fibre optic ring light delivers very homogeneous light. The supply cable is very flexible. Due to continuously improved manufacturing methods, the light conduction is virtually loss-free. The fibre optic ring light can be securely fixed to the objective using locking screws.
- Nominal working distance approx. 60 mm
- Working distance approx. 20 - 150 mm
- Ø light guide connection 15 mm (with adaptors for SCHOTT version)
- Ø active light conductor 9 mm
- Length of supply cable 1000 mm
- Outer Ø ring light 92 mm
- Height of ring light 26 mm
- Clamping Ø max. 66 mm
- Height 25 mm
- Material: anodised aluminium
- Colour: black
- Active light guide diameter 9 mm
- Supply cable 1,000 mm
- Inner diameter 66 mm
- Outer diameter 92 mm
- Clamping diameter 66 mm
