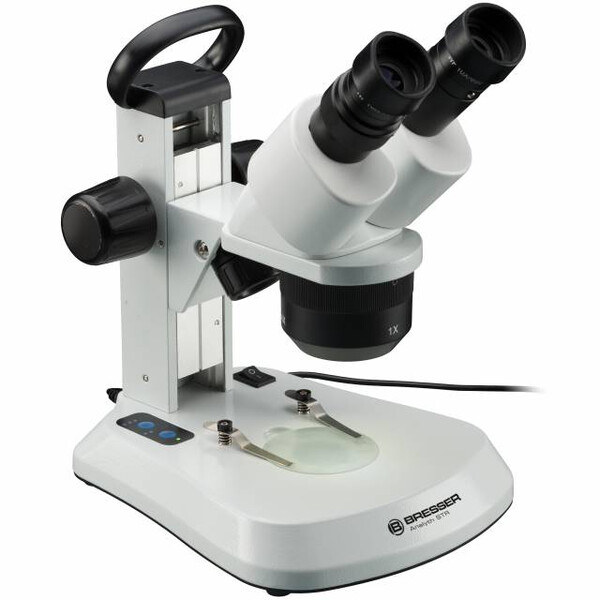

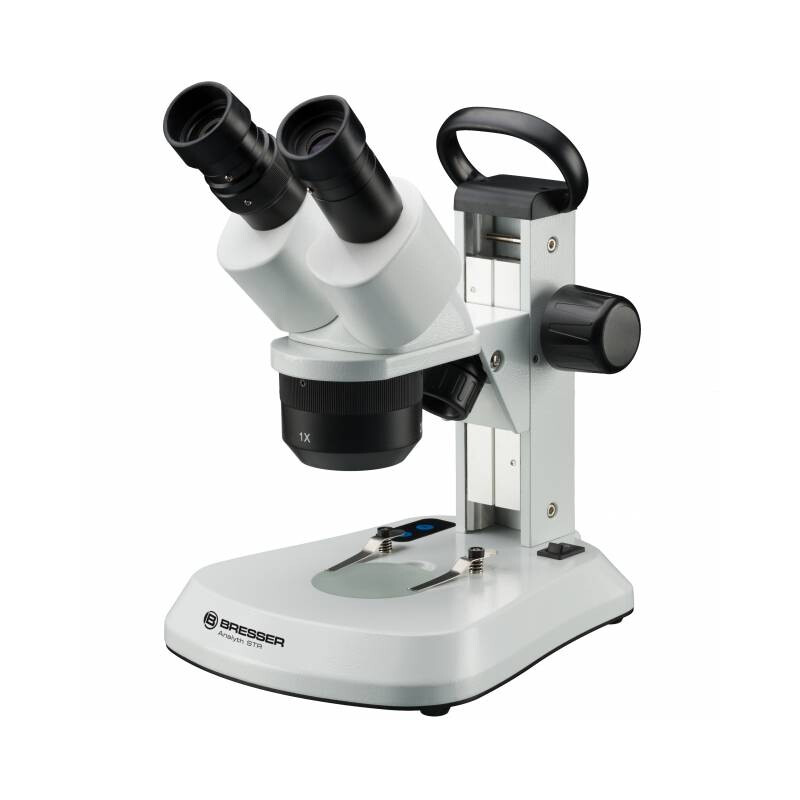

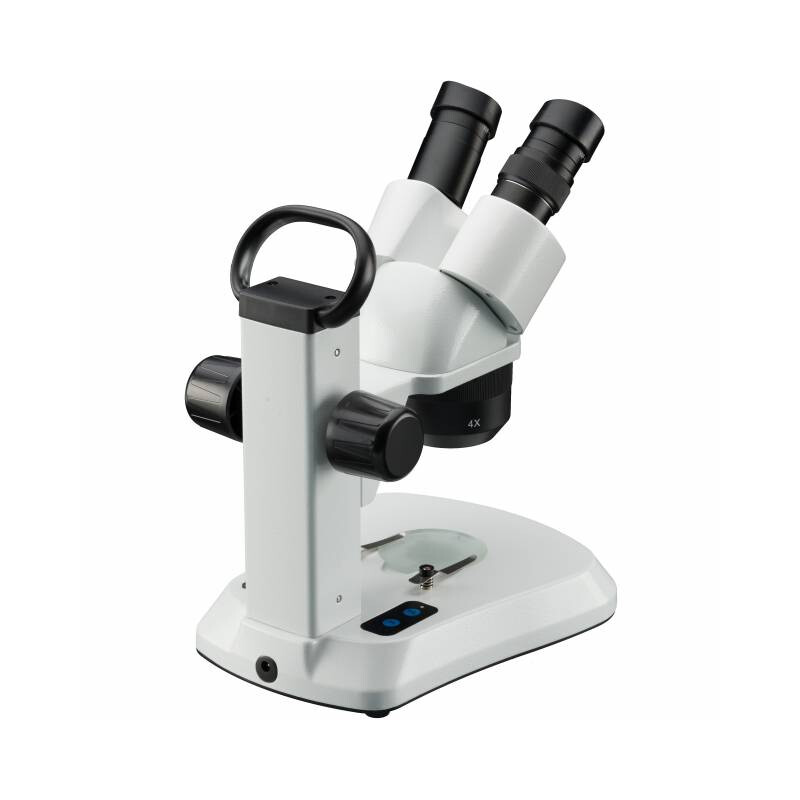

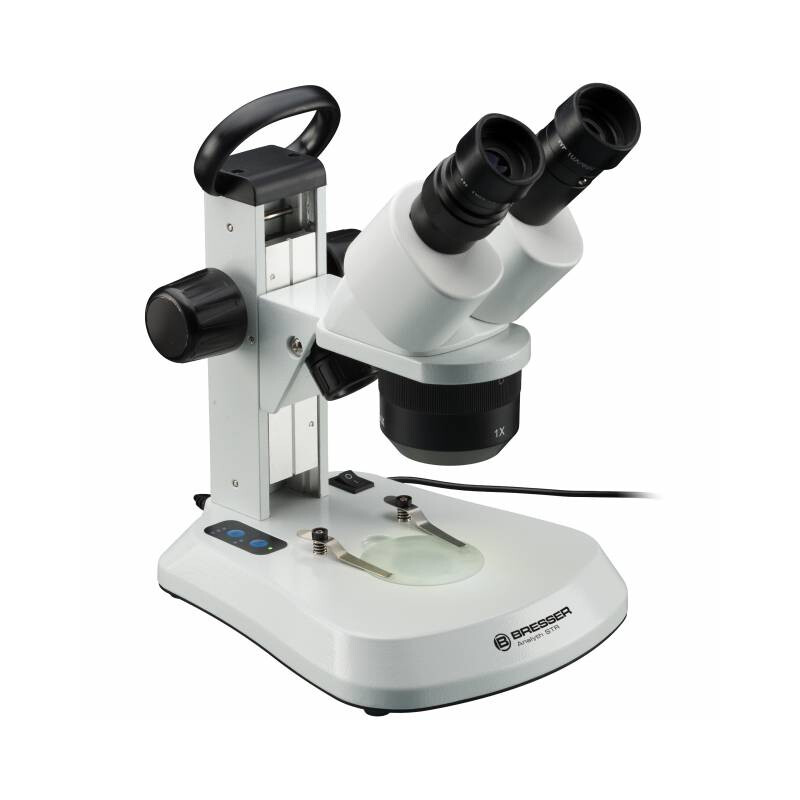

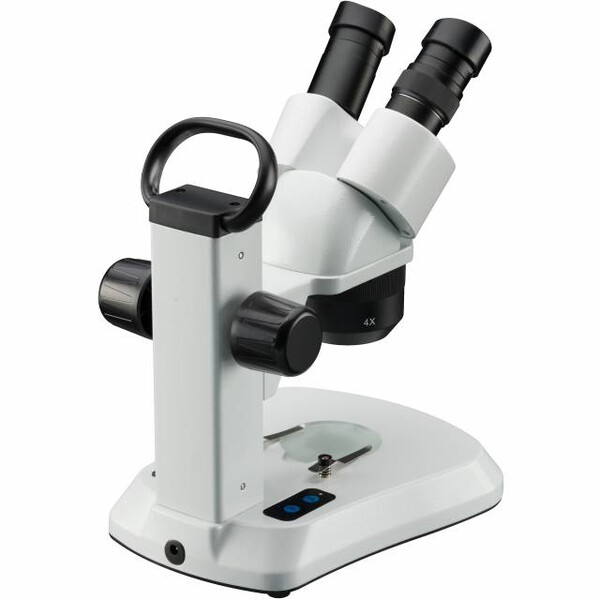

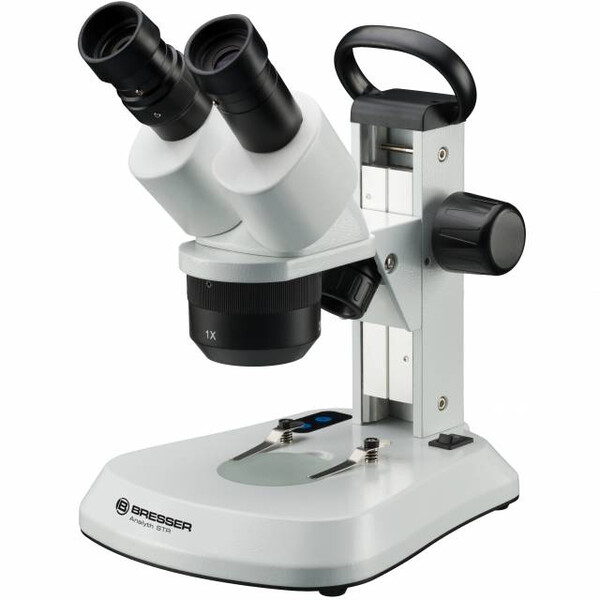

Bresser Analyth STR
The Analyth STR has 3 different objective magnifications, which can be easily changed by turning the lens. This allows the magnifications 10x, 20x and 40x to be changed directly. The stereo design shows structured objects particularly vividly and three-dimensionally. The low, 10x initial magnification is particularly suitable for working with children. This allows objects up to 20 mm in size to be viewed in their entirety. The STR analyzer is therefore particularly versatile. It is suitable for insects, plants, minerals and much more, and can be used for hobby, school and professional applications. The stereo microscope can be used for quality control, in horticulture and agriculture, for hydrology and much more.
The eye relief and diopter adjustment are individually adjustable. The eyepieces have a large field of view of 20 mm. They are equipped with removable rubber eyecups and are secured against removal.
The microscope can be powered either by the power pack or by 3 batteries (not included). This makes it mobile, for example for use outdoors in the garden or on an excursion.
FEATURES
- Microscope with 3 pairs of lenses, lens magnifications 10x; 20x; 40x
- Wide-field eyepieces with eyepiece cups and 20 mm field of view
- Bright, economical LED lighting, angle adjustable
- Lighting for reflected and transmitted light can be switched separately
- Dimmer via membrane keys with status display
- Two object plates (black/white or matt glass) with specimen clips

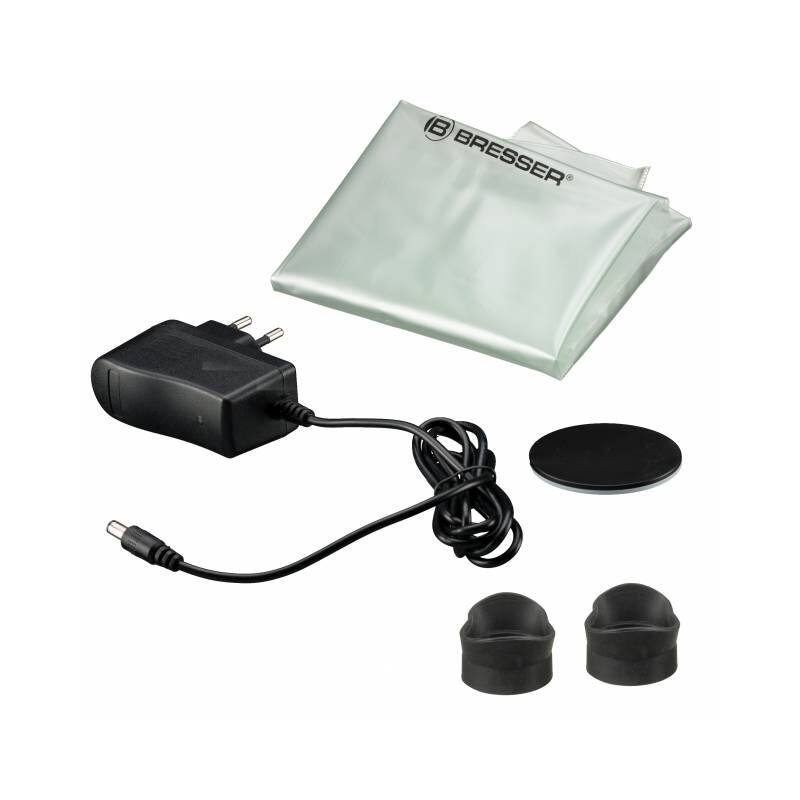

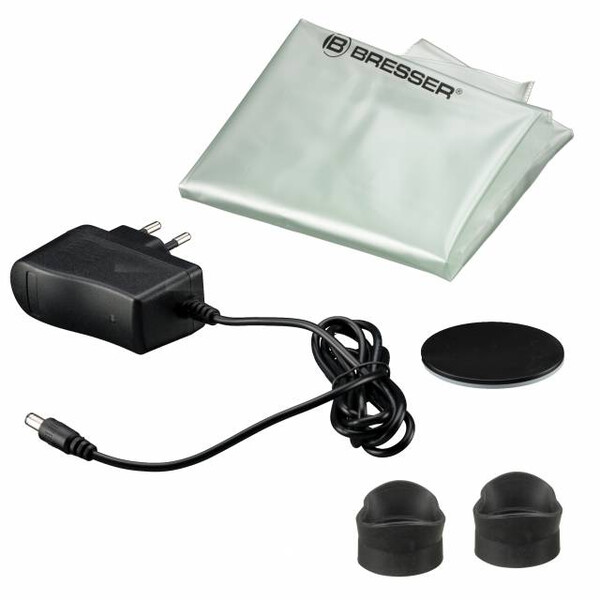

SCOPE OF DELIVERY
- Microscope with 3 magnifications, 10x; 20x; 40x
- Metal stand with LED lighting, power supply and battery compartment
- 2 eyepieces with rubber eyecups
- Glass object plate
- Plastic object plate (black/white)
- dust cover
- Instruction manual

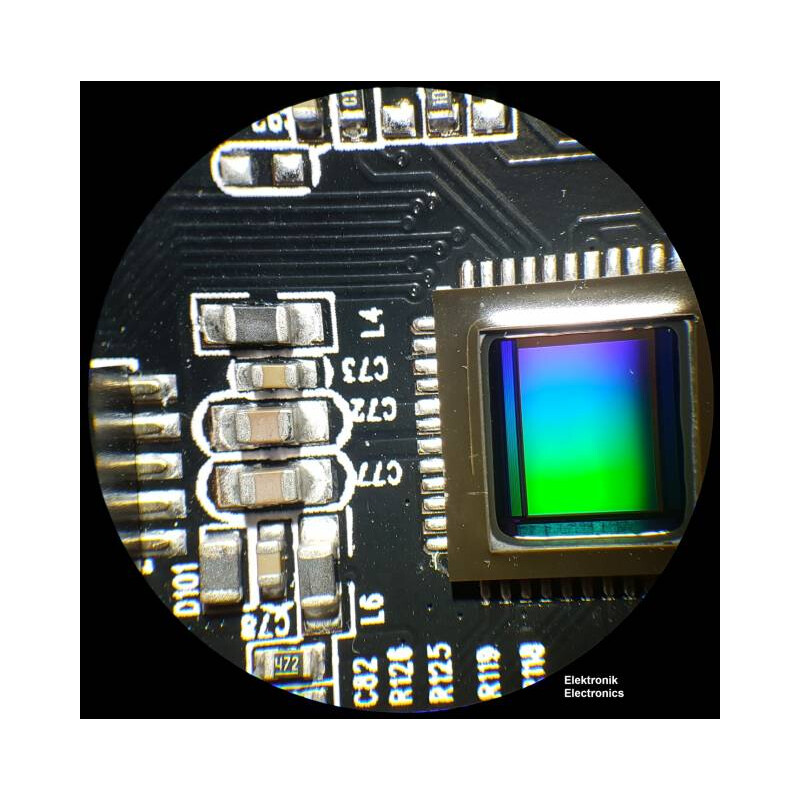

Thanks to the included Full HD eyepiece camera, you can save images and videos of your observations directly to your PC in Full HD resolution. Simply use the MikrOkular Full HD eyepiece camera directly instead of the eyepiece. This allows you to easily document your microscope observations with a single click or share them with others.
TECHNICAL DATA
- Field of application: Biology Botany Entomology Mineralogy Teaching
- Target group: Beginners Advanced users Professional users
- Product family: Reflected and transmitted light microscope
OPTICAL FEATURES
- Optical design: Stereo
- Diopter adjustment: yes
ELECTRONICS, HARDWARE & SOFTWARE
- Power supply: 220/240V power pack; 1.5V batteries
- Lighting: reflected/transmitted light
- Dimmer: Illumination dimmer and switch for reflected and transmitted light
GENERAL TECHNICAL DATA
- Colour: white
- Transportability: good
- Eyepiece mount: Plug-in diameter 30.5 mm
- Eyepiece cups: rubber eyepiece cups, fixed
- Viewing: Binocular
- Minimum interpupillary distance: 50 mm
- Maximum interpupillary distance: 77 mm
- Max. object height: 50 mm
- Working distance (approx., mm): 50
- Cross table type: No cross table
- Microscope stage equipment: 2 interchangeable object plates
FEATURES HD MICROCULAR
- Metal housing, mini USB socket
- Resolution 1920 x 1080 pixels, Full HD
- Frame rate: up to 25 fps
- Pixel size: 3x3 µm, sensor size: 5.86 x 3.28 mm
- 23.2 mm plug-in dimension, integrated UV/IR blocking filters
- 30 mm and 30.5 mm microscope adapter
- 31.7 mm (1.25") telescope adapter with filter thread for 1.25" filters
- Multilingual recording software for Windows
- Image format jpg, bmp, tif, png
- Video format: AVI
DIMENSIONS & WEIGHTS
- Total length: 225 mm
- Total width: 180 mm
- Total height: 265 mm
- Net weight (including accessories) total: 2200 g
Power pack included in delivery. Battery operation optional; batteries not included in delivery.
