Microscopy > Microscopes > Stereo microscope > Stereo microscope > Bresser > Analyth > Bresser Stereo microscope Analyth STR 10x-40x bino; Greenough; 50mm; 10x/20; 10-40x; LED, camera, 2MP
Product no.: 79910

Stereo microscope Analyth STR 10x-40x bino; Greenough; 50mm; 10x/20; 10-40x; LED, camera, 2MP

$ 291.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

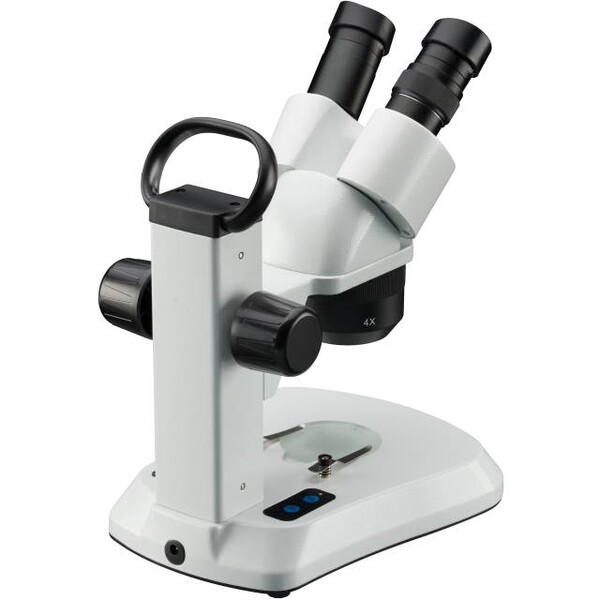

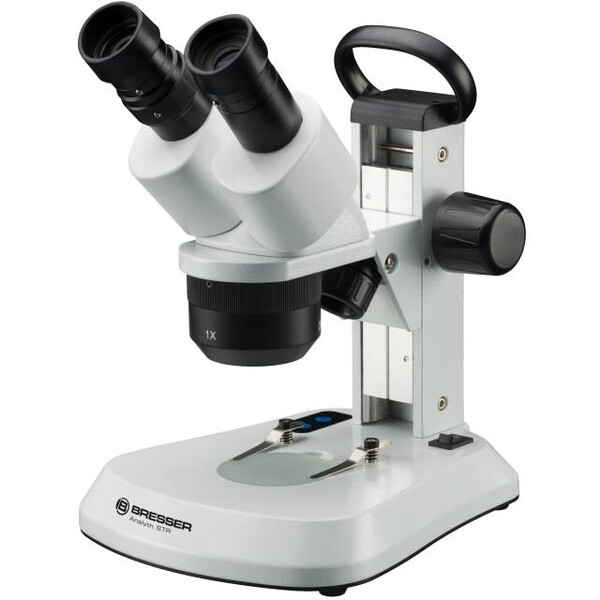

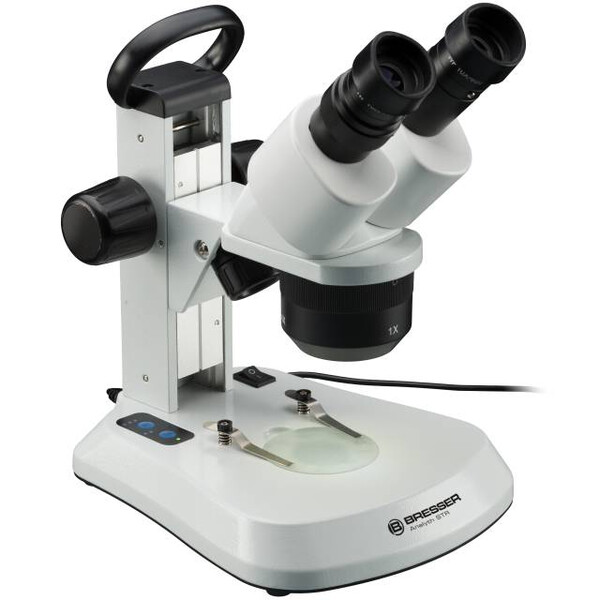

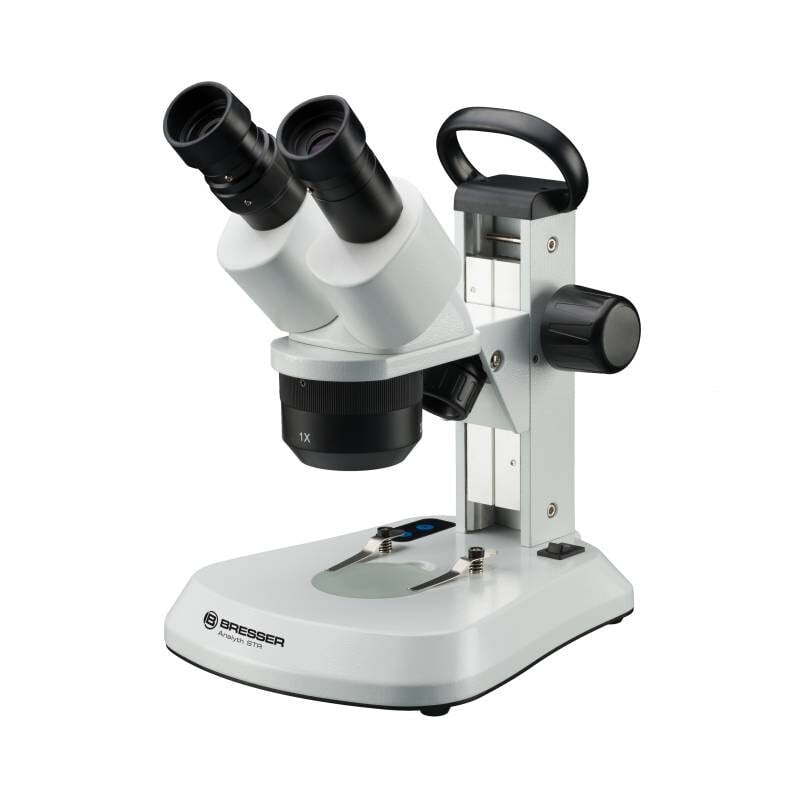

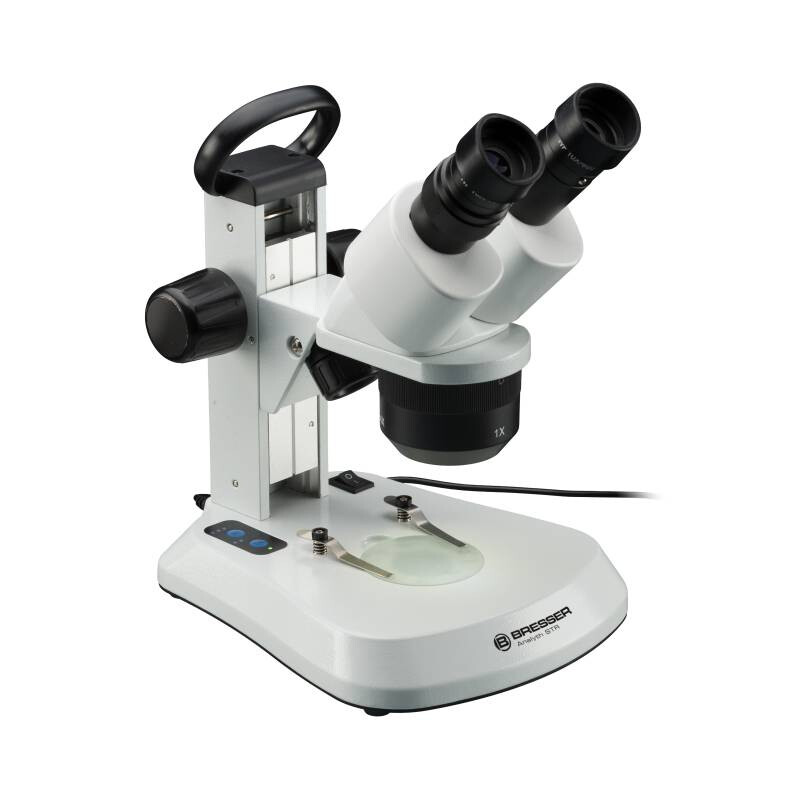

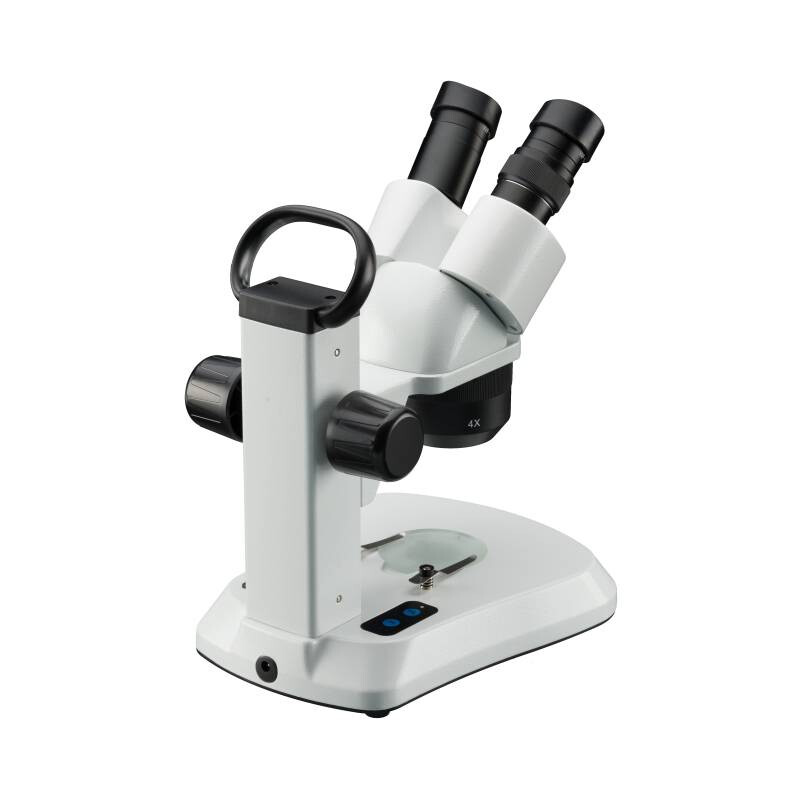

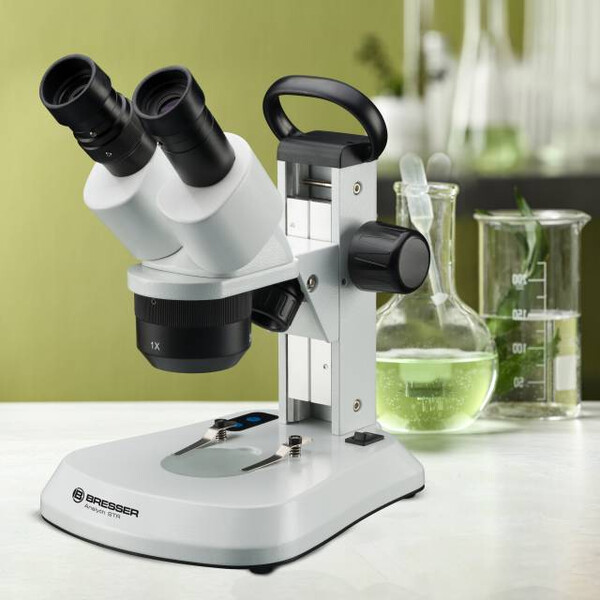

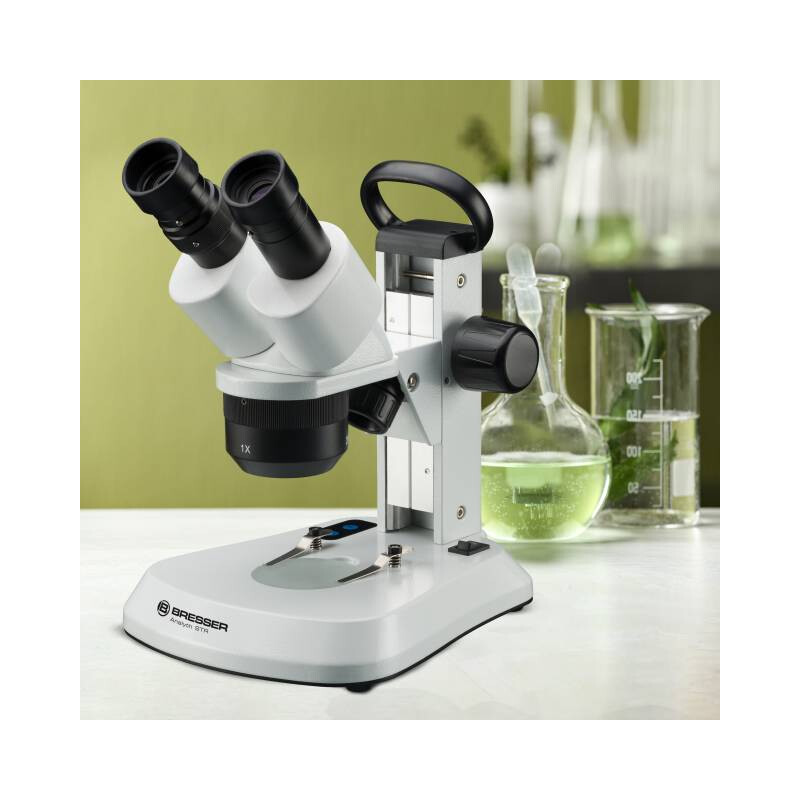

Bresser Analyth STR

The Analyth STR with Full HD eyepiece camera has 3 different objective magnifications that can be easily changed by turning the lens. This allows the magnifications 10x, 20x and 40x to be changed directly. The stereo design shows structured objects particularly vividly and three-dimensionally. The low, 10x initial magnification is particularly suitable for working with children. This allows objects up to 20 mm in size to be viewed completely. This makes the Analyth STR particularly versatile. It is suitable for insects, plants, minerals and much more, and can be used in hobby, school and professional applications. The stereo microscope can be used for quality control, in horticulture and agriculture, for hydrology and much more.

Thanks to the included Full HD eyepiece camera, you can save images and videos of your observations directly to your PC in Full HD resolution. Simply use the MikrOkular Full HD eyepiece camera directly in place of the eyepiece. This allows you to easily document your microscope observations with a single click or share them with others.

The eye relief and diopter adjustment are individually adjustable. The eyepieces have a large field of view of 20 mm. They are equipped with removable rubber eyecups and are secured against removal.

The microscope can be powered either by the power supply unit or by 3 batteries (not included). This makes it mobile, for example for use outdoors in the garden or on an excursion.

MICROSCOPE FEATURES

  • Microscope with 3 pairs of lenses, lens magnifications 10x; 20x; 40x
  • Wide-field eyepieces with eyepiece cups and 20 mm field of view
  • Bright, economical LED lighting, angle adjustable
  • Lighting for reflected and transmitted light can be switched separately
  • Dimmer via membrane keys with status display

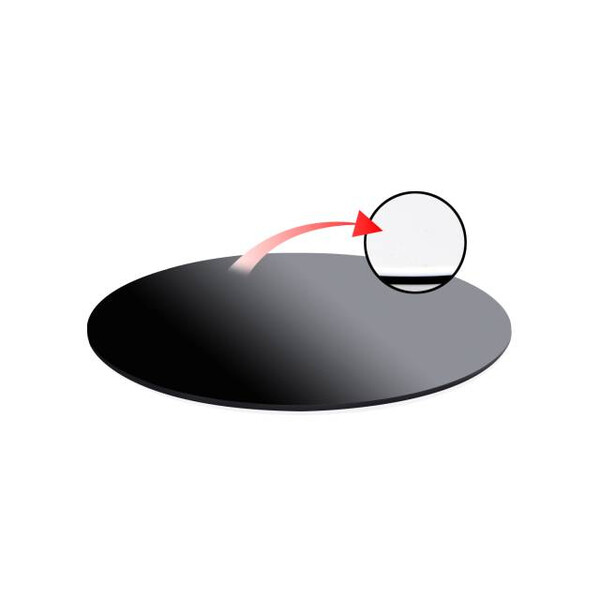

  • Two object plates (black/white or matt glass) with specimen clips

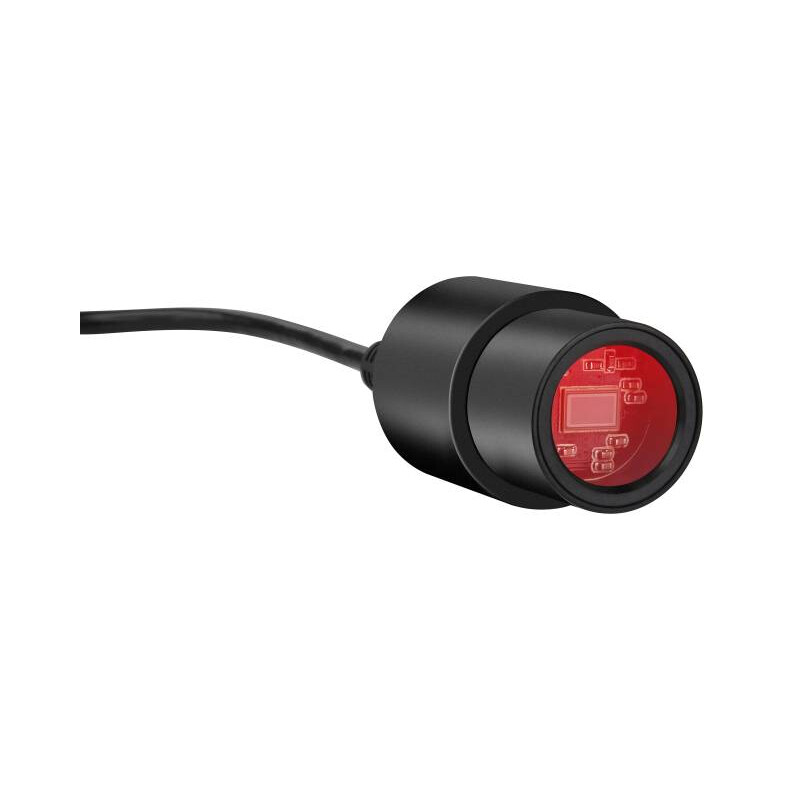

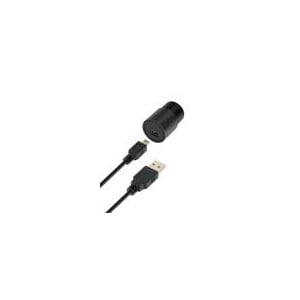

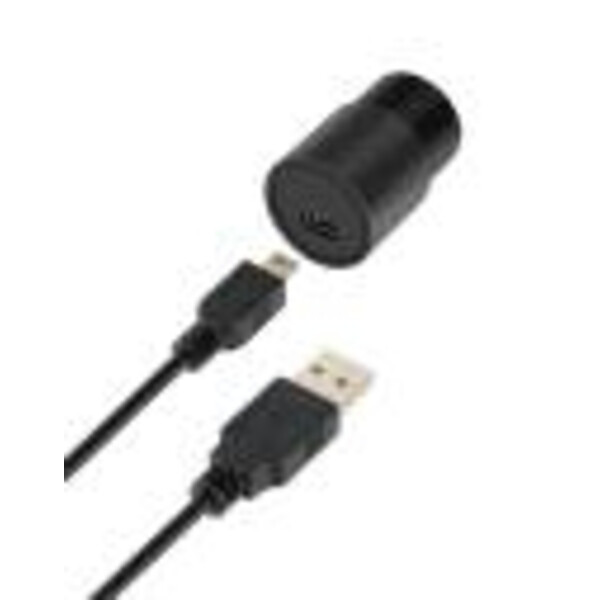

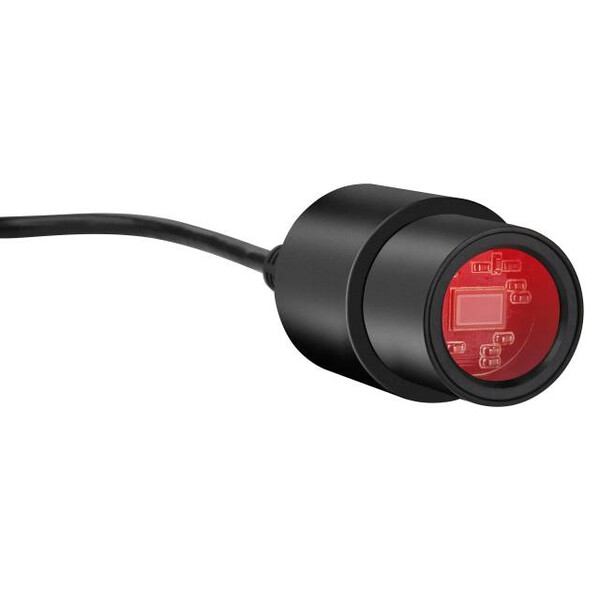

FEATURES HD MICROCULAR

  • Metal housing, mini USB socket
  • Resolution 1920 x 1080 pixels, Full HD
  • Refresh rate: up to 25 fps
  • Pixel size: 3x3 µm, sensor size: 5.86 x 3.28 mm
  • 23.2 mm plug-in dimension, integrated UV/IR blocking filters
  • 30 mm and 30.5 mm microscope adapter
  • 31.7 mm (1.25") telescope adapter with filter thread for 1.25" filters
  • Multilingual recording software for Windows
  • Image format jpg, bmp, tif, png
  • Video format: AVI

SYSTEM REQUIREMENTS HD MICROCULAR

  • Windows 7, 8 or 10
  • Free USB 2.0 port
  • Optical drive or Internet connection to download the software

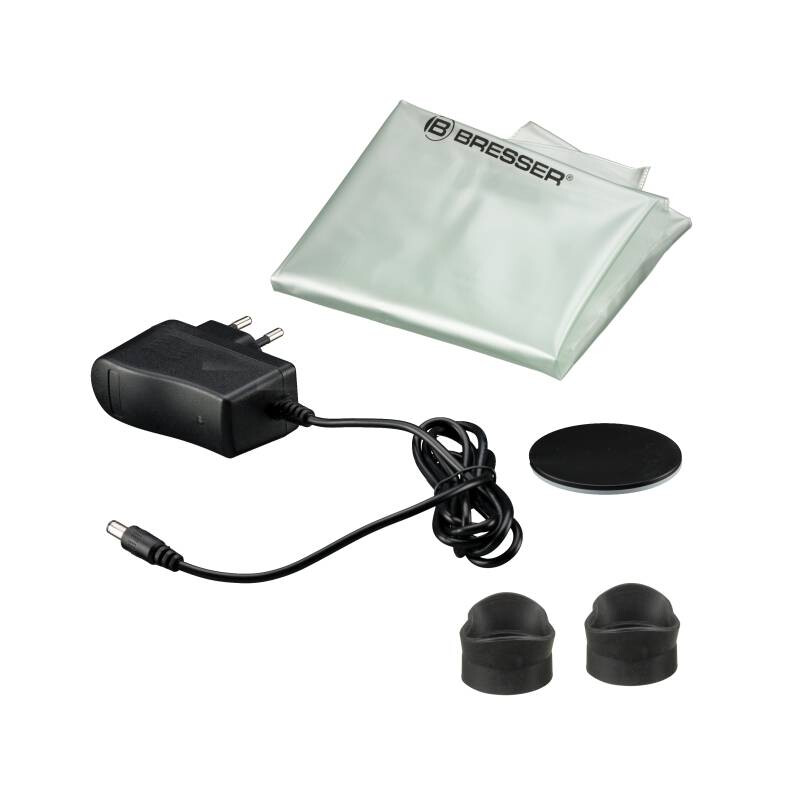

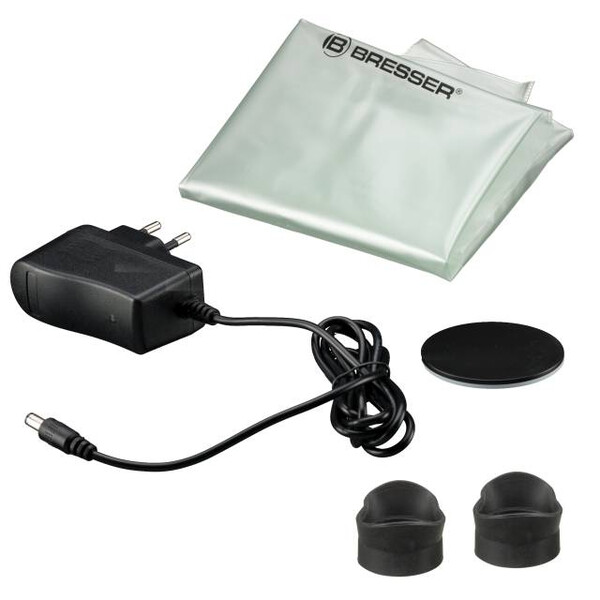

SCOPE OF DELIVERY

  • Microscope with 3 magnifications, 10x; 20x; 40x

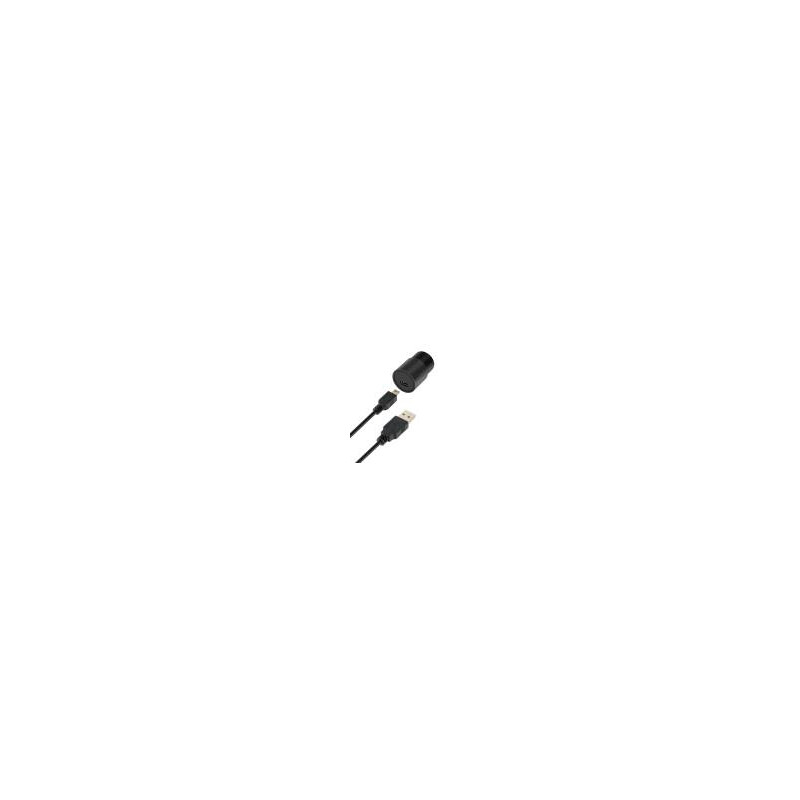

  • HD micro camera module incl. dust cover
  • USB cable
  • Software CD (CamLabLite software)
  • Metal stand with LED lighting, power pack and battery compartment
  • 2 eyepieces with rubber eyecups
  • Glass object plate

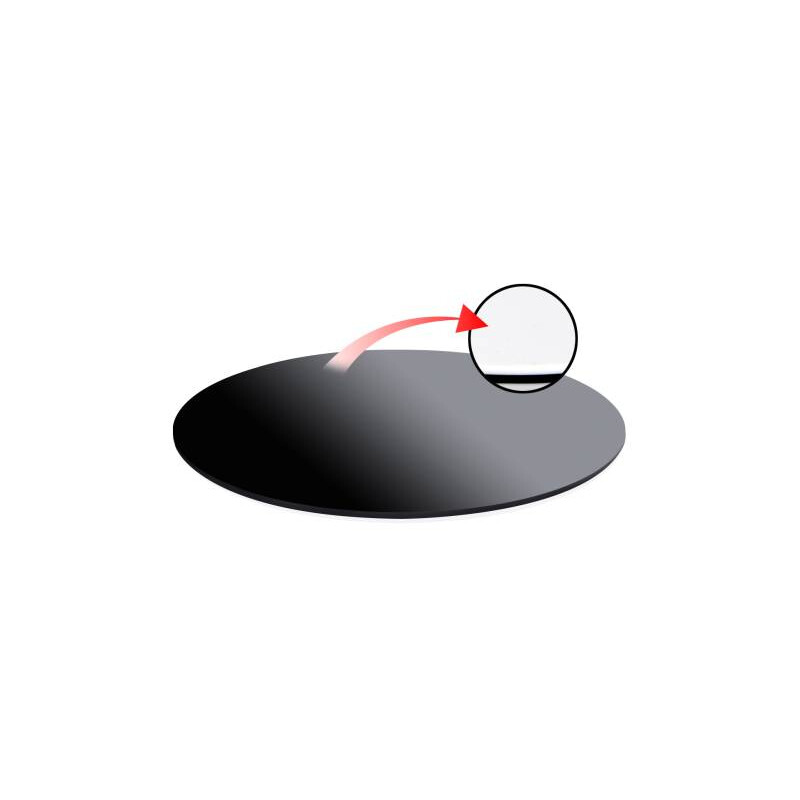

  • Plastic object plate (black/white)
  • dust cover
  • Instruction manual

TECHNICAL DATA

  • APPLICATION: Biology Botany Entomology Mineralogy Teaching
  • TARGET GROUP: Beginners Advanced users Professional users
  • PRODUCT FAMILY: Reflected and transmitted light microscope

OPTICAL FEATURES

  • Optical design: Stereo
  • Diopter adjustment: yes

ELECTRONICS, HARDWARE & SOFTWARE

  • Lighting: reflected/transmitted light
  • Dimmer: Illumination dimmer and switch for reflected and transmitted light

GENERAL TECHNICAL DATA

  • Colour: white
  • Transportability: good
  • Eyepiece cups: rubber eyepiece cups, fixed
  • Viewing: Binocular
  • Minimum interpupillary distance: 50 mm
  • Maximum interpupillary distance: 77 mm
  • Max. object height: 50 mm
  • Working distance (approx., mm): 50
  • Cross table type: No cross table
  • Microscope stage equipment: 2 interchangeable object plates

Power supply included. Battery operation optional; batteries not included.

Specifications

Optics


Lighting
Incident light and transmitted light
Lamp type
LED (adjustable)
Magnification
10, 20, 40
Eyepiece
10, 20 (Wide-angle eyepiece)
Power supply
Battery charger, mains plug
Number of objectives
3

Mechanics


Type of build
binocular
Focusing
Coarse movement
Specimen stage
Stage plate (interchangeable, black/white or frosted glass/opaque)
Working distance (mm)
50

Special features


Centering stage
-
Dust cover bag
-
Filter holder
-
Luminous field diaphragm
-
Rechargeable battery operation
yes

Camera


Resolution Photograph (Pixel)
1920x1080
Resolution video (Pixel)
1920x1080
frame rate (fps)
25
Image format
jpg, bmp, tif, png
Pixel size
3x3
Interface
Mini USB
Supported operating systems
Win 7, 8, 10
Video format
avi

General


Colour
black-white
Series
Analyth
Length (mm)
225
Width (mm)
180
Height (mm)
265
Weight (g)
2200

Suitable for


Pros
-
Beginners
yes
Advanced
yes

Field of application


Hobby
yes
Education
yes

Area of application


Metallurgy
-
Interference contrast
-
Parasite analysis
yes
Maker
yes

Miscellaneous


supplier product number
5803810

Product safety

Manufacturer: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, www.bresser.de
