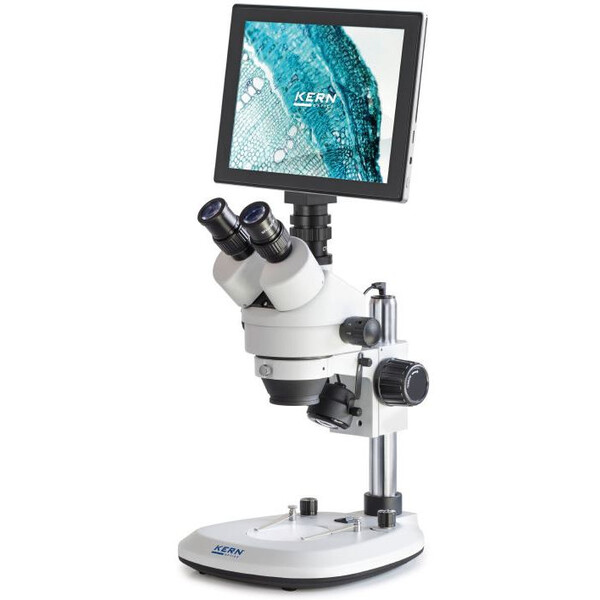

Microscopy > Microscopes > Digital microscopes > Stereo microscope > Kern > OZL > Kern Microscope OZL 464C241, Greenough, Column, 7-45x, 10x/20, Incident/Transmitted light, 3W LED, Camera 5MP, USB 2.0, HDMI, WiFi, Tablet
Product no.: 66634

Microscope OZL 464C241, Greenough, Column, 7-45x, 10x/20, Incident/Transmitted light, 3W LED, Camera 5MP, USB 2.0, HDMI, WiFi, Tablet

$ 2,370.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

OZL 464C241, Greenough, Column, 7-45x, 10x/20, Incident/Transmitted light, 3W LED, Camera 5MP, USB 2.0, HDMI, WiFi, Tablet

Features

  • The OZL-46 series is a range of stereo zoom microscopes that impress with their quality, ease of use, flexibility, stability and affordable price.
  • The standard LED reflected and transmitted light illumination ensures optimum lighting of your sample.
  • In addition to their excellent optical properties, these models offer maximum comfort in this class thanks to their large working area – ideal for training centres, workshops and assembly and repair workstations, e.g. in the electronics industry.
  • The zoom lens allows you to continuously adjust the magnification from 7× to 45×
  • The KERN OZL-46 series is available as a binocular or trinocular version
  • The column stand offers you maximum flexibility and the freedom to remove the microscope head and integrate it into other modular systems, such as a universal stand

Technical data OZL 46

· Optical system: Greenough optic s

· Lighting independently dimmabl e

· Tube inclined at 45°

· Magnification ratio: 6.4: 1

· Beam distribution 50:5 0

· Eye relief 55–75 m m

· Dioptre adjustment on both side s

· Overall dimensions W×D×H 300×240×420 m m

· Net weight approx. 4 k g

Included in delivery:

  • dust cover
  • eyepiece cups
  • Camera adapter
  • Camera 5MP

Highlights OZL 464:

  • stand column
  • Trinocular
  • Incident and transmitted light

Specifications

Optics


Image scale
7x-45x
Lighting
Incident light and transmitted light
Condensor
-
Eyepiece
10/20
Power supply
-
Magnification
45
Optical system
Greenough
Lamp type
LED

Mechanics


Type of build
Trinocular
Working distance (mm)
105
Viewing posture (°)
45° angled eyepiece, 360° rotatable
Focusing
Coarse movement (Control knobs on both sides)
Specimen stage
Stage plate

Special features


Built-in digital camera
-
Dust cover bag
yes

Camera


frame rate (fps)
15-30
Size of chip (″)
1/2.5
Colour camera
yes
Megapixel
5.1
Interface
USB 3
sensor
CMOS

General


Series
OZL
Colour
white
Height (mm)
420
Length (mm)
240
Width (mm)
300
Weight (g)
4000

Area of application


Mineralogy
yes

Miscellaneous


supplier product number
OZL464C241

Product safety

Manufacturer: KERN & Sohn GmbH, Ziegelei 1, 72336 Balingen, DE, http://www.kern-sohn.com/
