Microscopy > Microscopes > Digital microscopes > Stereo microscope > Kern > OZL > Kern Microscope OZL 468T241 Greenough, rack and pinion, 7-45x, 10x/20, incident/transmitted light, 3W LED, Camera 5MP, USB 2.0, HDMI, WiFi, Tablet
Product no.: 66643

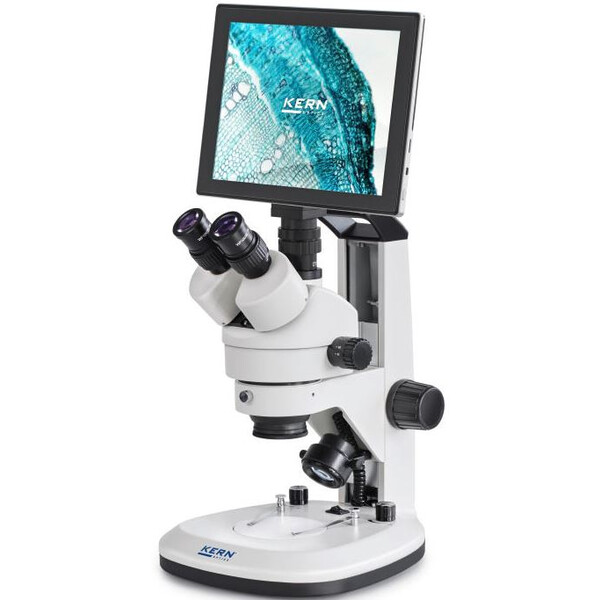

Microscope OZL 468T241 Greenough, rack and pinion, 7-45x, 10x/20, incident/transmitted light, 3W LED, Camera 5MP, USB 2.0, HDMI, WiFi, Tablet

$ 2,370.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

OZL 468T241 Greenough, rack and pinion, 7-45x, 10x/20, incident/transmitted light, 3W LED, Camera 5MP, USB 2.0, HDMI, WiFi, Tablet

First-class optics and powerful lighting combined with high flexibility

Technical data:

  • Optical system: Greenough optics
  • Lighting independently dimmable
  • Tube inclined at 45
  • Magnification ratio: 6.4:1
  • Beam distribution 50:50
  • Eye relief: 52.0–76.0 mm
  • Diopter adjustment on both sides
  • Overall dimensions W×D×H 330×285×440 mm
  • Net weight approx. 4.7516 kg

Features

  • The OZL-46 series is a range of stereo zoom microscopes that impress with their quality, ease of use, flexibility, stability and affordable price.
  • The standard LED reflected and transmitted light illumination ensures optimum lighting of your sample.
  • In addition to their excellent optical properties, these models offer maximum comfort in this class thanks to their large working area – ideal for training centres, workshops and assembly and repair workstations, e.g. in the electronics industry.
  • The zoom lens allows you to continuously adjust the magnification from 7× to 45×
  • The KERN OZL-46 series is available as a binocular or trinocular version
  • The column stand offers you maximum flexibility and the freedom to remove the microscope head and integrate it into other modular systems, such as a universal stand

Technical data OZL 46

· Optical system: Greenough optic s

· Lighting independently dimmabl e

· Tube inclined at 45°

· Magnification ratio: 6.4: 1

· Beam distribution 50:5 0

· Eye relief 55–75 m m

· Dioptre adjustment on both side s

· Overall dimensions W×D×H 300×240×420 m m

· Net weight approx. 4 k g

camera

  • Optimal synchronisation, a high frame rate and stable image performance in conjunction with our supplied Microscope VIS software will make your daily work much easier.
  • Power is supplied via the USB cable, so no additional power supply is required.
  • These universal cameras can also be connected to all commercially available microscopes with the appropriate C-mount adaptor for the respective microscope.
  • Thanks to proven CMOS technology in combination with USB 2.0 or USB 3.0, images are displayed quickly and clearly.
  • These cameras are also suitable for more demanding applications, such as dark field, phase contrast and fluorescence applications.
  • In addition to the camera, the scope of delivery includes our multilingual KERN Microscope VIS software, a USB cable, various eyepiece adaptors and an object micrometer for calibration of the software.

Included in delivery:

  • dust cover
  • eyepiece cups
  • Camera adapter
  • Camera 5MP
  • Tablet

Specifications

Optics


Image scale
7x-45x
Lighting
Incident light and transmitted light
Condensor
-
Eyepiece
10/20
Power supply
-
Magnification
45
Optical system
Greenough
Lamp type
LED

Mechanics


Type of build
Trinocular
Working distance (mm)
105
Viewing posture (°)
45° angled eyepiece, 360° rotatable
Focusing
Coarse movement (Control knobs on both sides)
Specimen stage
Stage plate

Special features


Rechargeable battery operation
-
Filter holder
-
Built-in digital camera
yes
Luminous field diaphragm
-
Centering stage
-
Dust cover bag
yes

Camera


frame rate (fps)
15-30
Size of chip (″)
1/2.5
Colour camera
yes
Megapixel
5.1
Interface
USB 3
sensor
CMOS

General


Series
OZL
Colour
white
Height (mm)
420
Length (mm)
285
Width (mm)
300
Weight (g)
4500

Area of application


Mineralogy
yes

Miscellaneous


supplier product number
OZL468T241

Downloads

Product safety

Manufacturer: KERN & Sohn GmbH, Ziegelei 1, 72336 Balingen, DE, http://www.kern-sohn.com/
