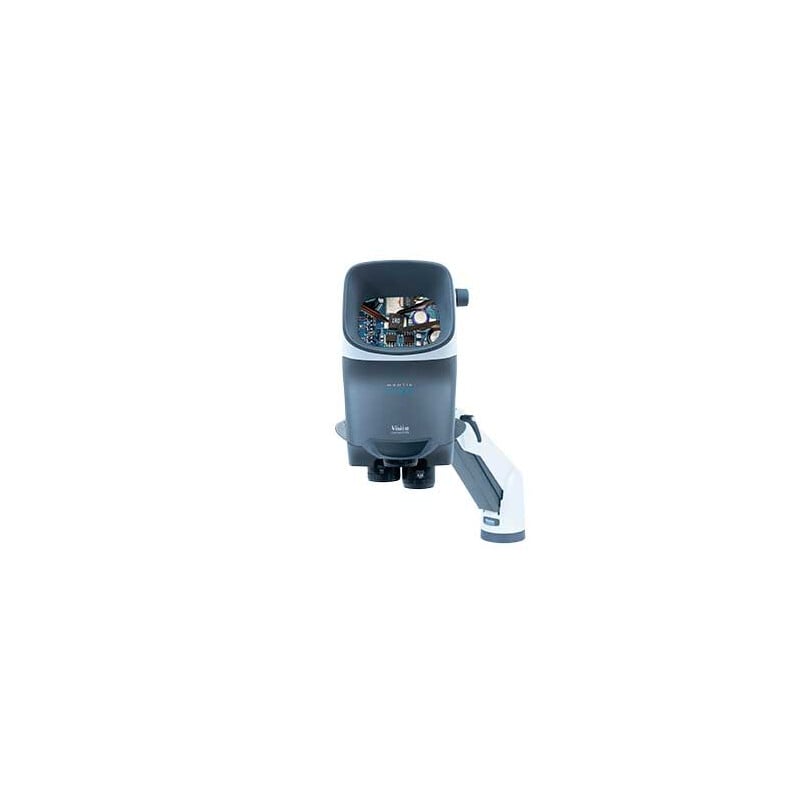

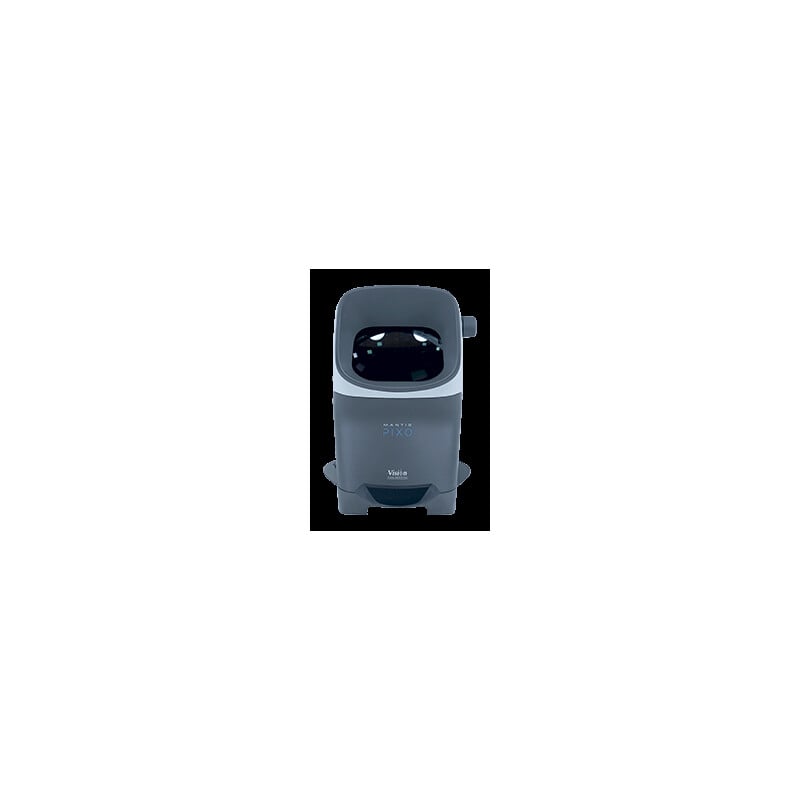

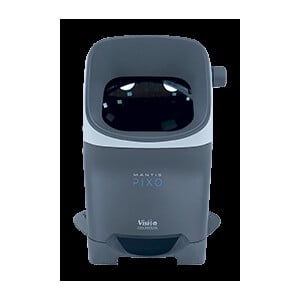

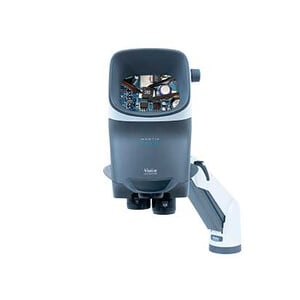

Stereo microscope MANTIS PIXO with "Verso Universal Stand" (without lenses) SMP200

Mantis - PIXO

Eyepiece-free optical stereo microscope with integrated digital camera and dynamic vision.

Highlights

• Best optical 3D stereo image
• Ergonomic working posture
• Large working distance
• Integrated HD camera
• Video and image capture
• Image annotation and labelling
• Customisable overlays
• Magnification 3x - 15x

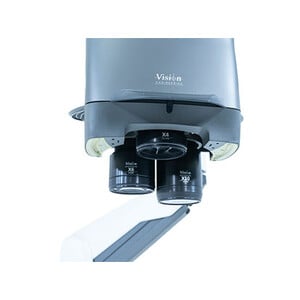

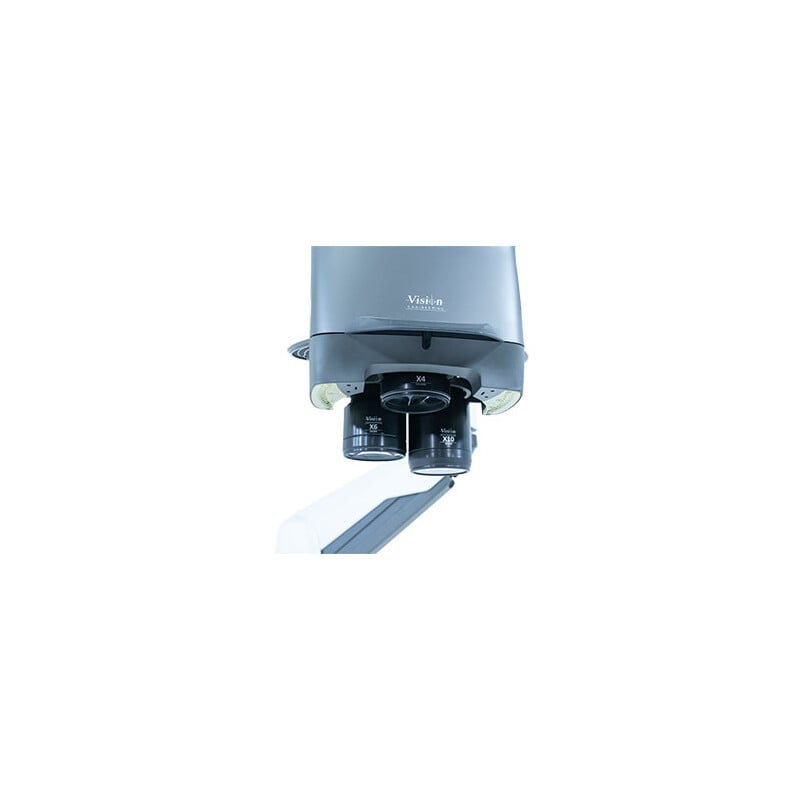

• 3-way lens changer
• Dynamic 3D lighting
• Optional white/UV lighting

Mantis PIXO with "Verso Universal Stand" SMP200

With the versatile Verso stand, the system can be raised and lowered to the correct position as required

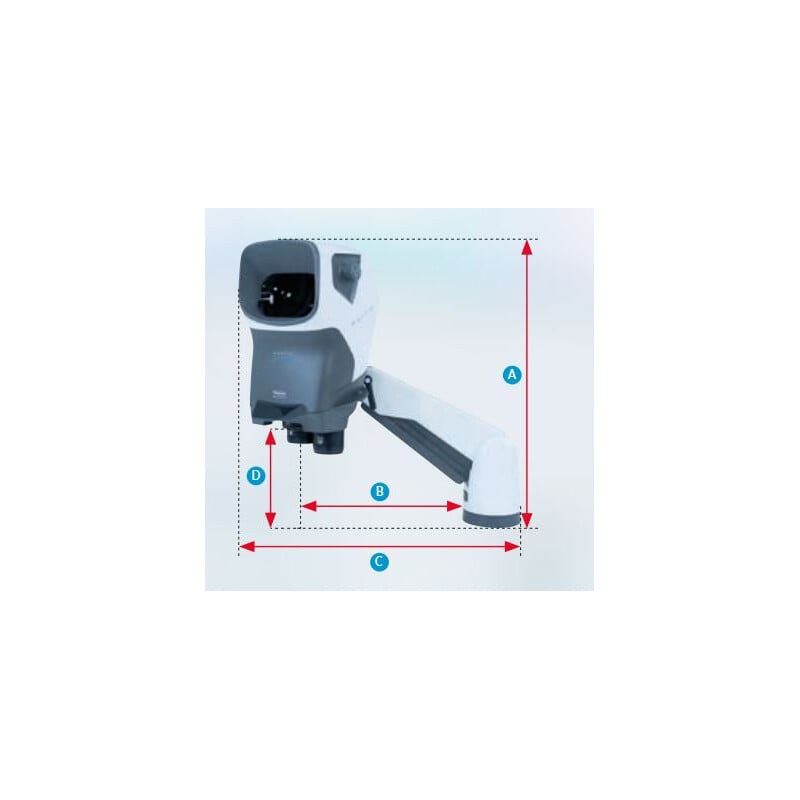

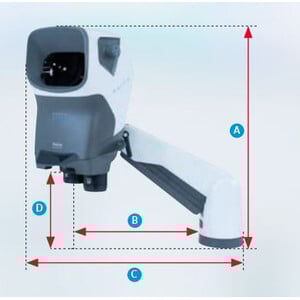

Dimensions:

• Working height – 230 mm
• Projection – 380 – 505 mm
• Max. object height – 166 mm

Components included:

• Stereo head MPH001 (without magnifying lenses, incl. 5MP camera) and LED lighting
• Verso arm MTB200A
• Dust cover MTA360
• Power pack MTA330

Note: Please select the desired lenses from the accessories or contact our service department.

Mantis PIXO & Mantis ERGO

Compatible lenses:

Objectives Working distance Max. field of view Exit pupil diameter

3x 100 mm 44.1 mm 23.5 mm

4x 100 mm 35.7 mm 23.6 mm

6x 68 mm 24.2 mm 22.4 mm

8x 60 mm 18 mm 19.4 mm

10x 54 mm 14.2 mm 17.0 mm

15x 40 mm 9.1 mm 12.3 mm

6x SLWD 114 mm 22.5 mm 17.0 mm

8x SLWD 113 mm 17.9 mm 14.4 mm
