Highlights of the SMZ-160 series
- Greenough system
- Field of view: 20
- Magnification range from 7.5X to 45X
- Zoom 6:1
- Click stops enable precise reproduction of magnification during measurements

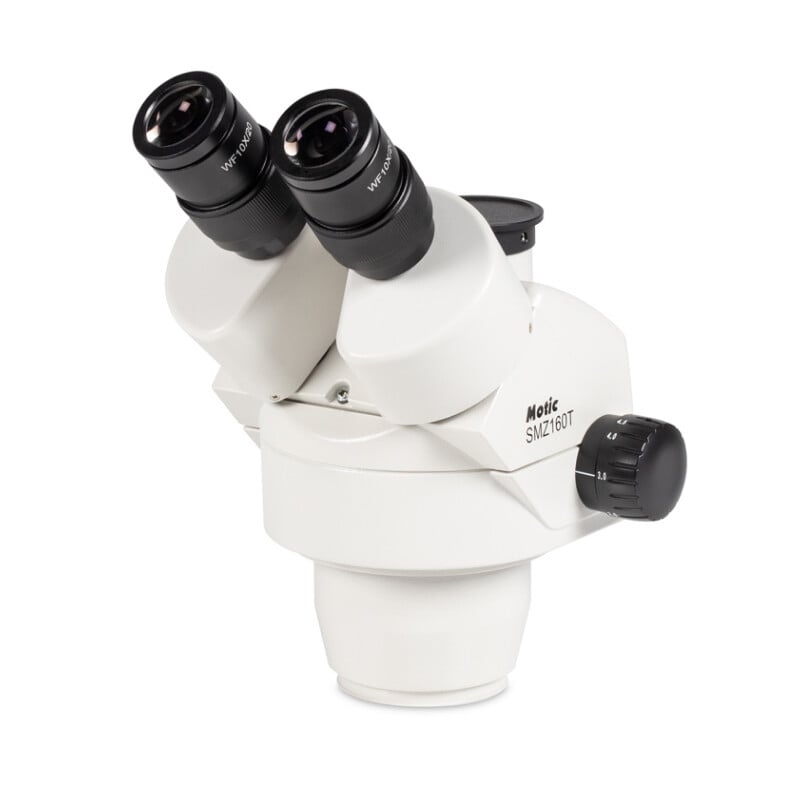

Specification SMZ-160-TH Stereo Zoom Head Trino (1101010100921)
Optical system: Greenough
Observation tube: Trinocular head
Viewing angle: 45º inclined
Beam splitter Trinocular tube: 50:50 fixed
Pupillary distance: 50-75 mm
Diopter adjustment: On both eyepiece sockets, +/- 5 diopters
Eyepieces: Wide field WF10X/20mm
Lens system: Zoom ratio 6:1
Lenses: 0.75X - 4.5X
Working distance: 100 mm
Diameter of head on mount for head holder: Ø76 mm
Net weight: 1.4 kg
Scope of delivery: Dust cover
Contrast methods:
Bright field: Yes
