Microscopy > Microscopes > Stereo microscope > Stereo zoom heads > Optika > SZO > Optika Stereo zoom head SZO-T, trino, 6.7x-45x, w.d. 110 mm, Ø 23mm, click stop
Product no.: 61882

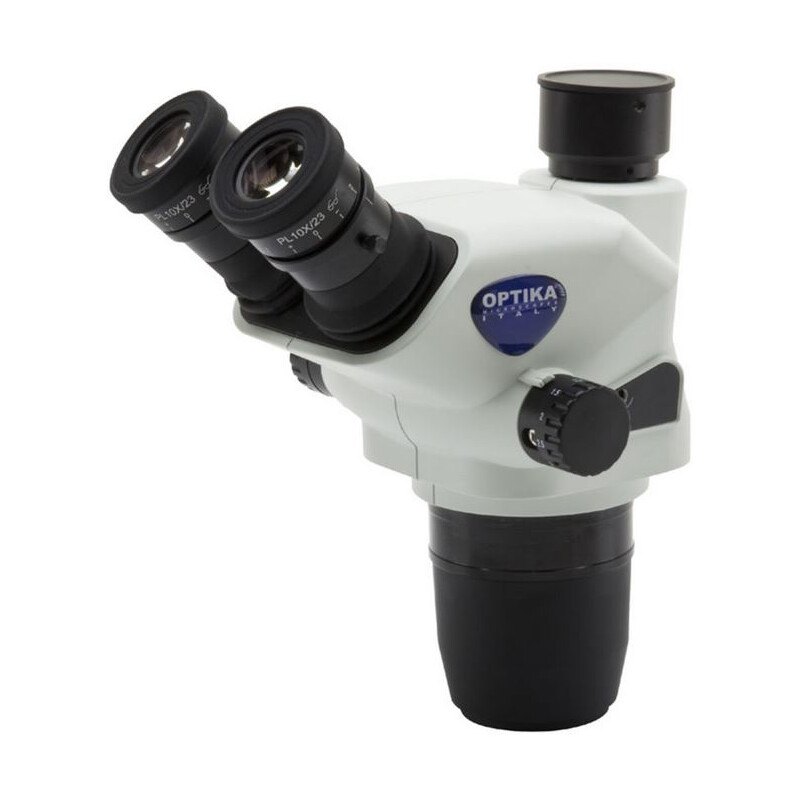

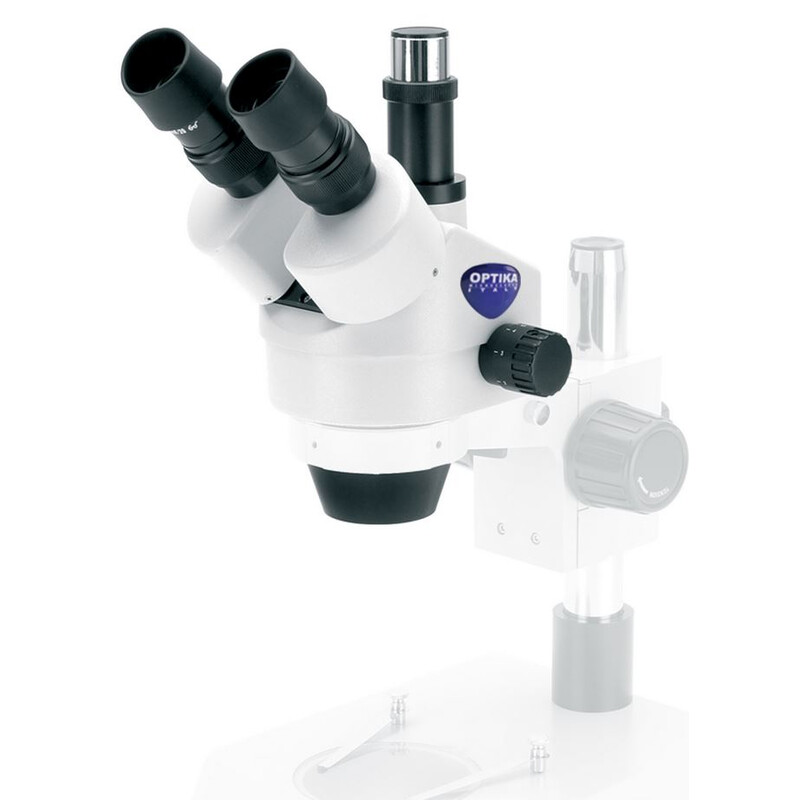

Stereo zoom head SZO-T, trino, 6.7x-45x, w.d. 110 mm, Ø 23mm, click stop

RRP: $ 1,160.00 Our price:
$ 1,040.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series SZO...

SZO Series

OPTIKA SZO Series represents a very compact Greenough stereo microscope with 6.72:1 zoom and 110mm working distance for professional environments and laboratories which allows the observation of samples without any particular preparation, yet producing incredibly crisp and detailed images. An extensive range composed by binocular and trinocular heads with 23mm field of view for a very wide peripheral view and comfortable posture even after several hours of operation. Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Discover how easily an enhanced accuracy and repeatability can be achieved thanks to the click-stop zoom for precise and repetitive observations. An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light of 3.6W on selected models), arm extension (including overhanging stands) and focusing system. Special external illuminators and moving/heating stages are also available for specific applications. Keep in my mind the application, always: if you are soldering a printed circuit board, it may be more important to have a long working distance; if you are counting items, then a large field of view will be of great assistance.

Greenough Optical System

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,highly versatile and appreciated for the 3D viewing. Samples with significant depth can be quickly inspected. Binocular and trinocular heads are 45° inclined to grant comfortable posture to the user even after several hours of operation.

Reliable crisp images, repetable zoom settings

Discover how easy is to obtain precise reproduction of magnifications, thus simplifying inspections and measurements. Now, with SZO your observations are easier thanks to the 11-step click-stop system in the zoom which allows you to exactly set the magnification at the same level of the previous time. Zoom control is greatly facilitated with no need of constantly look at the magnification knob.

Incredibly practical and comfortable, especially with cameras

Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Watch at the same time your specimen on a monitor and directly in the eyepieces, without any setting.

STEREOZOOM MICROSCOPES FOR ROUTINE INSPECTIONS X-LED³ EXCLUSIVE LIGHTING SOURCE

Special technology able to double the light intensity for incomparable performance, ensuring constant pure-white colour temperature. Relevant money & energy saving thanks to the incredibly low energy consumptions allow you to cut the electricity bills by 90%! On SZO-3, SZO-4, SZO-5, SZO-6.

LED – OPTIMIZED ILLUMINATION

Money & energy saving thanks to LED long lifetime (65.000 hours, 20 years in case of 8 hours/day) which is more than 20 times compared to a standard halogen bulb. LED illumination is available as transmitted light, cold light and ring light illuminators. On SZO-3, SZO-4, SZO-5, SZO-6.

SZM-T

Head: Trinocular, 360° rotating on all stands and 45° inclined.
2-position photo port: 100/0 and 0/100 (on right eyepiece tube).
Interpup. distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepiece tubes.
Eyepieces: WF10x/21 mm, high eye-point.
Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1).
Working distance: 100 mm

Specifications

Optics


Image scale
6.7-45
Lighting
none
Condensor
-
Lens type
Achromatic
Eyepiece
10/23
Power supply
-
Magnification
45
Optical system
Greenough

Mechanics


Type of build
Trinocular
Viewing posture (°)
45° angled eyepiece, 360° rotatable

Special features


Rechargeable battery operation
-
Filter holder
-
Built-in digital camera
-
Luminous field diaphragm
-
Centering stage
-
Dust cover bag
yes

General


Series
SZO
Colour
white
Height (mm)
230
Length (mm)
175
Width (mm)
175
Weight (g)
1800

Field of application


Industry
yes
Biology
yes

Area of application


Mineralogy
yes
Construction materials industry
yes
Biology, zoology & botany
yes
Odontotechnics
yes
Electronics
yes
Semiconductor technology
yes
Mechanical engineering
yes
Forensic science
yes
Metallurgy
yes
Materials technology
yes
Marine Biology
yes
