NexiusZoom EVO, trino, 6.5-55x, NZ.5313, Stand column NZ.9005, LED transmitted light

Nexius Zoom Evo

The NexiusZoom and NexiusZoom Evo stereo microscopes from Euromex enable you to examine your samples with high precision. They generate three-dimensional images for microscopy of the highest standards. These high-end zoom microscopes are perfect for analysing all types of surfaces or observing biological samples. The NexiusZoom stereo microscopes are available with a wide range of tripods and are supplied with or without LED lighting. Ideal for all types of educational and laboratory applications. With additional ancillary lenses and objectives, magnifications from 3.3x to 220x can be achieved

Eyepieces: Pair of WF 10x/23 mm, both eyepieces with ± 5 diopter adjustment

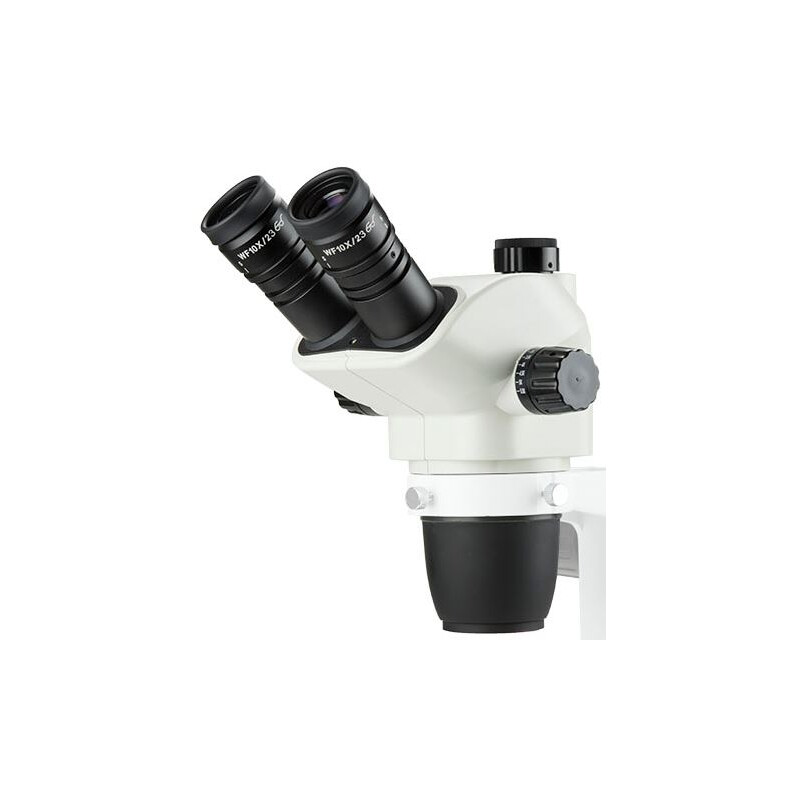

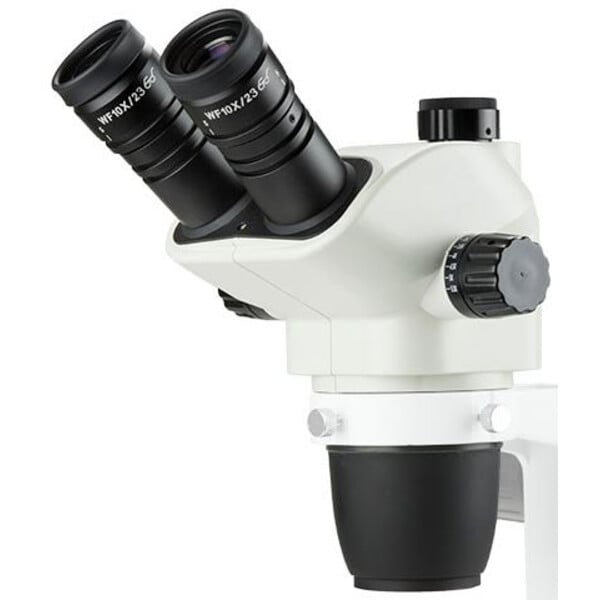

Head: Binocular or trinocular head with 45° inclined view, interpupillary distance adjustable from 54 mm to 75 mm

Lenses: Zoom 1:6.7; 0.65x to 5.5x, magnification up to 180x (ancillary lens 2x, eyepieces 20x optional); field of view from 33 mm to 4.9 mm; working distance 110 mm

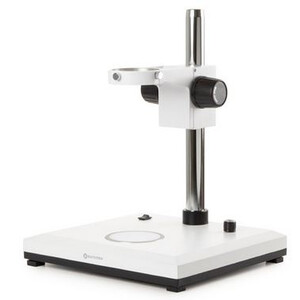

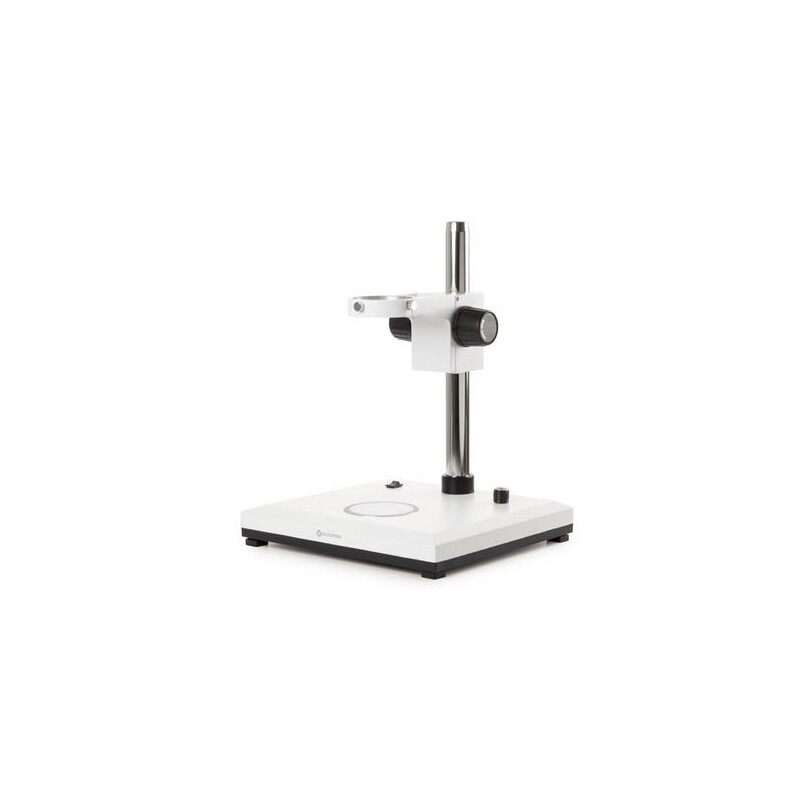

Tripod: Stand column

3W LED

With head holder.

EYEPIEC ES

The NexiusZoom Evo comes with a pair of HWF 10x/ 23 mm eyepieces.

OBJECTIVES

The NexiusZoom Evo is equipped with a plan achromatic 1:8.4 objective with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm

Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.
