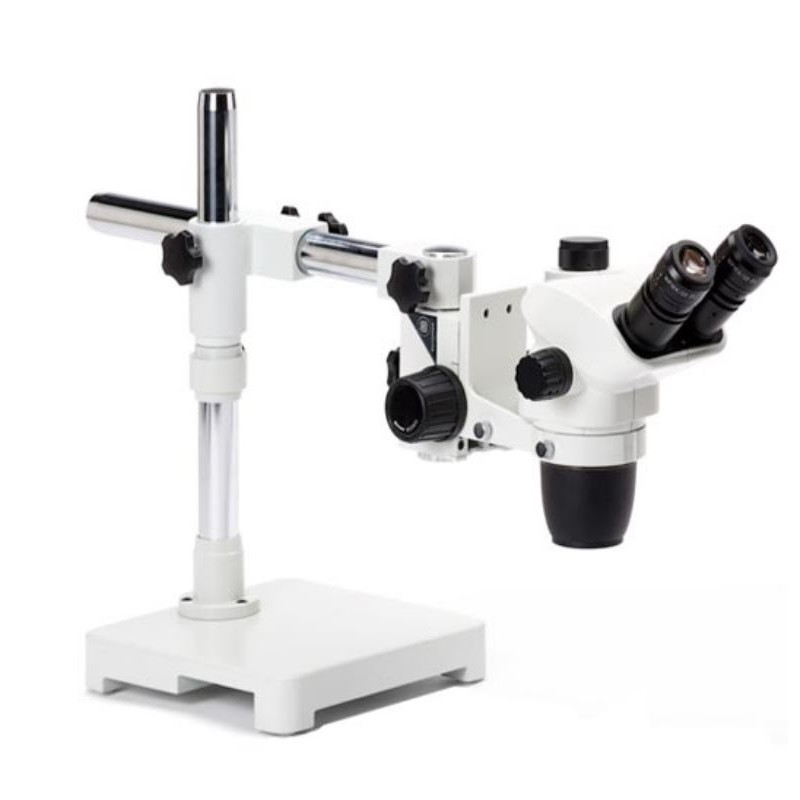

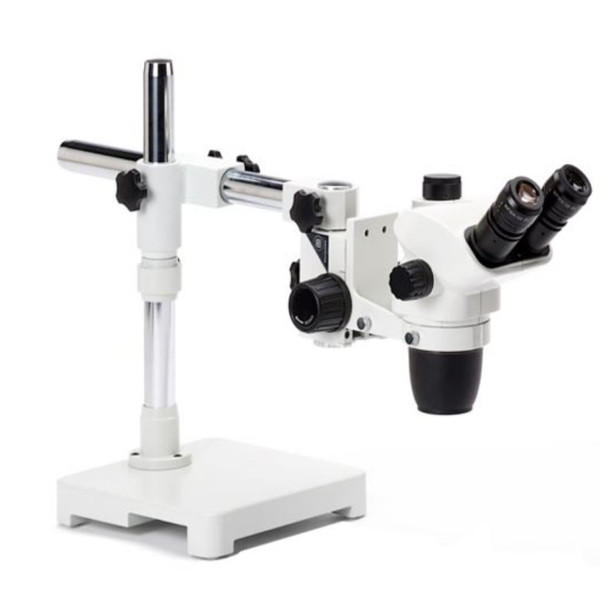

NexiusZoom NZ.1903-U, 6.7-45X zoom stereomicroscope

$ 1,230.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
Product questions?
advice for Microscopy

Product description

More about the series Nexius...

Euromex NexiusZoom

The NexiusZoom stereomicroscopes are often used for professional industrial purposes, scientific research and education because of the excellent optical and mechanical properties while very attractively priced

  • Standard wide field secured WF10x eyepices with 22 mm field of view
  • 45° inclined, 360° rotatable bino- and trinocular stereo heads
  • 0.67 to 45x Zoom objectif, parafocal over the entire zoom range with a working distance of 110 mm
  • With optionale additional lenses, magnifications from 3.3x to 90 times can be achieved
  • 2 read-to-use stereomicroscope models with ergonomic flat stand with 3 W LED diascopic and incident illumination
  • 4 configuratieons with universal one arm or double arm stands

NexiusZoom NZ.1903-U, single arm, cantilevered, base plate, trino, 6.7-45x

  • Binocular stereo zoom head with 0.67x - 4.5x objective
  • Eyepieces: WF 10x/22 eyepieces in 45° inclined tube with +/- 5 diopter adjustment
  • Magnification: from 6.7 to 45x
  • Field of view: from 33 mm to 4.9 mm
  • Free working distance: 110 mm
  • Tripod: metal, 1-arm, overhanging, swivelling
  • Lighting: without lighting

Packaged in a Styrofoam box

EYEPIECES
The standard NexiusZoom is supplied with a pair of HWF 10x/ 22 mm eyepieces.

OBJECTIVES
The standard NexiusZoom is equipped with a plan achromatic 1:6.7 objective with 0.67x to 4.5x magnification. Field of view from 33 mm to 4.9 mm. Large working distance of 110 mm.

Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.

Specifications

Optics

Eyepiece
10 (WF 10/23)
Magnification
0.67-4.5 (zoom lens)
Lamp type
-
Lighting
-
Optical system
Greenough

Mechanics

Type of build
Trinocular
Working distance (mm)
110
Viewing posture (°)
45° oblique viewing

Special features

Dust cover bag
yes

General

Width (mm)
219
Length (mm)
266
Series
Nexius

Field of application

Industry
yes

Area of application

Materials technology
yes
Mineralogy
yes
Metallurgy
yes
show more...

Downloads

Booklet (EN)

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
