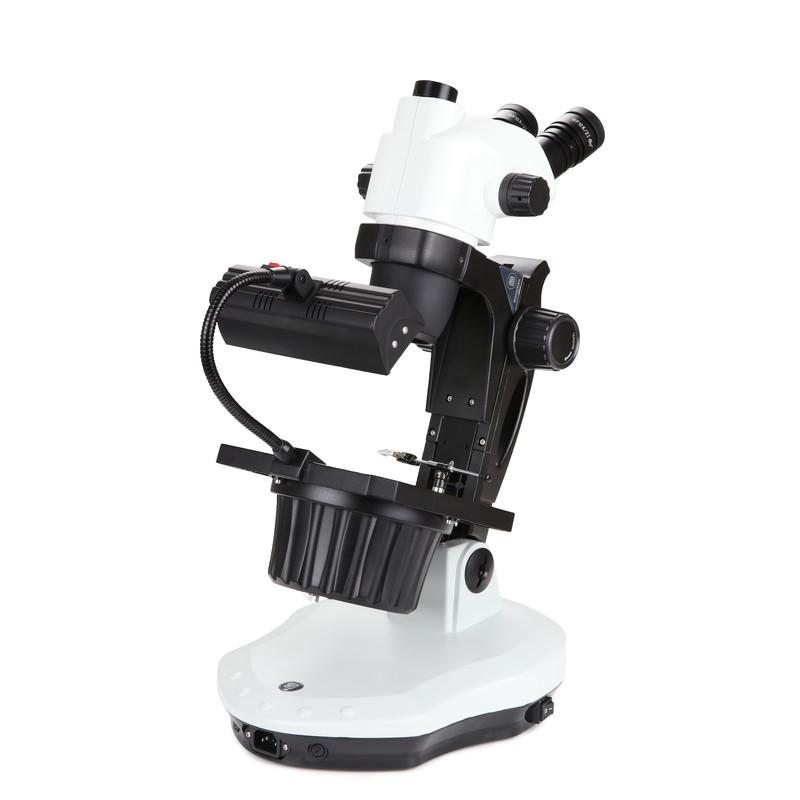

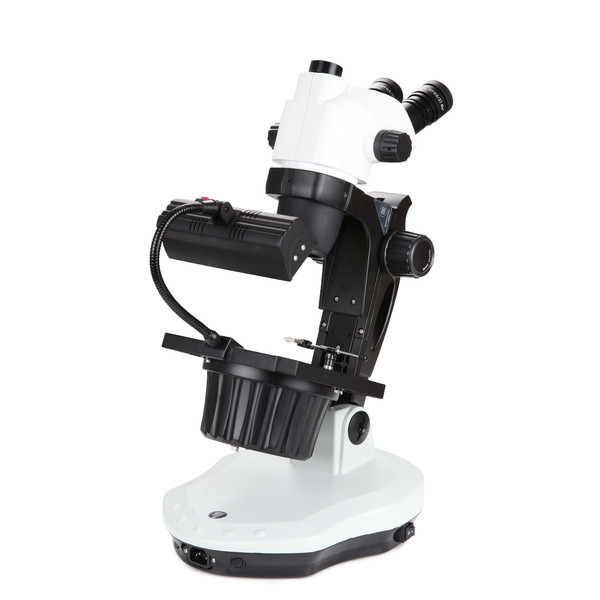

NZ.1703-GEMF, 6.7X to 45X, gemology microscope, 30W 6V halogen transmitted lighting, 7W fluorescent gas discharge lamp incident illumination

NexiusZoom for gemmology

The specialised backward-tilted stand of the Nexius Zoom gemmology microscope offers 30 watts of lighting directed at an angle onto the workpiece. This allows you to examine your gemstones under perfect dark field conditions. This stand is also available with 1 W LED or 7 W fluorescent incident light.

Highlights

• Designed for gemmology

• Binocular and trinocular head

• Zoom lenses with 0.7 to 4.5x or 0.65 to 5.5x magnification

• 1W LED or 7W fluorescent reflected light lighting

• 30 watt transmitted light halogen illumination

• Configurations up to 220x magnification

• Standard HWF 10X eyepieces with 22 mm or 23 mm field of view

• Ergonomic design with rear-tilting tripods

NZ.1703-GEMF, 6.7X to 45X, gemology microscope, 30W 6V halogen transmitted lighting, 7W fluorescent gas discharge lamp incident illumination

Head: Trinocular

Objective: 0.67-4.5

Eyepieces: 10x/22

Incident light: 7 W Fluorescence

Transmitted light: 30 W halogen

Working distance 110 (mm)
