NexiusZoom EVO series
Technical
- Eyepieces: Pair of WF 10x/23 mm, both eyepieces with ± 5 diopter adjustment
- Head: Binocular or trinocular head with 45° oblique view, interpupillary distance adjustable from 54 mm to 75 mm
- Objectives: Zoom from 1:8.4 objectives with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
- Ancillary lens: 0.5x / 0.75x / 1.5x and 2.0x optional
- Tripod: Ergonomically designed column or fixed arm stand with LED lighting and two object clamps or ergonomically designed overhanging stand with single or double arm with coarse adjustment, without lighting.
- Material: Metal alloy, white lacquered
- Optical parts are treated against fungi

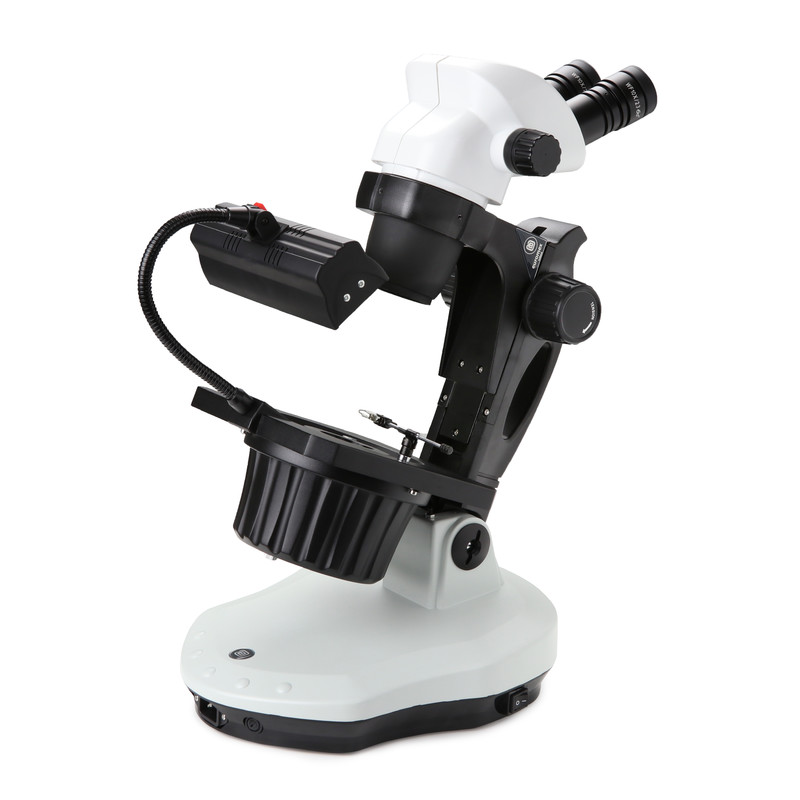

NZ.1703-GEMF, NexiusZoom GEM, 6.5x to 55x, 30W 6V, 7W fluorescent, trino
Head: Trinocular
Objective: 0.65-5.5
Eyepieces: 10x/23
Incident light: 7 W Fluorescence
Transmitted light: 30 W halogen
Working distance 100 (mm)
