Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Euromex > Nexius EVO > Euromex Stereo zoom microscope NZ.1702-M, 6.5-55x, Column, Transmitted light, Binocular, Mirror for Dark field, Embryology
Product no.: 63375

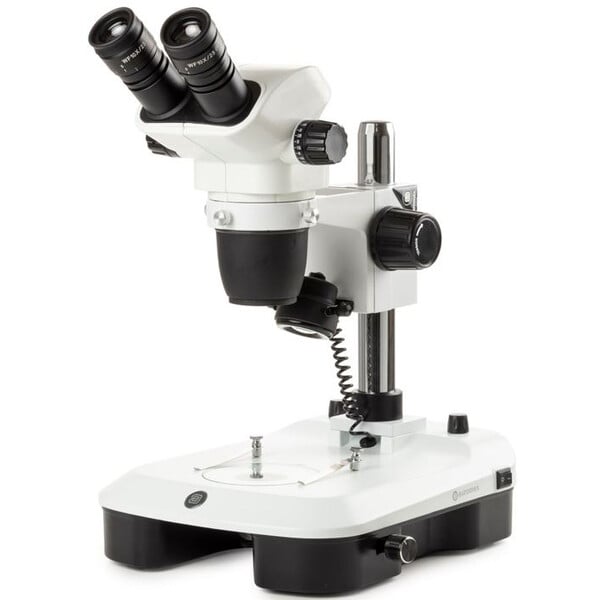

Stereo zoom microscope NZ.1702-M, 6.5-55x, Column, Transmitted light, Binocular, Mirror for Dark field, Embryology

$ 1,970.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

Nexius Zoom Evo

The NexiusZoom and NexiusZoom Evo stereo microscopes from Euromex enable you to examine your samples with high precision. They generate three-dimensional images for microscopy of the highest standards. These high-end zoom microscopes are perfect for analysing all types of surfaces or observing biological samples. The NexiusZoom stereo microscopes are available with a wide range of tripods and are supplied with or without LED lighting. Ideal for all types of educational and laboratory applications. With additional ancillary lenses and objectives, magnifications from 3.3x to 220x can be achieved

NexiusZoom EVO series

Technical

  • Eyepieces: Pair of WF 10x/23 mm, both eyepieces with ± 5 diopter adjustment
  • Head: Binocular or trinocular head with 45° oblique view, interpupillary distance adjustable from 54 mm to 75 mm
  • Objectives: Zoom from 1:8.4 objectives with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
  • Ancillary lens: 0.5x / 0.75x / 1.5x and 2.0x optional
  • Tripod: Ergonomically designed column or fixed arm stand with LED lighting and two object clamps or ergonomically designed overhanging stand with single or double arm with coarse adjustment, without lighting.
  • Material: Metal alloy, white lacquered
  • Optical parts are treated against fungi

NZ.1702-M, 6.5-55x, column, reflected and transmitted light, bino, mirrors for dark field, embryology

  • Eyepieces: WF 10x/23 eyepieces in 45° inclined tube with +/- 5 diopter adjustment
  • Magnification: from 6.5 to 55x
  • Field of view: from 32.8 mm to 24.9 mm
  • Free working distance: 110 mm
  • Maximum object height: 148 mm
  • Lighting: reflected light and transmitted light 3W LED, separately controllable
  • Packaged in a Styrofoam box
  • Tripod: Column
  • lighting:

- Incident light LED 3 W

-Transmitted light LED 3 W

- Mirrors for dark field

EYEPIEC ES

The NexiusZoom Evo comes with a pair of HWF 10x/ 23 mm eyepieces.

OBJECTIVES

The NexiusZoom Evo is equipped with a plan achromatic 1:8.4 objective with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm

Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.

Specifications

Optics


Eyepiece
10 (WF 10/23)
Magnification
0.65-5.5 (zoom lens)
Lamp type
-
Lighting
Incident light and transmitted light
Optical system
Greenough

Mechanics


Type of build
binocular
Working distance (mm)
110
Viewing posture (°)
45° oblique viewing

Special features


Dust cover bag
yes

General


Width (mm)
219
Length (mm)
266
Series
Nexius EVO

Matches the series


Nexius
-

Field of application


Industry
yes
Education
yes
Biology
yes

Area of application


Materials technology
yes
Mineralogy
yes
Metallurgy
yes
University
yes
Veterinary medicine
yes
Marine Biology
yes

Downloads

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
