Euromex NexiusZoom
The NexiusZoom stereomicroscopes are often used for professional industrial purposes, scientific research and education because of the excellent optical and mechanical properties while very attractively priced
- Standard wide field secured WF10x eyepices with 22 mm field of view
- 45° inclined, 360° rotatable bino- and trinocular stereo heads
- 0.67 to 45x Zoom objectif, parafocal over the entire zoom range with a working distance of 110 mm
- With optionale additional lenses, magnifications from 3.3x to 90 times can be achieved
- 2 read-to-use stereomicroscope models with ergonomic flat stand with 3 W LED diascopic and incident illumination
- 4 configuratieons with universal one arm or double arm stands

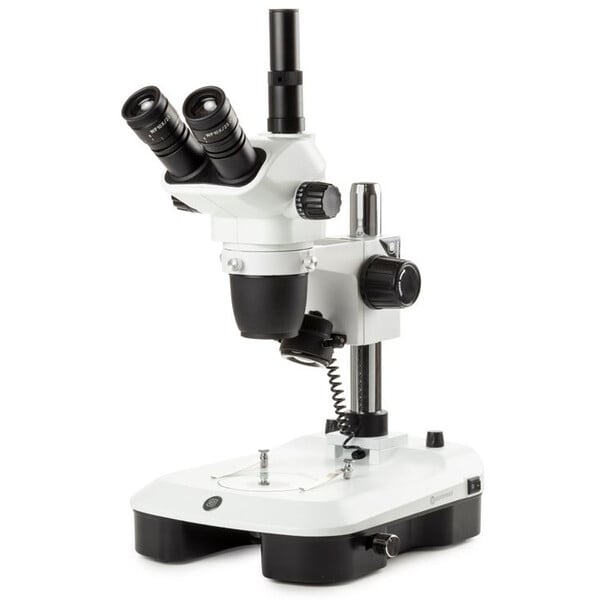

NZ.1903-M, 6.7-45x, column, reflected and transmitted light, trinocular, mirrors for dark field, embryology
- Objective: 0.67x - 4.5 x
- Eyepieces: WF 10x/22 eyepieces in 45° inclined tube with +/- 5 diopter adjustment
- Magnification: from 6.7 to 45x
- Field of view: from 33 mm to 4.9 mm
- Free working distance: 110 mm
- Tripod: stand column
- Maximum object height: 148 mm
- Lighting: reflected and transmitted light 3W LED, separately controllable Mirrors for DF and embryology
- Packaged in a polystyrene box
EYEPIECES
The Standard NexiusZoom is supplied with a pair of HWF 10x/ 22 mm eyepieces.
OBJECTIVES The standard NexiusZoom is equipped with a plan achromatic 1:6.7 objective with 0.67x to 4.5x magnification. Field of view from 33 mm to 4.9 mm. Large working distance of 110 mm
Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.
