SZ61 Comfort for Your Eyes – Precision for Your Work
The SZ61 new ComfortView eyepieces ensure fast, comfortable observation with the advantage of pupil aberration control, while the universal LED illumination stand brings together all the advantages of LED technology. The small angle convergence of the image-forming path in the Greenough optical system ensures excellent image flatness and depth of focus. Superior optical coatings provide high color fidelity. Antistatic materials and coatings protect specimens from electrostatic discharge. The SZ61 zoom stereo microscope is ideal for routine and advanced stereo microscopic observation, especially when documentation with digital imaging is required. The cost-efficient SZ51 zoom stereo microscope offers a broad range of functions for life sciences.
Wide Zoom Ratio
The SZ61 provides the magnification rage of 6.7x to 45x (using 10x eyepieces), with a wide zoom ratio of 6.7:1.

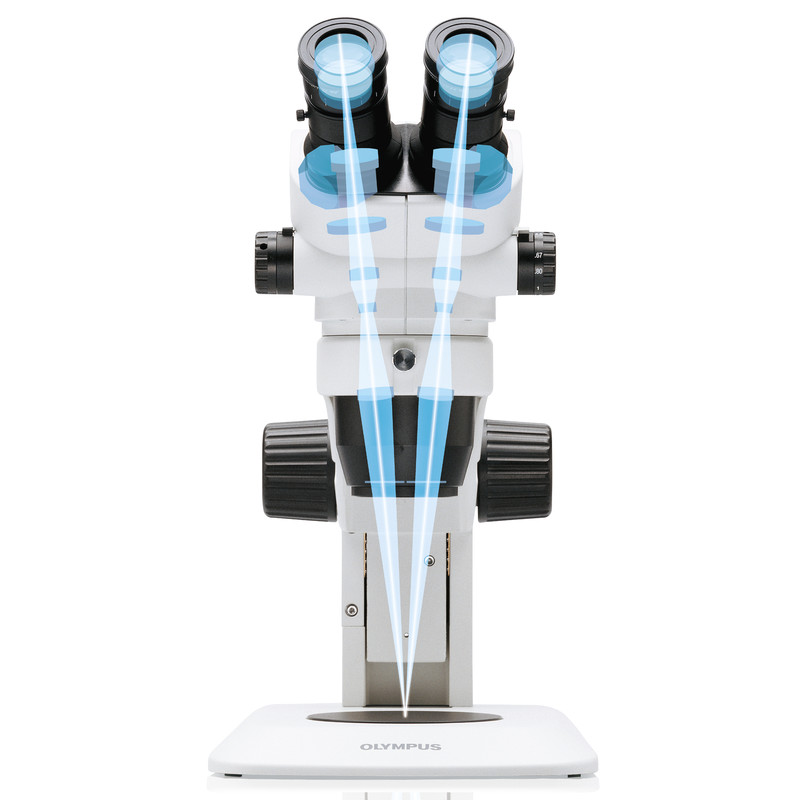

3 Dimensional Viewing
The optimum inward angle allows just the right combination of high level flatness and depth of focus for 3D viewing. Even a specimen with significant depth can be brought into focus from top to bottom for faster inspection.
ComfortView Eyepieces for Reduced Eyestrain
Quick, comfortable observation is ensured by this exclusive eyepiece design featuring pupil aberration control and appropriate positioning of the eyepoint. Also, superior optical coatings render true color images with fine detail.
LED Illumination
The universal reflected/transmitted light LED illumination stand brings together all the advantages of LED technology. The flat, high-brightness LEDs allow successful integration of transmitted illumination into a very slim base, which in turn facilitates easy specimen access and manipulation.

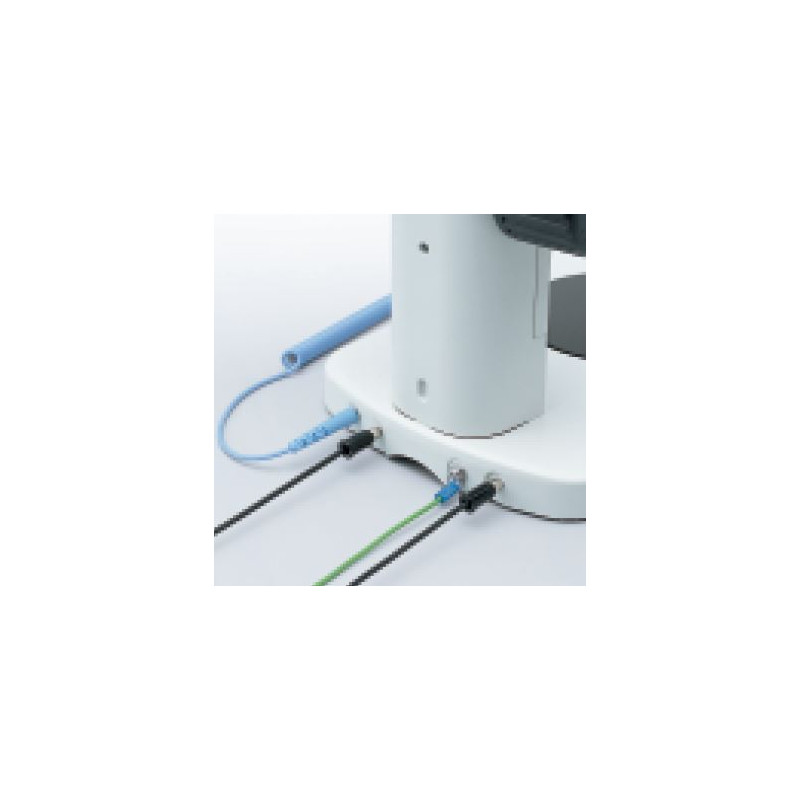

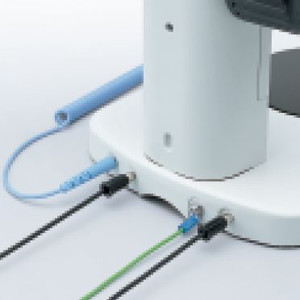

Electrostatic Discharge Protection
The main body and major accessories can quickly eliminate static electricity with the use of antistatic materials and coatings. This prevents a specimen under observation from electrostatic damage.
4 SETS are provided
- SZ61 without illumination to use with gooseneck
- SZ61 without illumination to use with ringlight
- SZ61 with transmitted light
- SZ61 wit incident and transmitted light

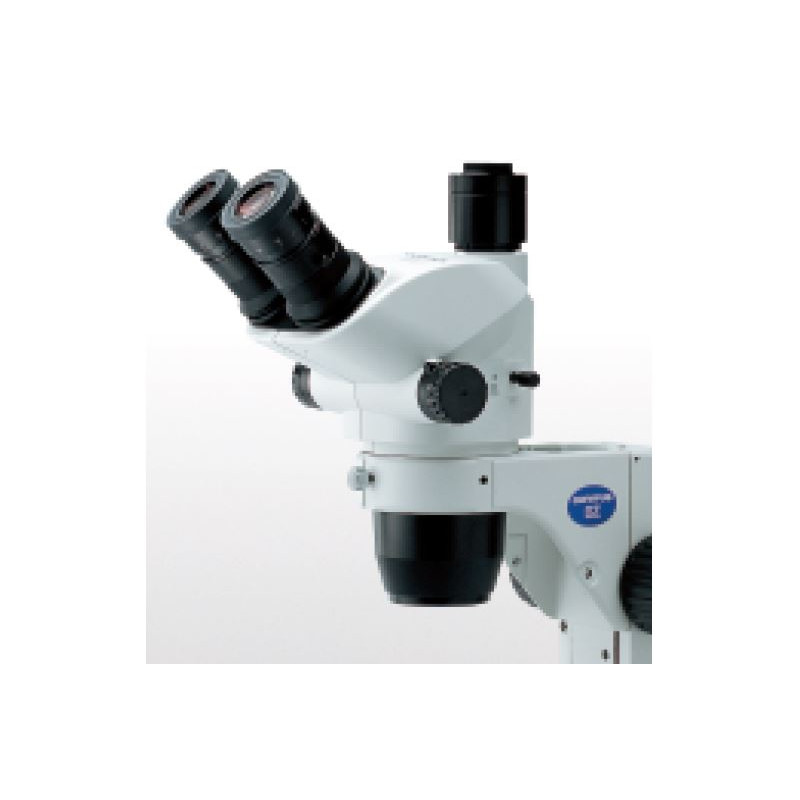

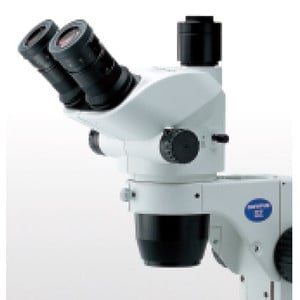

The SZ61 has a trinocular view with integrated 0.5x C-mount adaptors. The image scale is adjustable between 0.67 and 4.5x , allowing the magnification to be adjusted seamlessly between 6.7x and 45x. With a zoom ratio of 6.7:1, it is one of the best in its class.

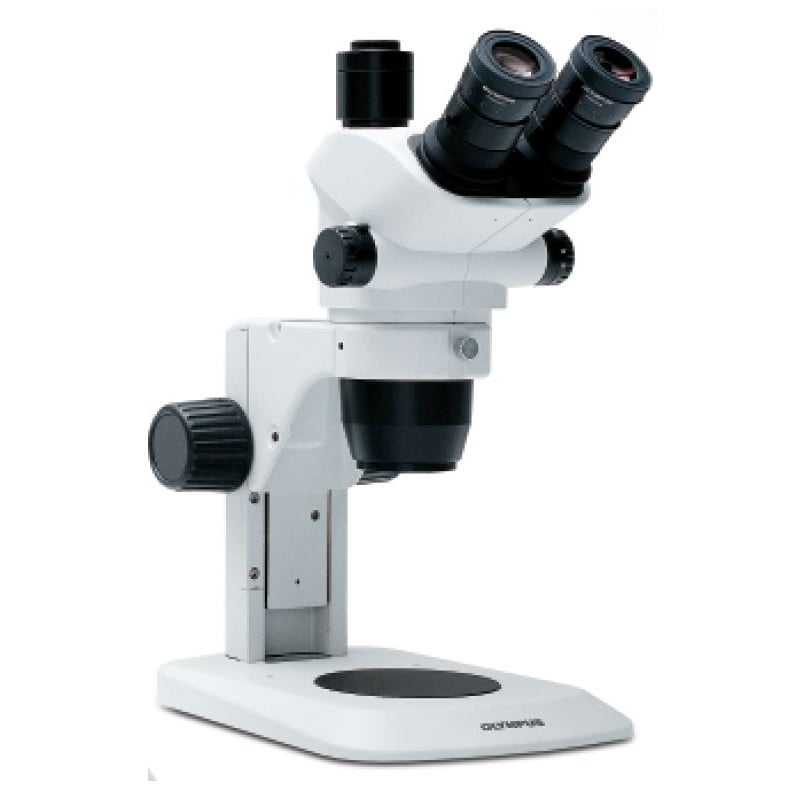

SZ61 trinocular microscope with ring light adapter for ring lights
- Microscope body with ESD properties and integrated trinocular tube
- Viewing angle 45°
- Two wide-field eyepieces with a field of view of 22
- Magnification range 0.67x - 4.5x
- Zoom ratio 6.7:1
- Variable eye relief 52 - 76 mm
- Working distance 110 mm
- Adjustable end stop for high/low magnification
- Integrated C-mount adaptor (0.5)
- Focus range 120 mm
- Black and white plate
- Ring light adapter
- Power cables, dust cover
- Cold light source/control unit and ring lights must be ordered separately!
