Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Evident Olympus > SZ61 > Evident Olympus SZ 61TR trinocular microscope, with incident and transmitted lighting
Product no.: 49367

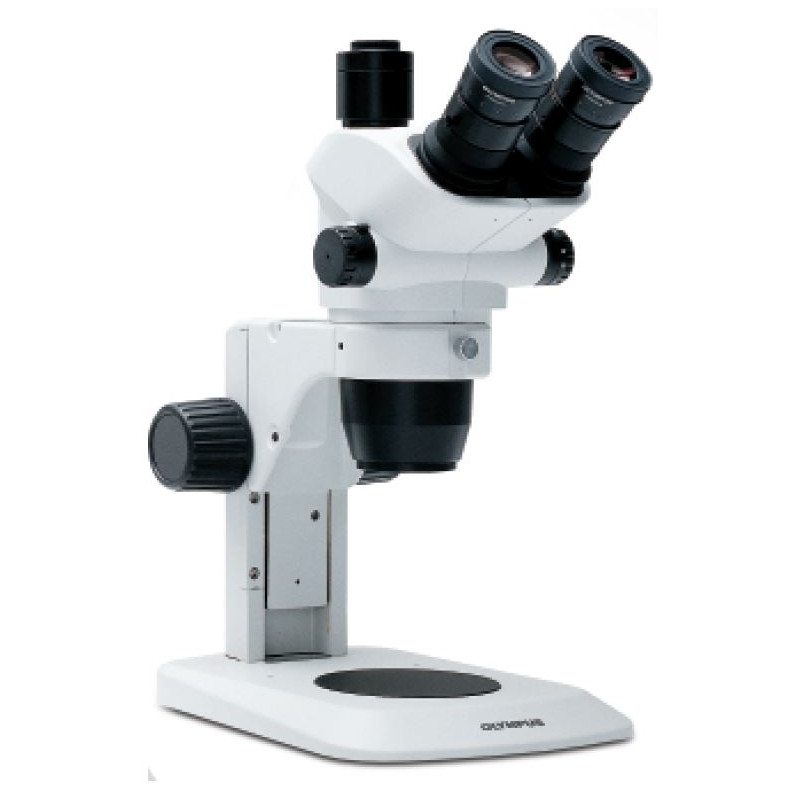

SZ 61TR trinocular microscope, with incident and transmitted lighting

$ 5,100.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series SZ61...

SZ61 Comfort for Your Eyes – Precision for Your Work

The SZ61 new ComfortView eyepieces ensure fast, comfortable observation with the advantage of pupil aberration control, while the universal LED illumination stand brings together all the advantages of LED technology. The small angle convergence of the image-forming path in the Greenough optical system ensures excellent image flatness and depth of focus. Superior optical coatings provide high color fidelity. Antistatic materials and coatings protect specimens from electrostatic discharge. The SZ61 zoom stereo microscope is ideal for routine and advanced stereo microscopic observation, especially when documentation with digital imaging is required. The cost-efficient SZ51 zoom stereo microscope offers a broad range of functions for life sciences.

Wide Zoom Ratio

The SZ61 provides the magnification rage of 6.7x to 45x (using 10x eyepieces), with a wide zoom ratio of 6.7:1.

3 Dimensional Viewing

The optimum inward angle allows just the right combination of high level flatness and depth of focus for 3D viewing. Even a specimen with significant depth can be brought into focus from top to bottom for faster inspection.

ComfortView Eyepieces for Reduced Eyestrain

Quick, comfortable observation is ensured by this exclusive eyepiece design featuring pupil aberration control and appropriate positioning of the eyepoint. Also, superior optical coatings render true color images with fine detail.

LED Illumination

The universal reflected/transmitted light LED illumination stand brings together all the advantages of LED technology. The flat, high-brightness LEDs allow successful integration of transmitted illumination into a very slim base, which in turn facilitates easy specimen access and manipulation.

Electrostatic Discharge Protection

The main body and major accessories can quickly eliminate static electricity with the use of antistatic materials and coatings. This prevents a specimen under observation from electrostatic damage.

4 SETS are provided

  • SZ61 without illumination to use with gooseneck
  • SZ61 without illumination to use with ringlight
  • SZ61 with transmitted light
  • SZ61 wit incident and transmitted light

Specifications

Optics


Lighting
Incident light and transmitted light
Lamp type
-
Magnification
45 (6,7 - 45)
Lens type
zoom lens
Eyepiece
10
Optical system
Greenough

Capacity


Optical zoom
0,67 - 4,5

Mechanics


Type of build
Trinocular
Viewing posture (°)
45° viewing angle, interpupillary distance adjustable from 52-76mm
Focusing
Coarse movement
Specimen stage
Stage plate
Working distance (mm)
110

Special features


Filter holder
yes

General


Suitable from
14
Series
SZ61

Field of application


Industry
yes
Medicine
yes
Education
yes
Biology
yes

Area of application


Metallurgy
-
University
yes
Marine Biology
yes

Miscellaneous


supplier product number
E0460032 (E07MIS0032)

Recommended accessories

Microscopy > Microscopy accessories (18)
Eyepiece

Evident Olympus Eyepiece WHSZ20X-H, ESD, 20x12.5, foc.

$ 412.00*
Microscopy > Other (1)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 10.90*
Baseprice: $ 2,180.00/L
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Evident Olympus SZ 61TR trinocular microscope, with incident and transmitted lighting

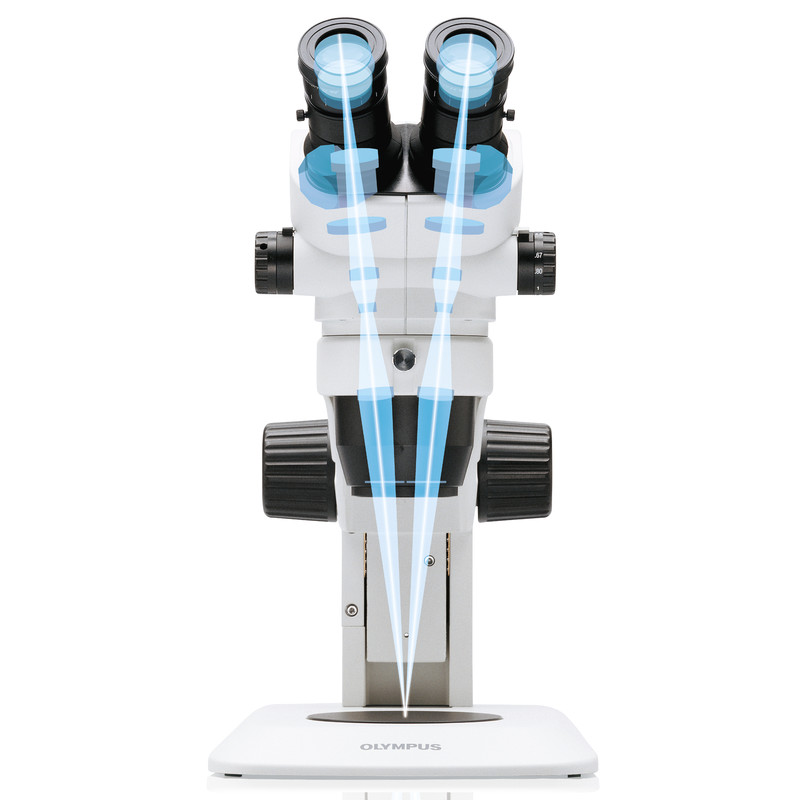

Stereo light path
Evident Olympus SZ 61TR trinocular microscope, with incident and transmitted lighting
trinocular zoom head
Evident Olympus SZ 61TR trinocular microscope, with incident and transmitted lighting
Ground wire connection
