Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Hund > Wiloskop > Hund Wiloskop stereo microscope - F Zoom with ST base - S, trinocular
Product no.: 44382

Wiloskop stereo microscope - F Zoom with ST base - S, trinocular

$ 1,650.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Wiloskop...

Hund Wiloskop, the Stereo-Zoom-Microscope for Industry and Biology

Features

The new trinocular stereo-zoom-microscopy head is the core of the Wiloskop system. A number of application-specifi c stands, illumination systems and documentation devices provide the proper system combination for a large variety of applications.

Main Features

  • Magnification up to 180x
  • Large field of view of 22 mm (with standard eyepieces)
  • Homogenous illumination by large-area incident and transmitted light LED’s
  • Large application spectrum in industry and biology

Application Areas

  • Industrial production and quality control
  • Mineralogical investigations
  • Preparation of biological samples

Stereo microscope Wiloskop - F Zoom with tripod ST - S

  • without lighting
  • Trinocular zoom body
  • Greenough system
  • Magnification range: 6.7x - 45x, with eyepieces WF 10 x / 22
  • Diopter adjustment: individually on both eyepiece sockets
  • Tripod pad: Heavy cast tripod pad with simple overhanging arm
  • Focusing mechanism: Double-sided focusing mechanism with lock
  • Lighting / contrast method: Lighting via external light sources

Specifications

Optics


Lighting
-
Eyepiece
10 (WF 10/23)
Magnification
6,7-45
Optical system
Greenough

Mechanics


Working distance (mm)
100
Type of build
Trinocular
Focusing
Control knobs on both sides
Specimen stage
-

Special features


Dust cover bag
yes

General


Weight (g)
10000
Series
Wiloskop

Field of application


Industry
yes
Medicine
yes

Area of application


Veterinary medicine
yes
Metallurgy
yes
Mineralogy
yes
Materials technology
yes
Semiconductor technology
yes
Odontotechnics
yes

Product safety

Manufacturer: Helmut Hund GmbH, Artur-Herzog-Str. 2, 35580 Wetzlar, DE, www.hund.de

Recommended accessories

Microscopy > Microscopy accessories (6)
no image

Hund Objective 0.3X ancillary lens for Wiloskop microscope

$ 134.00*
Microscopy > Other (1)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Hund Wiloskop stereo microscope - F Zoom with ST base - S, trinocular

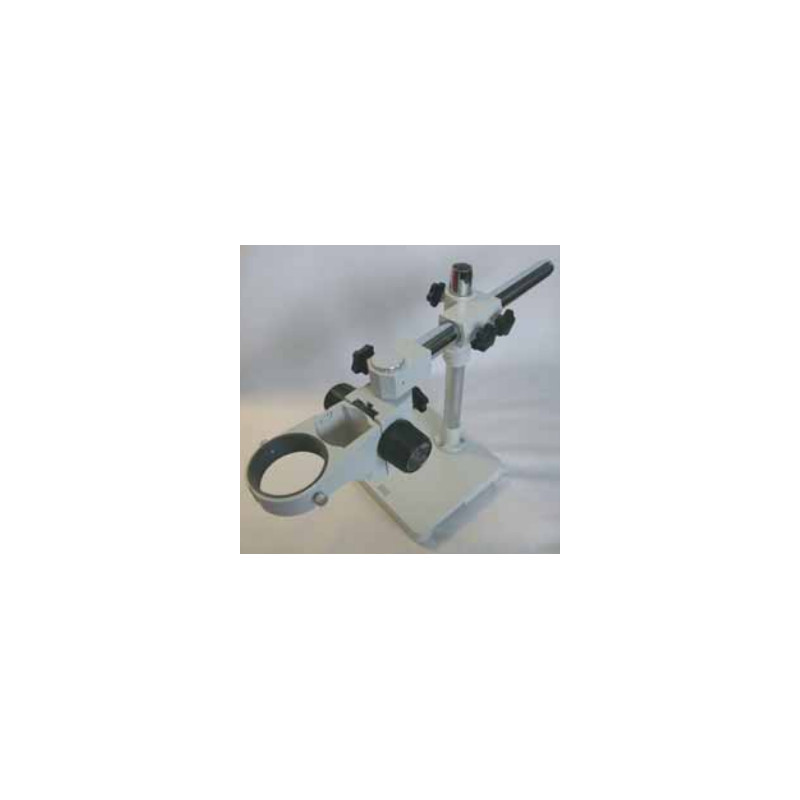

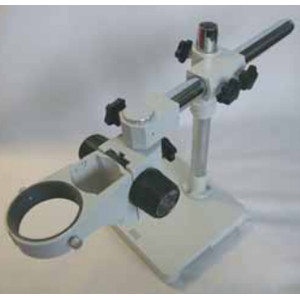

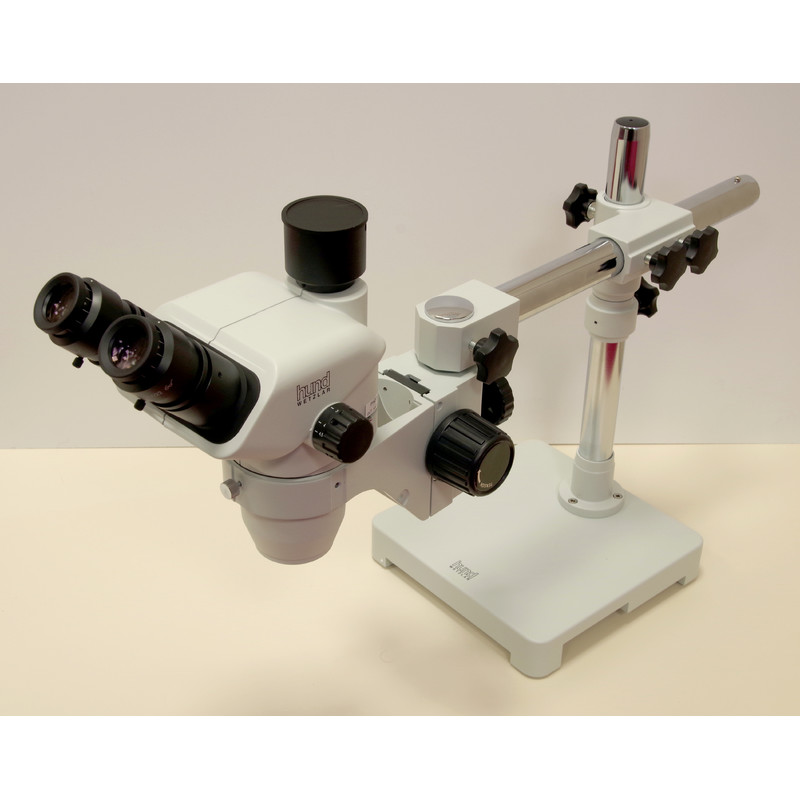

Tripod ST-S, without lighting
Hund Wiloskop stereo microscope - F Zoom with ST base - S, trinocular
Weld seam
Hund Wiloskop stereo microscope - F Zoom with ST base - S, trinocular
Inclusions in foil
Hund Wiloskop stereo microscope - F Zoom with ST base - S, trinocular

Minerals

Hund Wiloskop stereo microscope - F Zoom with ST base - S, trinocular

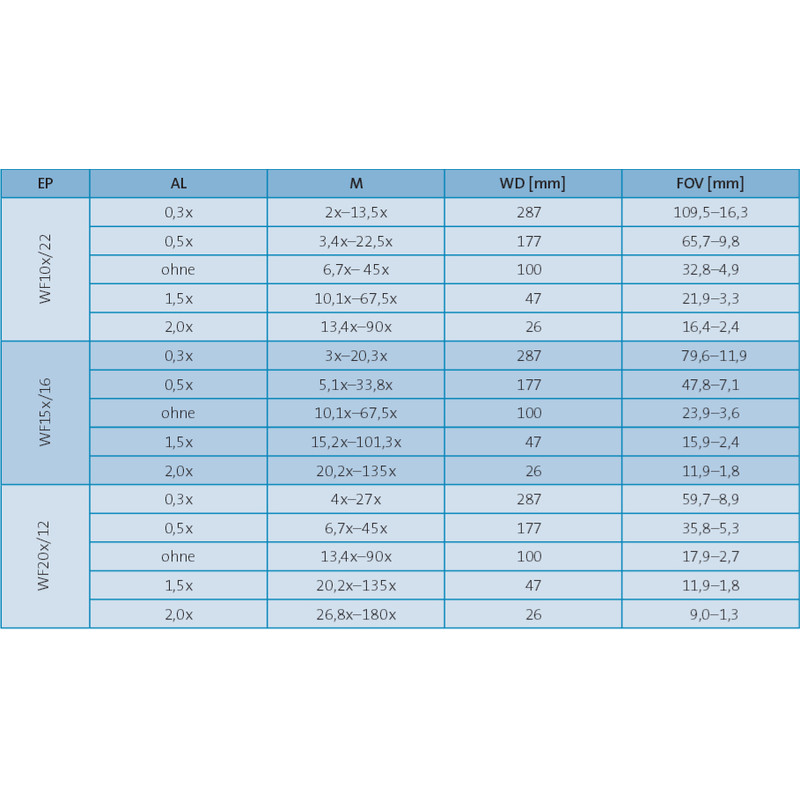

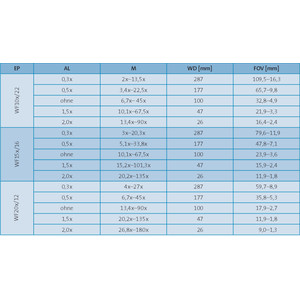

Optical specifications Wiloskop

The following table shows the total magnifications (M), working distances (WD) and field of view (FOV) when using different auxiliary lenses (AL) and eyepieces (EP).
