Hund Wiloskop, the Stereo-Zoom-Microscope for Industry and Biology
Features
The new trinocular stereo-zoom-microscopy head is the core of the Wiloskop system. A number of application-specifi c stands, illumination systems and documentation devices provide the proper system combination for a large variety of applications.
Main Features
- Magnification up to 180x
- Large field of view of 22 mm (with standard eyepieces)
- Homogenous illumination by large-area incident and transmitted light LED’s
- Large application spectrum in industry and biology
Application Areas
- Industrial production and quality control
- Mineralogical investigations
- Preparation of biological samples
Stereo microscope Wiloskop -F-Zoom with tripod ST without lighting
This stereo microscope is designed for use with an external light source.
Trinocular zoom body
Greenough system
Magnification range: 6.7x - 45x, with eyepieces WF 10 x / 22
Diopter adjustment: individually on both eyepiece sockets
Tripods & mounts
Focusing drive: Double-sided focusing drive with lock, height adjustment ring for focusing drive
Object support: Black/white interchangeable plate inserted in tripod pad. 2 specimen clamps
Lighting / contrast method: Lighting via external light sources

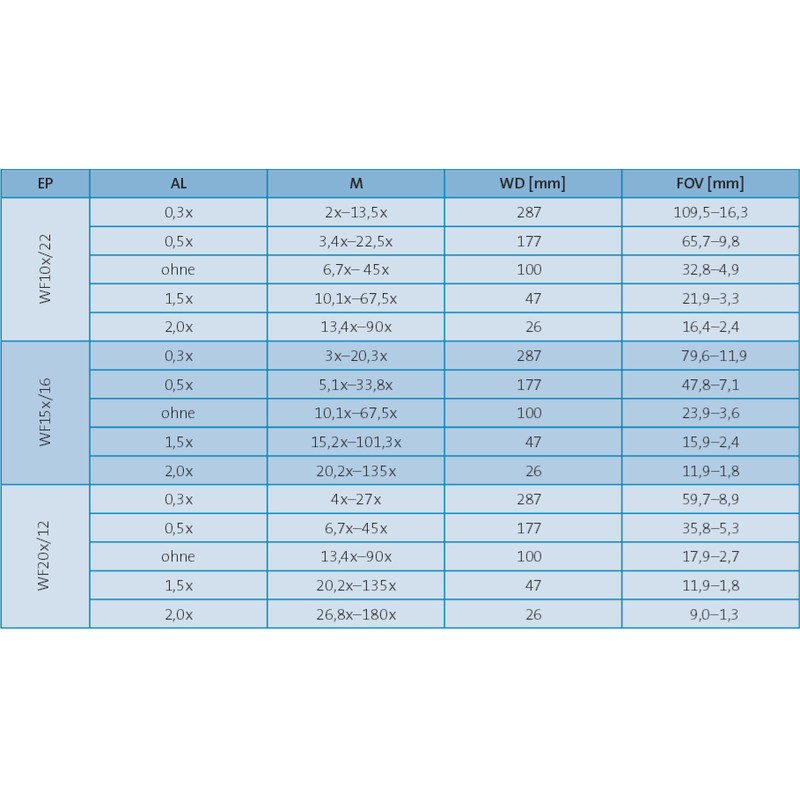

Please refer to the table for the optical specifications.
