More about the series OZM...

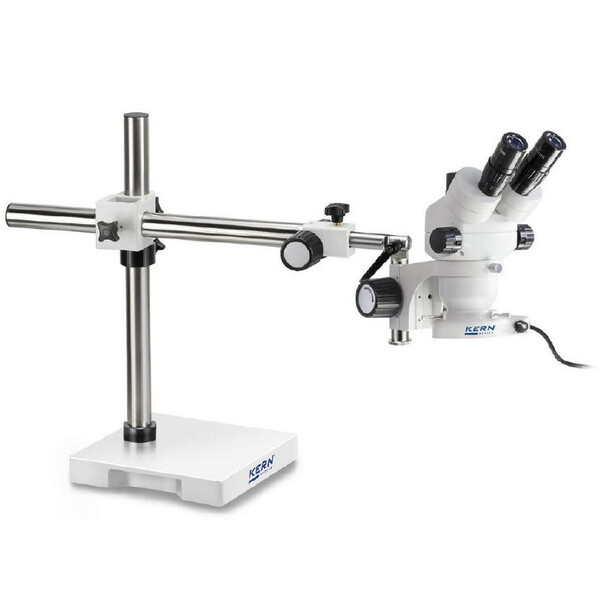

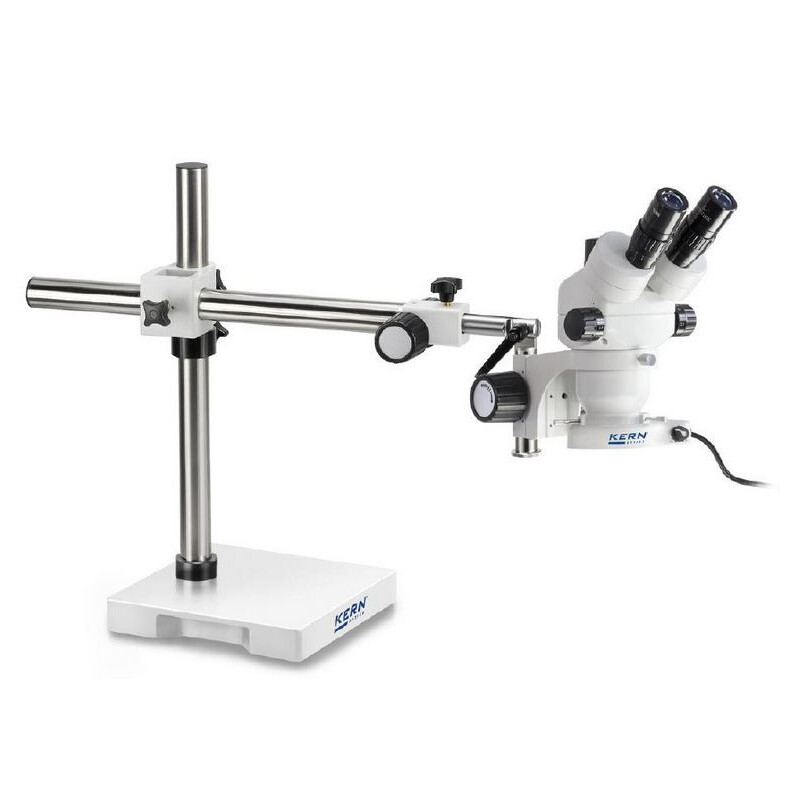

OZM 912, bino, 7x-45x, HSWF 10x23 mm, Tripod, single-arm (430 mm x 385 mm) w. stage, LED ring light 4.5 W
- The KERN OZM-9 includes excellent stereo zoom microscopes with above-average optical performance
- The standard 4.5W LED ring lighting ensures optimum lighting of your sample
- In addition to the large working distance, an extra-large field of view and brilliant resolution, the KERN OZM-9 delivers colour-fast and depth-of-field images with high contrast
- The zoom objective allows you to continuously vary the magnification from 7× to 45×.
- You can choose between a binocular model and a trinocular model for connecting a camera for documentation and quality reports
- The extendable telescopic arm stand allows you to adjust the height to suit your sample. An additional extendable column in the horizontal axis of the telescopic arm guarantees you additional reach
Head:
- Optical system: Greenough optics
- Eyepieces: 10x/23
- Working distance: 110 mm
- Tube 45° inclined, 360° rotatable
- Magnification ratio: 6.4:1
- Eye relief: 52.0–76.0 mm
- Diopter adjustment on both sides
Tube: Binocular

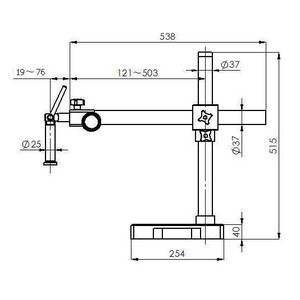

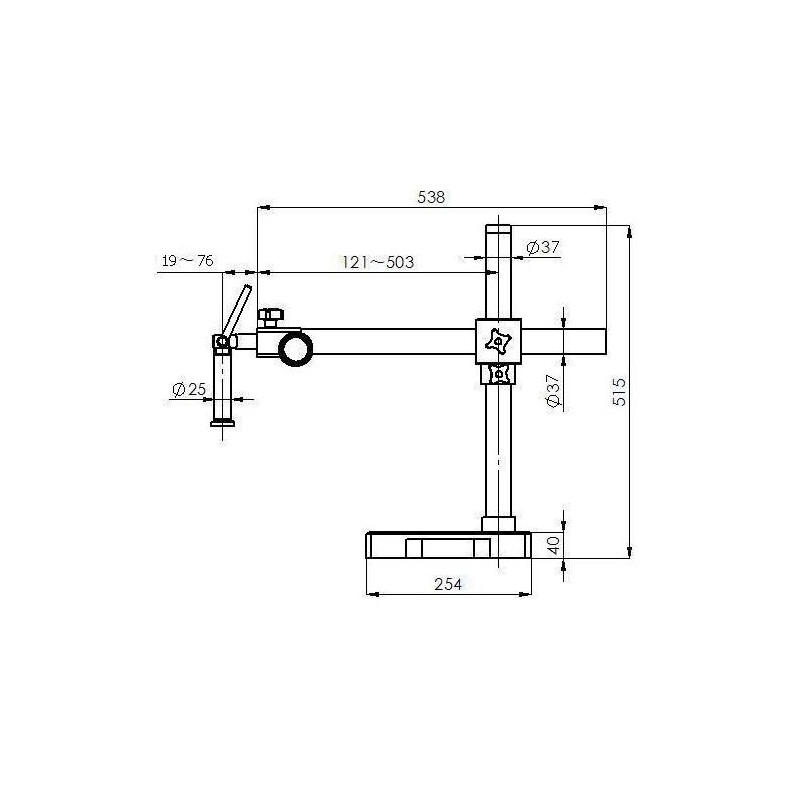

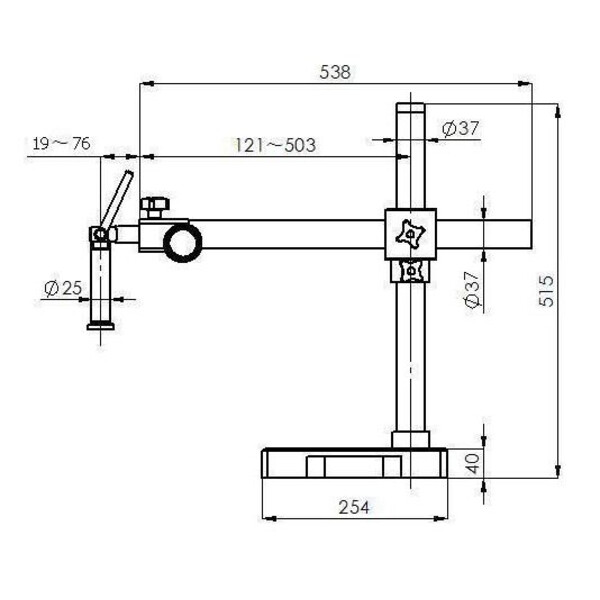

Tripod: Single arm with base plate
Heavy-duty design!
Actual product may differ from image!
