Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Kern > OZM > Kern Stereo zoom microscope OZM 913, trino, 7x-45x, HSWF 10x23 mm, Tripod, single-arm (515 mm x 614 mm) with stage, LED ring light 4.5 W
Product no.: 66660

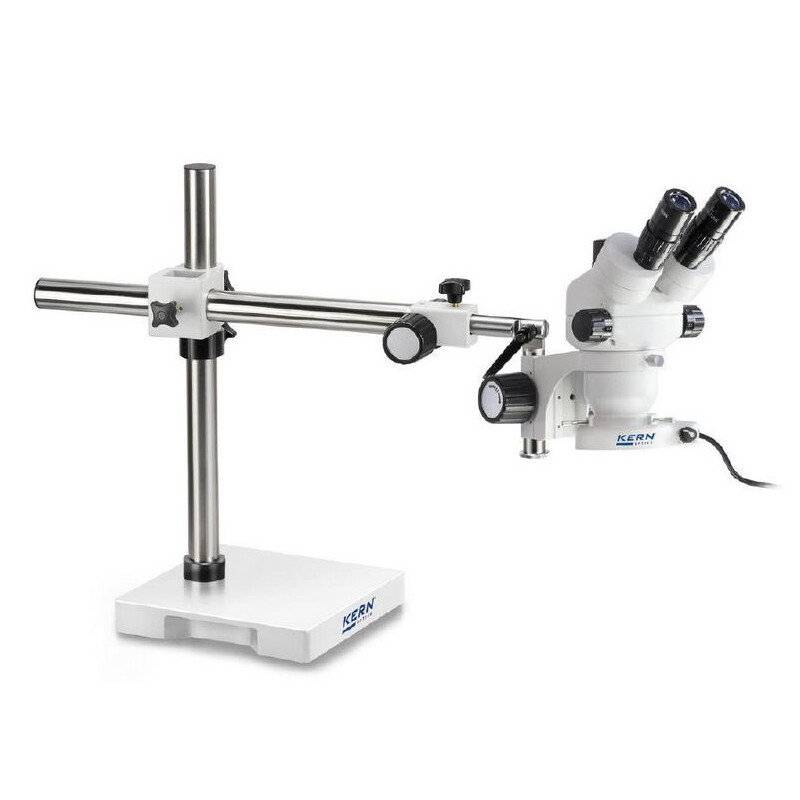

Stereo zoom microscope OZM 913, trino, 7x-45x, HSWF 10x23 mm, Tripod, single-arm (515 mm x 614 mm) with stage, LED ring light 4.5 W

$ 2,840.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series OZM...

OZM 913, trino, 7x-45x, HSWF 10x23 mm, Tripod, single-arm (515 mm x 614 mm) with stage, LED ring light 4.5 W

  • The KERN OZM-9 includes excellent stereo zoom microscopes with above-average optical performance
  • The standard 4.5W LED ring lighting ensures optimum lighting of your sample
  • In addition to the large working distance, an extra-large field of view and brilliant resolution, the KERN OZM-9 delivers colour-fast and depth-of-field images with high contrast
  • The zoom objective allows you to continuously vary the magnification from 7× to 45×.
  • You can choose between a binocular model and a trinocular model for connecting a camera for documentation and quality reports
  • The extendable telescopic arm stand allows you to adjust the height to suit your sample. An additional extendable column in the horizontal axis of the telescopic arm guarantees you additional reach

Head:

  • Optical system: Greenough optics
  • Eyepieces: 10x/23
  • Working distance: 110 mm
  • Tube 45° inclined, 360° rotatable
  • Magnification ratio: 6.4:1
  • Eye relief: 52.0–76.0 mm
  • Diopter adjustment on both sides
  • Tube: Trinocular

Beam splitting: 50:50

Heavy-duty design!

Specifications

Optics


Image scale
7x-45x
Lighting
Incident light
Condensor
-
Eyepiece
10/23
Power supply
-
Magnification
45
Optical system
Greenough

Mechanics


Type of build
Trinocular
Working distance (mm)
110
Viewing posture (°)
45° angled eyepiece, 360° rotatable
Focusing
Coarse movement (Control knobs on both sides)
Specimen stage
-

Special features


Rechargeable battery operation
-
Filter holder
-
Built-in digital camera
-
Luminous field diaphragm
-
Centering stage
-
Dust cover bag
yes

General


Series
OZM
Colour
white

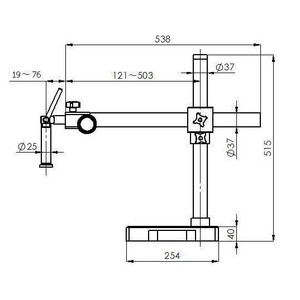

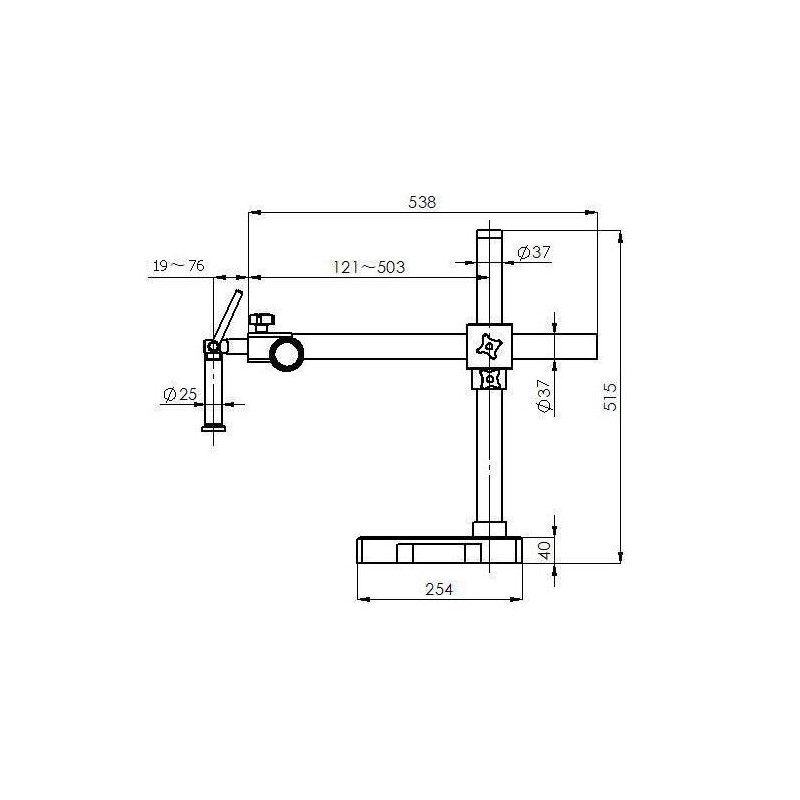

Height (mm)
515
Length (mm)
538
Width (mm)
254
Weight (g)
25000

Area of application


Mineralogy
yes

Miscellaneous


supplier product number
OMZ-91

Downloads

Product safety

Manufacturer: KERN & Sohn GmbH, Ziegelei 1, 72336 Balingen, DE, http://www.kern-sohn.com/
