Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Motic > SMZ-160 > Motic Stereo Zoom Microscope SMZ-160-TLED, LED, 0.75x-4.5x
Product no.: 77802

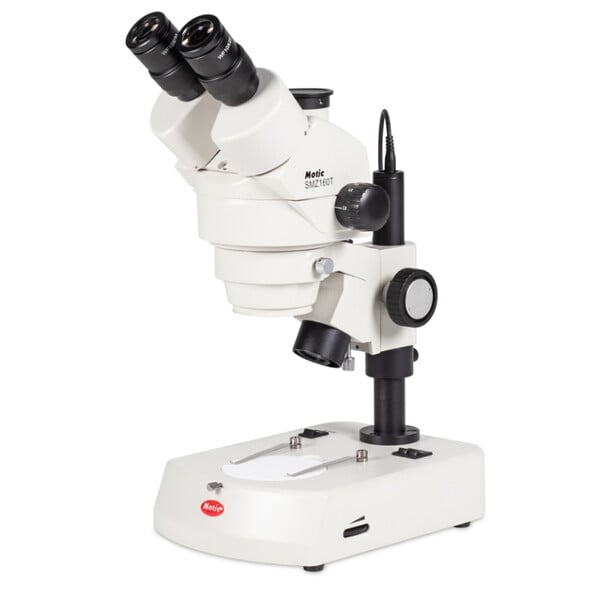

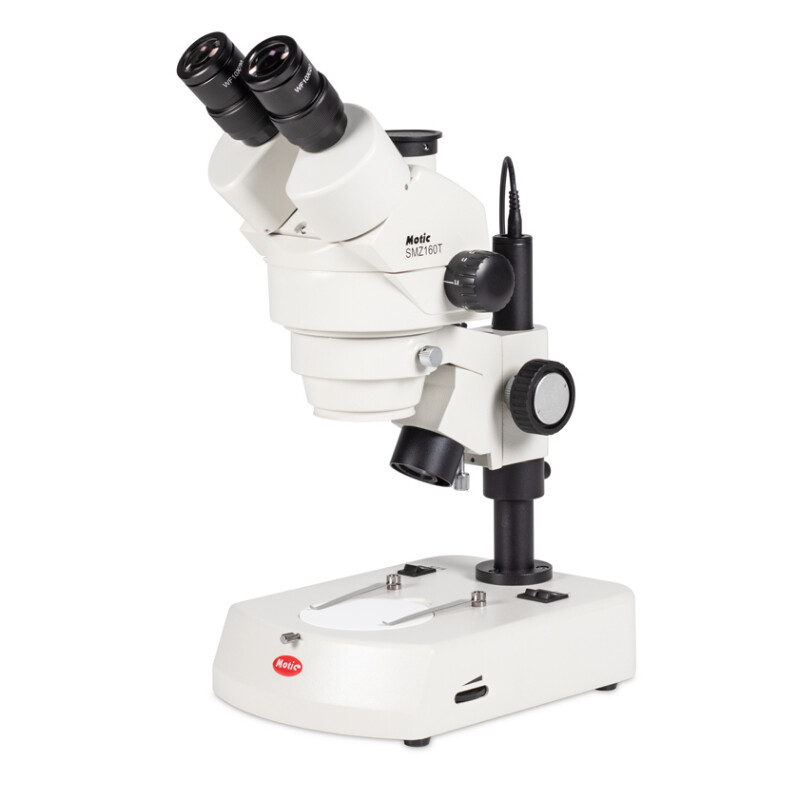

Stereo Zoom Microscope SMZ-160-TLED, LED, 0.75x-4.5x

$ 1,220.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Highlights of the SMZ-160 series

  • Greenough system
  • Field of view: 20
  • Magnification range from 7.5X to 45X
  • Zoom 6:1
  • Click stops enable precise reproduction of magnification during measurements

Specification SMZ-160-TLED (1100201300181)

Optical system: Greenough

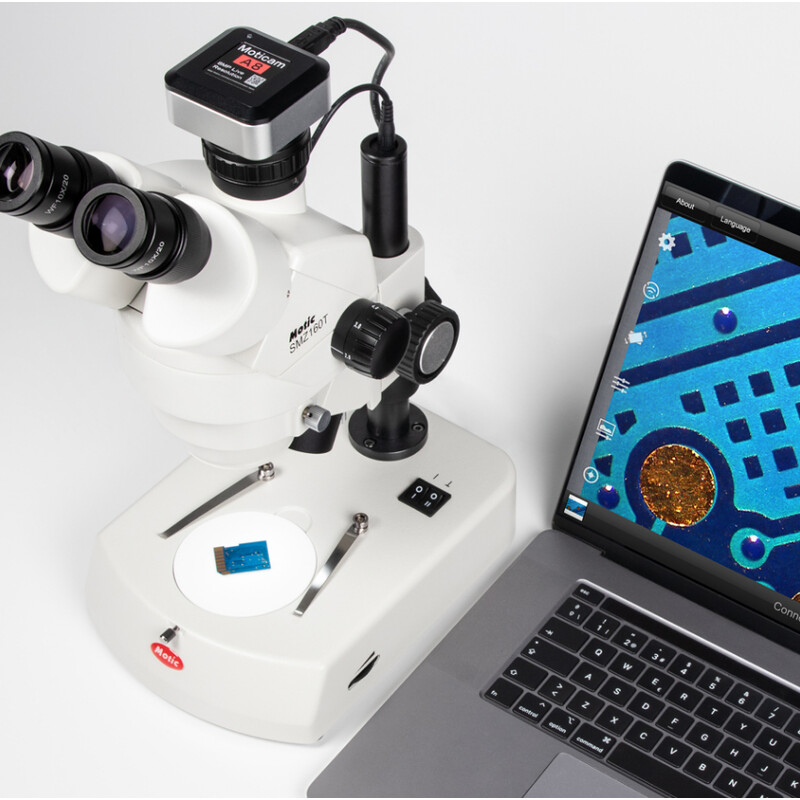

Observation tube: Trinocular head

Viewing angle: 45º inclined

Beam splitter Trinocular tube: 50:50 fixed

Pupillary distance: 50-75 mm

Diopter adjustment: On both eyepiece sockets, +/- 5 diopters

Eyepieces: Wide field WF10X/20mm

Objective system: Zoom ratio 6:1

Lenses: 0.75X - 4.5X

Working distance: 100 mm

Tripod type: Column tripod with transmitted light illumination

Headmount: For Ø25mm column and Ø76mm head with incident light illumination

Focus: Coarse focus with smoothness adjustment

Focusing travel: 43 mm

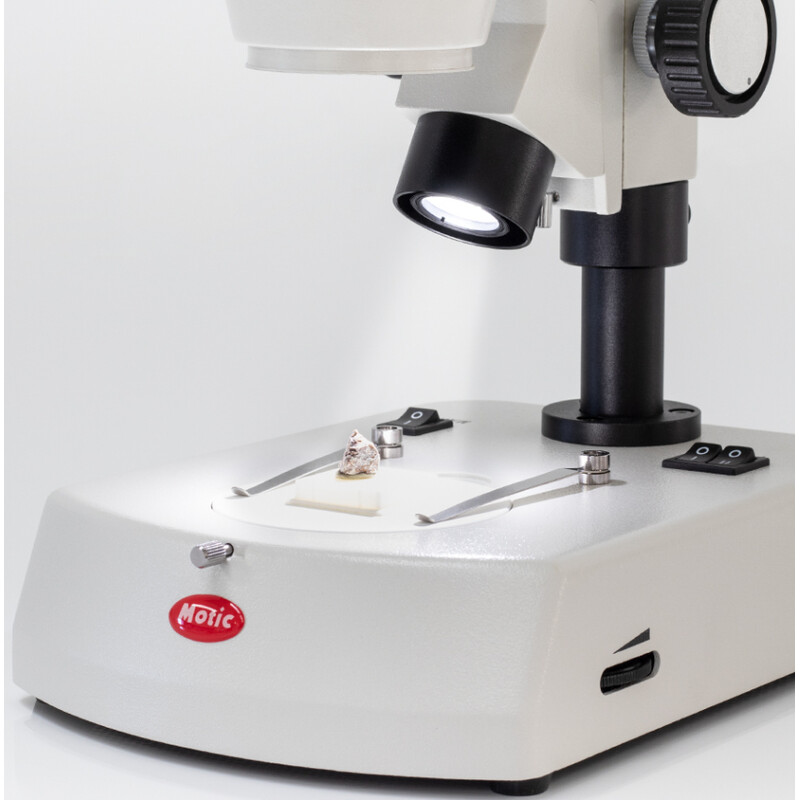

Incident light illumination: LED 3W with intensity control

Transmitted light illumination: LED 3W with intensity control

Transformer: External

Power supply: 100 -240V (CE)

Dimensions LxWxH: 237x170x398 mm

Base plate: 237 x 170 mm

Stand column / arm: Height 205 mm / Ø25 mm

Net weight: 3.7 kg

Scope of delivery: Dust cover, 1 black/white table insert plate, 1 frosted glass table insert plate

Contrast methods:

Bright field: Yes

Dark field: with optional add-on

Polarization: with optional add-on

Specifications

Optics


Magnification
7,5x-45x
Eyepiece
10
Lighting
Incident light and transmitted light
Lamp type
-
Optical system
Greenough
Zoom shot
yes

Capacity


Incident light
ja
Transmitted light
ja
Field of view value
20

Mechanics


Type of build
Trinocular
Focusing
Coarse movement
Viewing posture (°)
45° angled eyepiece, 360° rotatable
Specimen stage
Specimen stage
Working distance (mm)
100mm

Special features


Centering stage
-
Dust cover bag
yes
Wide-angle eyepiece
yes

General


Colour
grey/black
Series
SMZ-160
Weight (g)
3700
Width (mm)
170
Length (mm)
237
Height (mm)
398

Field of application


Industry
yes
Education
yes

Area of application


Odontotechnics
yes
Veterinary medicine
yes
University
yes
Semiconductor technology
yes
Metallurgy
yes
Materials technology
yes
Gemology
yes
Automotive
yes

Miscellaneous


supplier product number
1100201300181

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
