Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Motic > SMZ-140 > Motic Stereo zoom microscope SMZ140-N2GG
Product no.: 48006

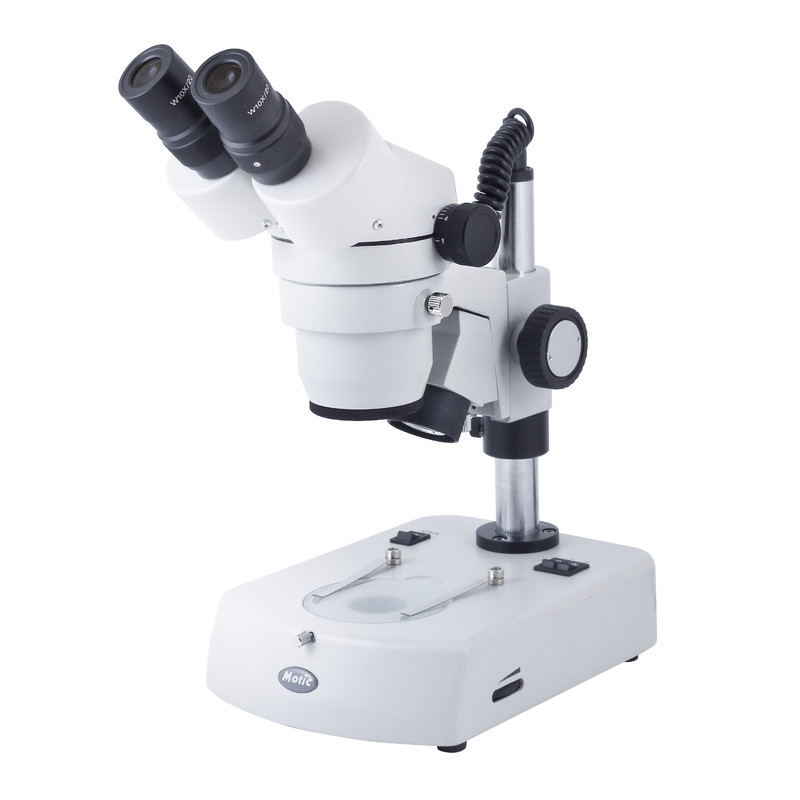

Stereo zoom microscope SMZ140-N2GG

$ 650.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series SMZ-140...

SZM-140

Make use of the convenience and versatility of seeing a large part of your sample image at 10X magnification, then zooming continuously to close-up details at 40X…or any point in between. The SMZ140 Series offers a high optical performance combined with a special designed incident and transmitted intensity controlled halogen illumination.

Specification SZM 140

  • Model: SMZ-140-N2GG
  • Optical System: Greenough
  • Observation Tube: Binocular head
  • Interpupillary distance: 54-76mm
  • Diopter adjustment: On both tubes , +/- 5 diopter
  • Inclination: 45° inclined, 360º rotating
  • Eyepieces: WF10X/20mm
  • Objectives system: Zoom, ratio1:4
  • Objectives magnification: 1X~4X
  • Working distance: 80mm
  • Stand: Pole type stand with transmitted illumination
  • Base: 237x170mm
  • Column/Arm: Ø25mm, 266mm high
  • Head holder: For Ø25mm column and Ø74mm head with incident illumination
  • Focus mechanism: Coarse focusing system with tension adjustment
  • Focusing stoke: 49mm
  • Incident illumination: Halogen 12V/15W with intensity control
  • Transmitted illumination: Halogen 12V/10W with intensity control
  • Transformer: Internal
  • Power supply: 220V
  • Accessories included: Black, white and frosted stage plates and dust cover
  • Length x Width x Height: 237x170x335mm
  • Weight: 6,2Kg

Specifications

Optics


Magnification
40
Eyepiece
10
Lighting
Incident light and transmitted light
Lamp type
Halogen
Power supply
100-240V, VDE plug (CE) mains adaptor
Optical system
Greenough

Capacity


Brightness control
yes

Mechanics


Type of build
binocular
Focusing
Coarse movement
Viewing posture (°)
45° angled eyepiece
Specimen stage
Specimen stage (black/white)
Working distance (mm)
80

Special features


Centering stage
-
Dust cover bag
yes
Filter holder
-
Wide-angle eyepiece
yes

General


Colour
grey/black
Series
SMZ-140

Field of application


Medicine
yes
