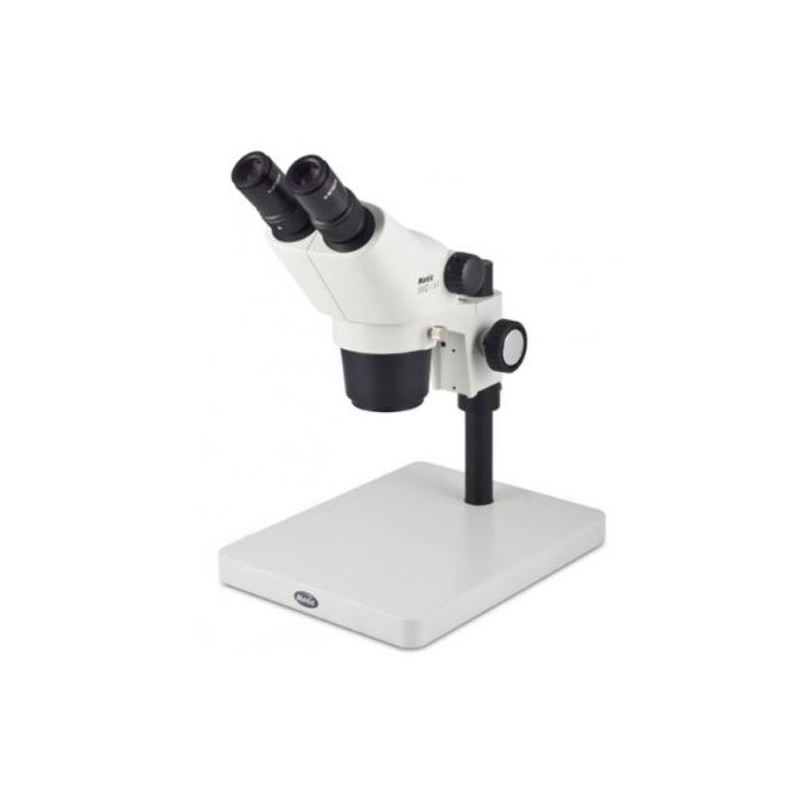

Stereozoommikroskop SMZ-161-BP, 0.75x-4.5x

SMZ-161

Motic’s new SMZ-161 Stereo Zoom microscope joins the widespread success of the SMZ Stereo family by introducing light materials as well as a new, improved LED illumination options. Convincing optical performance, combined with a small footprint and robust mechanics, makes the SMZ-161 the ideal stereo microscope for teaching situations in High Schools and Universities. The Greenough optical system delivers clear and distortion-free images with an improved zoom range of 6:1. Parfocality is ensured while running through the complete magnification range; while a click-stop mechanism, implemented in the continuous zoom, enables precise reproduction of magnifications. The extended 110mm working distance in its standard configuration gives sufficient space for sample manipulation, using its convincing 3-dimensional upright image.

Zoom Range

With the SMZ-161, it is now both an easy and effortless task to step from a sample overview down to minute details. One precise rotation of the zoom knob gives access to the complete magnification range. The 6:1 zoom ratio delivers a standard magnification range of 7.5X-45X. Due to the parfocal optical design, a readjustment of the focus position is not necessary while zooming. To increase the model´s magnification range a complete selection of auxiliary objectives and eyepieces are available - extending the SMZ-161´s total magnification range from 2.25X up to 180X.

Auxiliary Objectives

The standard SMZ-161 configuration comes with a 110mm working distance, offering ample space for sample manipulation. The maximum field diameter (with lowest zoom position and standard 10X/20 eyepieces) is 26.7mm. Higher magnifications can be achieved by using the following auxiliary objectives,

(following even ESD requirements):

MagnificationW.D.(mm)Max. Field Diameter(10x20 Eyepiece)

1.5x56.317.8

2x38.613.3

A larger sample overview is possible by choosing the following auxiliary objectives:

MagnificationW.D.(mm)Max. Field Diameter(10x20 Eyepiece)

0.3x30188.9

0.5x191.853.3

0.63x142.742.3

0.75x128.635.6

3-D Image

Thanks to its compact dimensions and robust mechanics, Motic’s SMZ-161 is ideal for any kind of teaching application. Based on the Greenough Optical System with its completely separated viewing paths, the SMZ-161 delivers distortion-free 3-D images. Also further enhancing its image quality, multi-layered lens coatings deliver high contrast images with reduced internal reflections.

The Working Distance

With its standard configuration, the SMZ-161 provides a large working distance of 110 mm, which can be easily extended to 301mm (with additional auxiliary objective 0.3X). To achieve a desired total magnification, objective magnifications less than 1X may be compensated by using higher eyepiece magnifications

(up to 20X).

Standard Packages

Motic’s SMZ-161 optical heads come as Binocular or Trinocular versions, each with a 45° viewing angle, WF10X/20 eyepieces and built-in 1X objective lens. For special experimental setups or OEM inspection applications, a compact Binocular head with 60° viewing angle is also available. The anti-fungus treatment of all optics allows the use of the SMZ-161 in a variety of humid environments.

Modular Configuration

Besides the Standard packages, the SMZ-161 system also offers modular components for a personal configuration depending on the requirements of the workplace set-up. The industrial boom stands for larger viewing samples may replace the Plain and Transmitted light stands to increase user freedom significantly. All these stands require a separate illumination system following the requirements of the sample.

Illumination

Illumination is a critical issue to ensure the proper image rendering when using a stereo microscope. Motic offers a wide range of illumination options to be combined with the SMZ-161 optics. Especially for living samples in biology, Motic recommends LED illumination due to its negligible heat development and

minimized impact on living specimens. A more powerful solution is provided by the Motic Cold light source MLC-150. A variety of light guides for flexible illumination options are also available.

General Specifications

• Greenough Optical System

• Achromatic optics with anti-fungus treatment

• Widefield binocular/trinocular 45º observation tube (light distribution 0:100 left eyetube/trinotube in photo position)

• Widefield high eyepoint eyepieces, WF 10X/20 with diopter adjustment on both eyepiece tubes +/- 5dpt

• Interpupillary distance 50-75mm

• Zoom 6:1; 5 clickstops

• 7.5X-45X Standard magnification

• Working distance 110mm

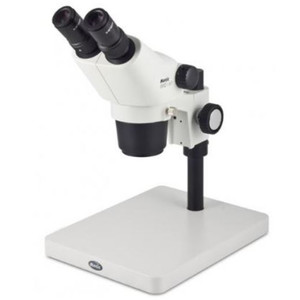

SMZ-161_BP

Spezification

• Greenough zoom optical system
• Binocular head, 45º inclined, 360º rotating
• Widefield eyepieces WF10X/20mm
• 6:1 Zoom ratio, WD=110mm
• Objective magnification range: 0.75X-4.5X
• Plain stand
• Head holder without light
• Coarse focusing system with tension adjustment
• Black/White stage plate and dust cover
