More about the series Stemi 305...

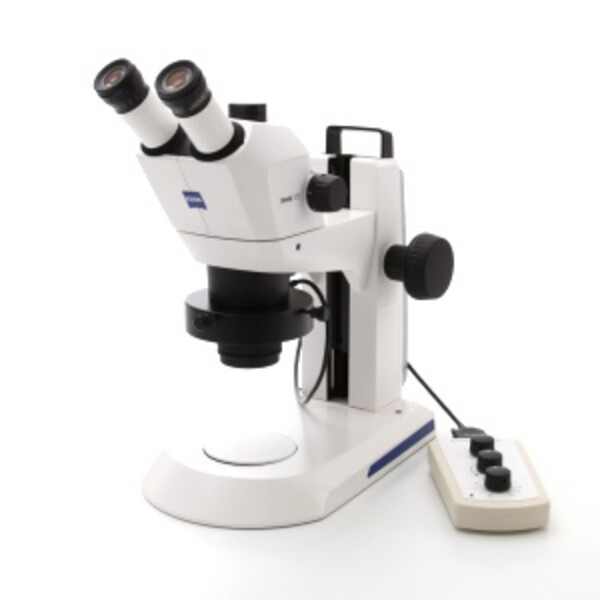

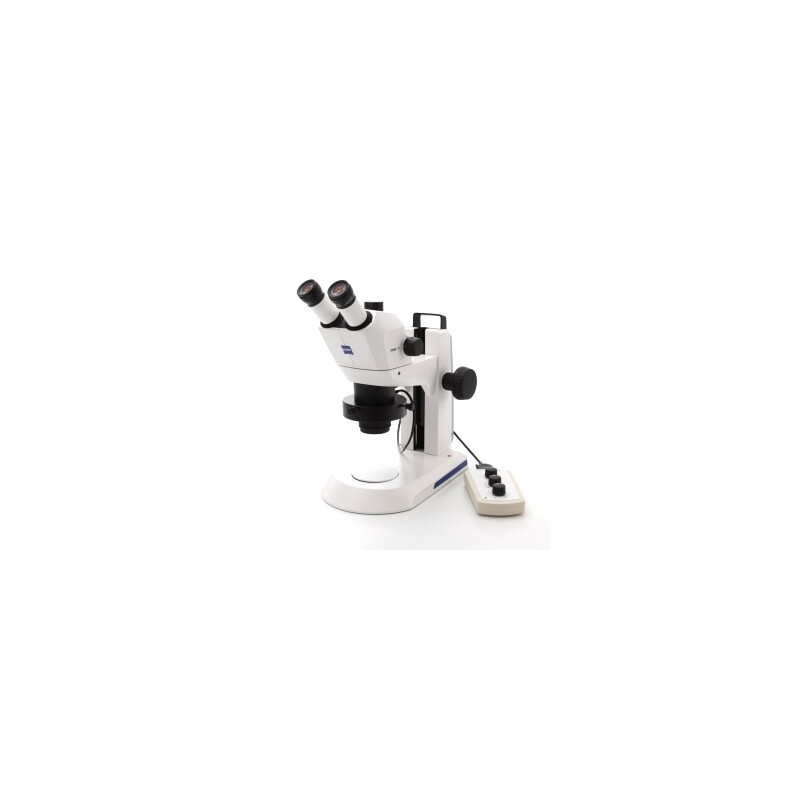

Stemi 305 is your compact Greenough stereo microscope for biology lessons, laboratories and industrial production environments. A 5:1 zoom allows magnifications of 8x to 40x without an attachment system (4x to 200x with attachment system). This ZEISS Stemi 305 set with Flexi tabletop tripod and Stemi Spot vertical illumination is ideal and ready for use in dental workplaces. We particularly recommend the 0.5x attachment lens as an accessory for increased working distance.
Microscope set consisting of:
Stemi 305 trino microscope body
- with camera output (fixed division 50:50, vis:doc) with integrated C-mount camera adapter 0.5x
- Greenough system with stereo angle 11°
- Manual, double-sided zoom 5:1 (0.8x...4.0x)
- Fixed zoom lock positions 0.8x-1x-2x-3x-4x
- Free working distance without attachment system 110 mm
- Viewing angle 45° with adjustable eye relief 55 to 75 mm
- Eyepiece mount 30 mm with maximum field of view 23 mm
- Mounting D=76 mm for Stemi carrier/carrier S
- Interface D=66 mm for lights
- M52 thread for attachment optics or polariser
- LED lighting (IVI) integrated into the optics at an almost vertical angle for tripods K EDU/LAB/MAT or controller K LED
- 2x eyepiece 16x/14 Br. foc
- RJ12 spiral cable
- Attachment 3 2.0x FWD 43 mm
- 2 x eyecups
Tripod K (without lighting)
- Tripod base W190xD310xH35 mm
- Working surface W160xD195 mm
- Interface d=84 mm for tables
- Column 250 mm with drive and handle, lifting range 145 mm
- Stemi holder d=76 mm, load capacity 5 kg, adjustable friction
- Thread 2x M8 for adaptation of accessories Also included:
- Black and white plastic plate D=84x5 mm
- dust cover
SCHOTT VisiLED Controller MC 1000 (incl. power supply) for one lighting unit, four segment modes, dimming, ESD socket, simple operation.
Schott VisiLED ring light S80-25 BF
The EasyLED series is an innovative lighting system specially developed for stereomicroscopy.
- Compatible with all VisiLED controllers.
- Øi = 66 mm
- Working distance 25-55 mm
- 80 white LEDs in 8 segments
- Max. light intensity 200 klx (at 30 mm working distance)
