ZEISS 355 Education
Easy to transport. Easy to install. Easy to use.
- Binocular tube
- Integrated near-vertical lighting
- LED spot for oblique and grazing light with strong shadows
- Flat transmitted light base for bright field and dark field illumination
- ECO mode for easy switching to standby mode and back
- Type C input and output
- Optional: Polarisation equipment for spot and transmitted light

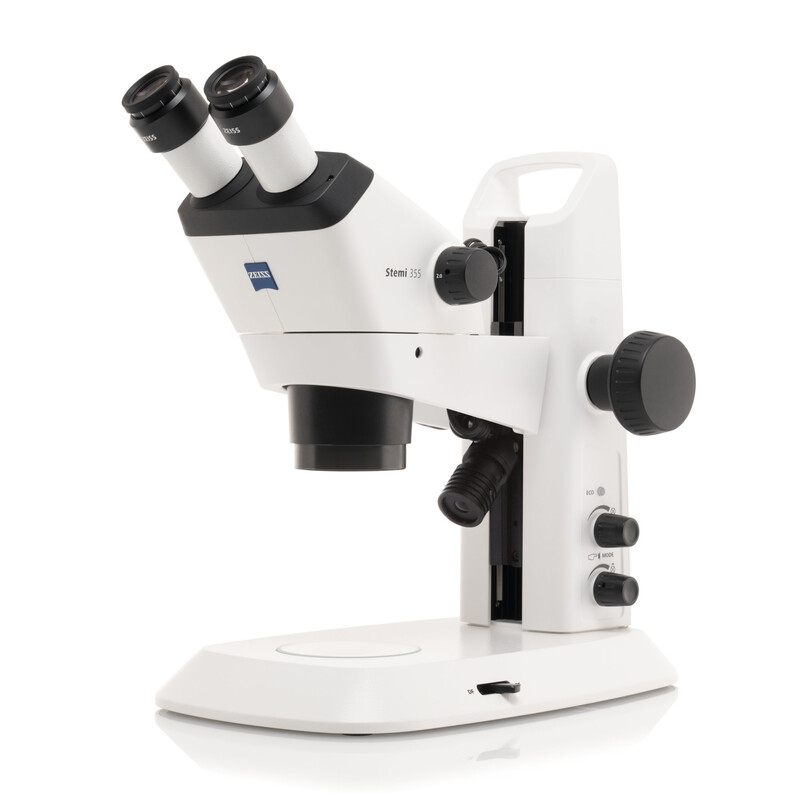

Microscope set Stemi 355 Edu (item no.: 435066-9520-000)
Stemi 355 microscope body
- Greenough system
- Manual, double-sided zoom 5.5:1 (0.72x...4.0x)
- Fixed zoom detent positions 0.72x-1x-2x-3x-4x
- Free working distance 110 mm
- Viewing angle 45° with adjustable eye relief 55...75 mm
- 30 mm eyepiece mount with maximum field of view 23 mm
- Mount D=76 mm for Stemi carrier/carrier S
- Interface D=66 mm for lights
- M52 thread for attachment optics or polariser
- Near-vertical integrated LED lighting (IVI) for tripods & mounts C EDU/LAB/MAT, L LED tripod, C controller
- Also included: 10x/23 Br. foc. eyepieces, RJ12 spiral cable
Tripod C EDU
- Stand base D 331 x W 204 x H 35 mm
- Working surface D 209 x W 160 mm
- Interfaces d=84 mm for tables and d=46 mm for DL polariser
- Column 303 mm with drive and handle, stroke range 145 mm
- Stemi mount d=76 mm, load capacity 7 kg, adjustable friction -
- 2x sockets for IVI and C LED light - Separate AL/DL controls for on/off/dimming
- Switch to ECO mode
- 2x USB-C ports for power input and output -
- Integrated LED transmitted light bright field/dark field, switchable
- Built-in power supply 12V DC 24W/100...240V AC/50...60Hz
- Also included: glass plate and plastic plate b/w D=84x5 mm, dust cover
Spot light C LED
- Single spot for bright field and dark field reflected light illumination
- M24x0.5 thread for polariser
- Height-adjustable, tiltable, zoomable
- For tripods & mounts C EDU/LAB/MAT and tripod LLED
Eyepiece cups (item no.: 444802-9000-000)
- Foldable eyecup with light protection
- to minimise disruptive light incidence -
- collapsible, can be used with glasses
