Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > ZEISS > Stemi 305 > ZEISS Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x
Product no.: 48719

Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

$ 1,810.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Stemi 305...

Stemi 305

Your all-in-one instrument. With integrated lighting and documentation.

Stemi 305 is your compact Greenough stereo microscope with 5:1 zoom for biology education, laboratories and industrial production environments. See your samples as they are: three-dimensional and with sharp contrasts, without sample preparation. Benefit from an easy-to-use microscope that includes everything: long-life LED lighting for reflected and transmitted light, and extensive documentation options. Choose between the conventional phototube for access to all ZEISS microscope cameras and the integrated 1.2 megapixel WiFi camera, which allows you to connect multiple microscopes and share your images via WiFi.

More about the Stemi 305 microscope series...

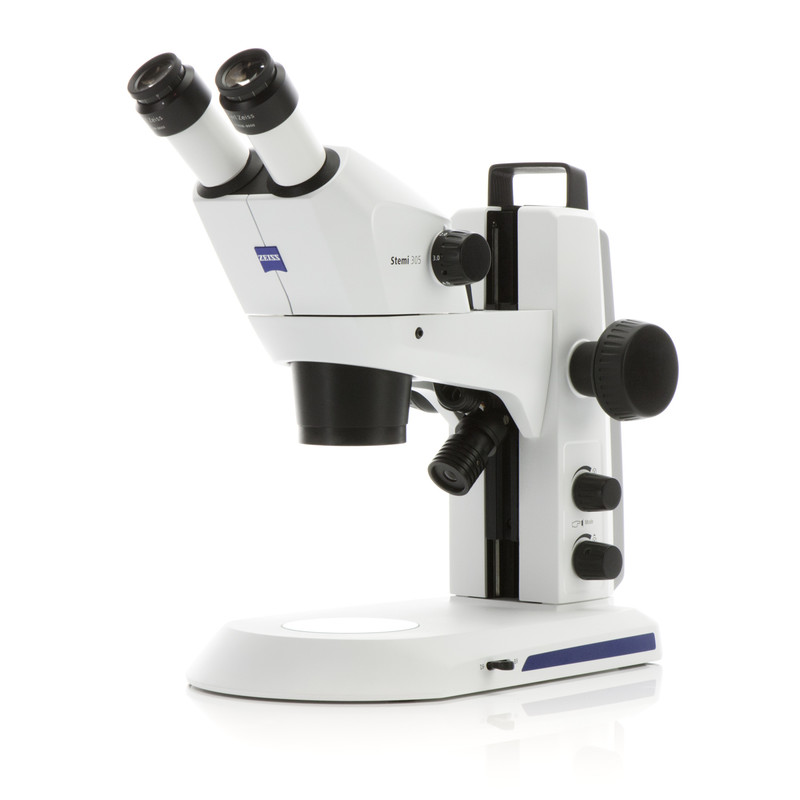

Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

ZEISS item number: 435063-9010-100

Specification:

Highlights

  • Binocular tube
  • Integrated vertical illumination
  • Flat light transmission base for bright field and dark field illumination
  • Optional: Polarisation accessory for spot and transmitted light
  • For a digital classroom environment, Stemi 305 cam with tripod K EDU and Spot K Led is your best choice.

Stemi 305 EDU microscope body

  • Greenough system with 11° stereo angle
  • Manual, double-sided zoom 5:1 (0.8x...4.0x)
  • Fixed zoom lock positions 0.8x-1x-2x-3x-4x
  • Free working distance without attachment system 110 mm
  • Viewing angle 45° with adjustable eye relief 55 to 75 mm
  • Eyepiece mount 30 mm with maximum field of view 23 mm
  • Mounting D=76 mm for Stemi carrier/carrier S
  • Interface D=66 mm for lights
  • M52 thread for attachment optics or polariser
  • LED lighting (IVI) integrated into the optics at an almost vertical angle for tripods K EDU/LAB/MAT or controller K LED
  • 2x eyepieces 10x23 Br. foc.
  • RJ12 spiral cable

Tripod K EDU

  • Stand base W190xD310xH35 mm
  • Working surface W160xD195 mm
  • Interfaces d=84 mm for tables and d=45 mm for DL polariser
  • Column 250 mm with drive and handle, stroke range 145 mm
  • Stemi holder d=76 mm, load capacity 5 kg, adjustable friction
  • Integrated LED transmitted light bright field/dark field, switchable
  • 2x socket for IVI and K LED light
  • Separate AL/DL controls for on/off/dimming
  • Built-in power supply unit 12V DC 24W/100...240V AC/50...60Hz
  • Glass plate D=84x5mm
  • Country-specific power cord EURO C7
  • dust cover

Spot Illuminator K LED

  • Single spot for brightfield and darkfield epi-illumination
  • Thread M24x0.5 for polarizer
  • Height adjustable, inclinable, zoomable
  • For stands K EDU/LAB/MAT or stand M LED

Specifications

Optics


Eyepiece
10x/23mm
Optical system
Greenough

Capacity


Optical zoom
08x-1x-2x-3x-4x
Type of build
binocular

Mechanics


Viewing posture (°)
45° angled eyepiece

General


Series
Stemi 305

Field of application


Medicine
yes
Hobby
-
Education
yes
Biology
yes

Area of application


University
yes
Marine Biology
yes

Miscellaneous


supplier product number
435063-9010-100

Product safety

Manufacturer: Carl Zeiss Microscopy Deutschland GmbH, Carl-Zeiss-Strasse 22, 73447 Oberkochen, DE, https://www.micro-shop.zeiss.com
Responsible person: Carl Zeiss Microscopy Deutschland GmbH, Carl-Zeiss-Strasse 22, 73447 Oberkochen, DE, [email protected]

Recommended accessories

Microscopy (1)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

ZEISS Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

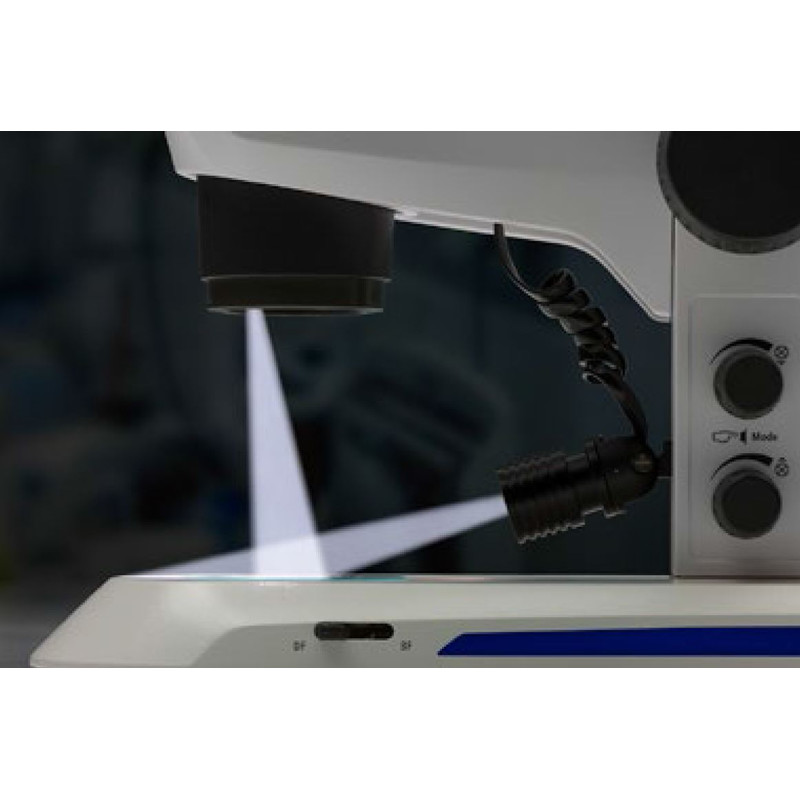

The press of a button switches between vertical and oblique illumination or mixed lighting and regulates the light intensity.

ZEISS Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

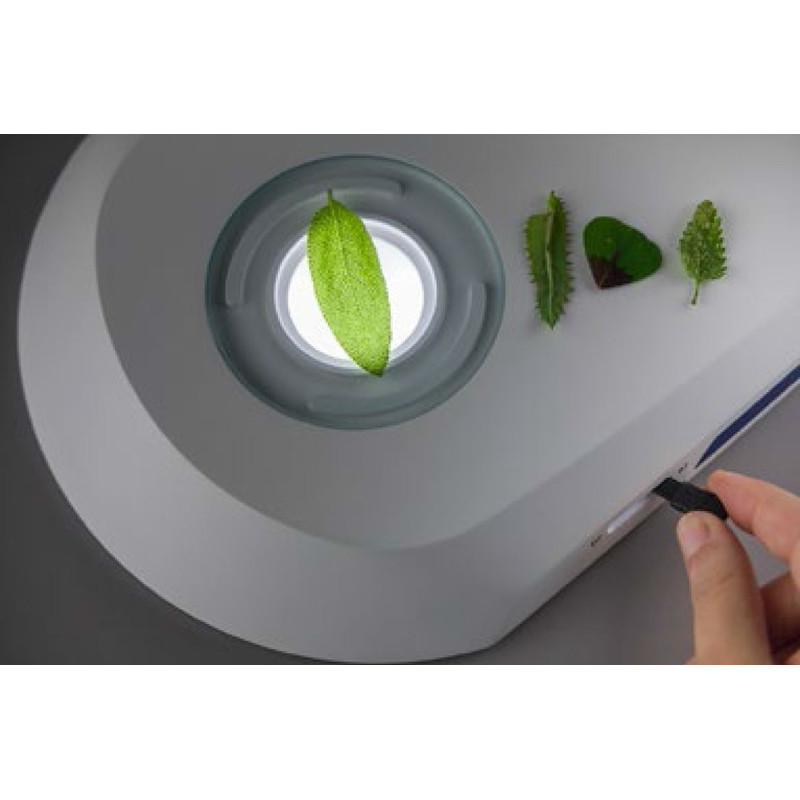

Use the flat transmitted lighting unit to show high contrast with coloured, transparent samples using bright-field or dark-field illumination. Use the polarizer/analyzer to observe, for example, double-refracting crystals or frozen stresses in glass or plastic.

ZEISS Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

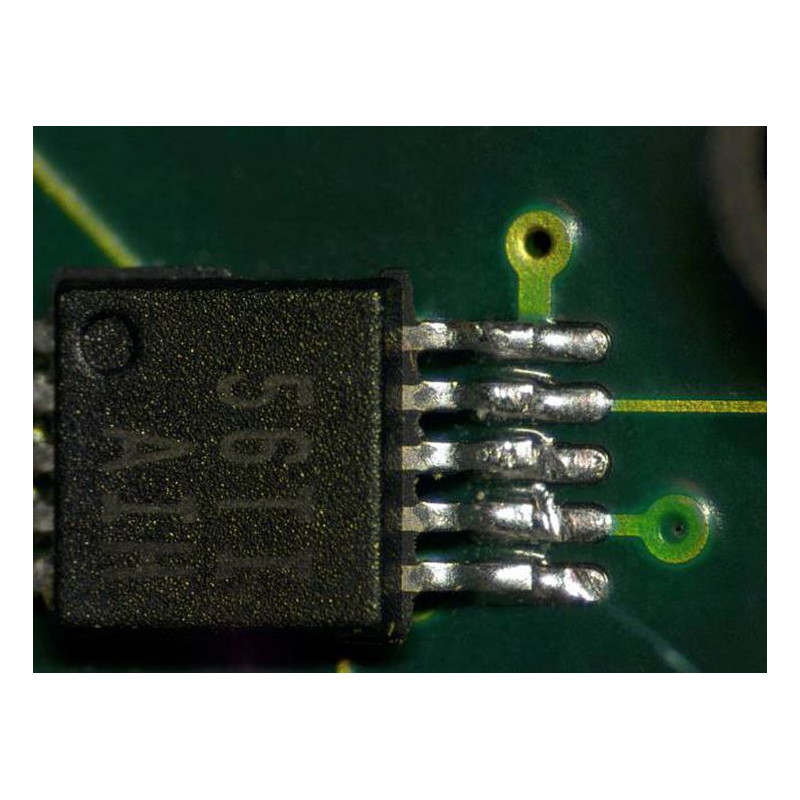

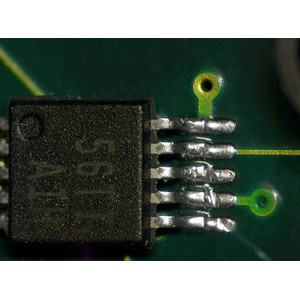

Damaged soldered contact, quarter circle ring lighting, 3.5X zoom, 0.75X front optics

ZEISS Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

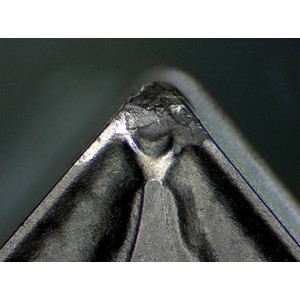

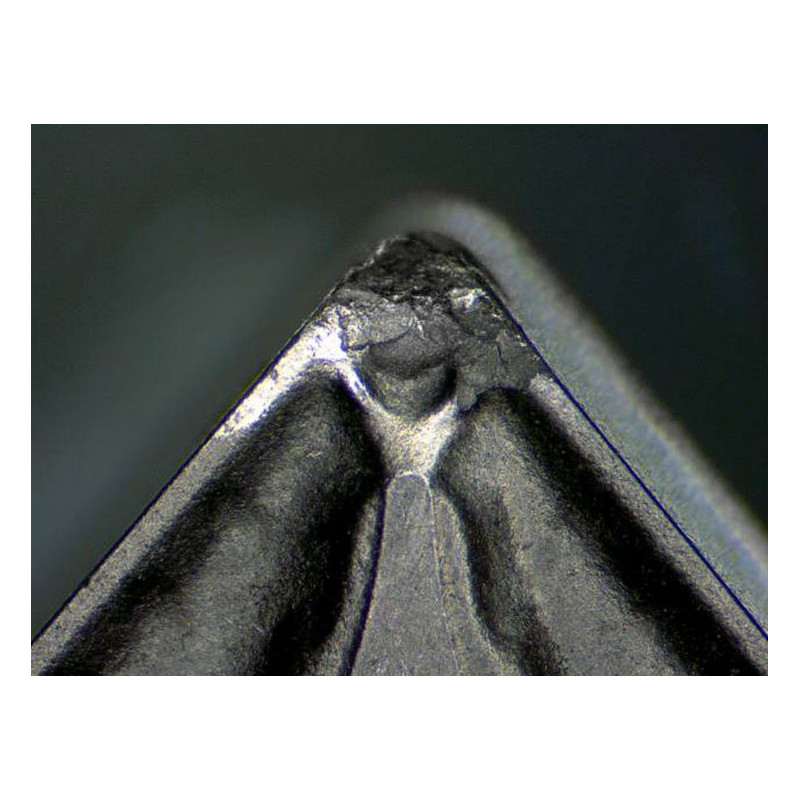

Indexable insert; full circle ring light, 0.8X zoom

ZEISS Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

Chrysopidae wing; Transmitted light and darkfield

ZEISS Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

Aphid

ZEISS Stereo zoom microscope Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x

Aphid, LED-Spot K, oblique light, 3.0X zoom
