Astronomy > Telescope accessories > Astrophotography > Optical accessories > Teleconverter > APM > APM Teleconverter Coma-correcting telecentric Barlow 1.5x 2"
Product no.: 59296

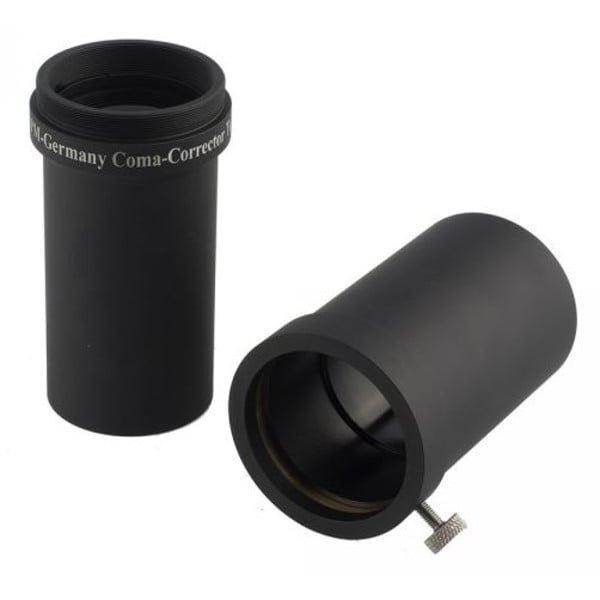

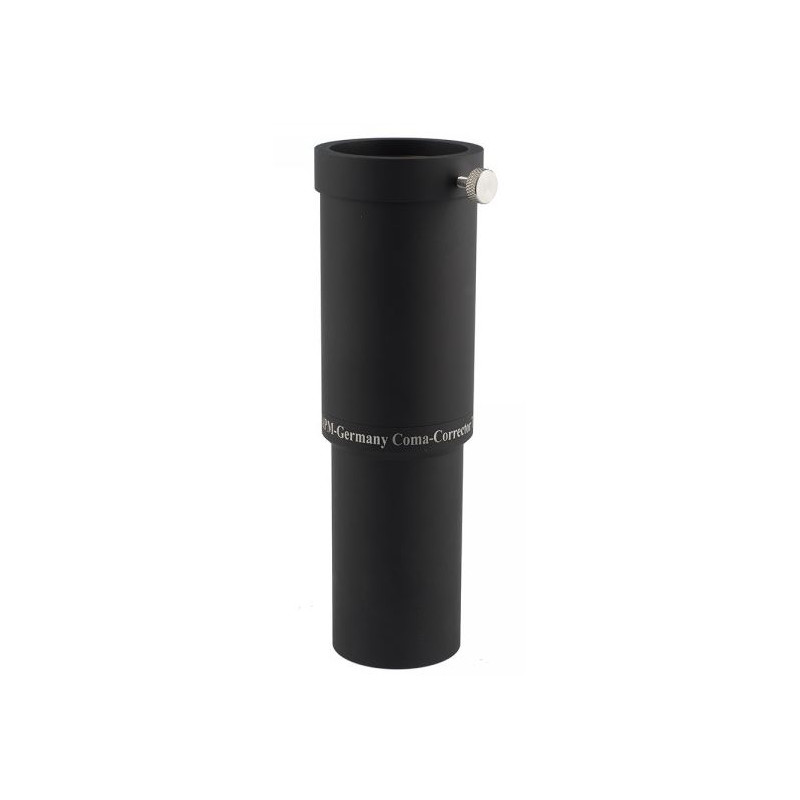

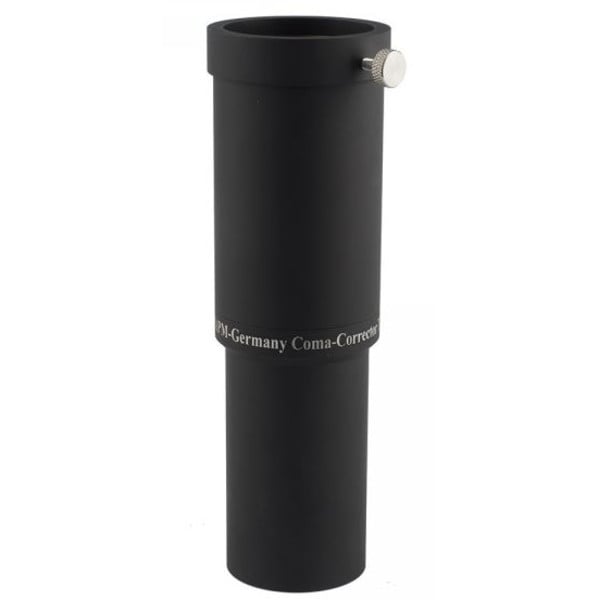

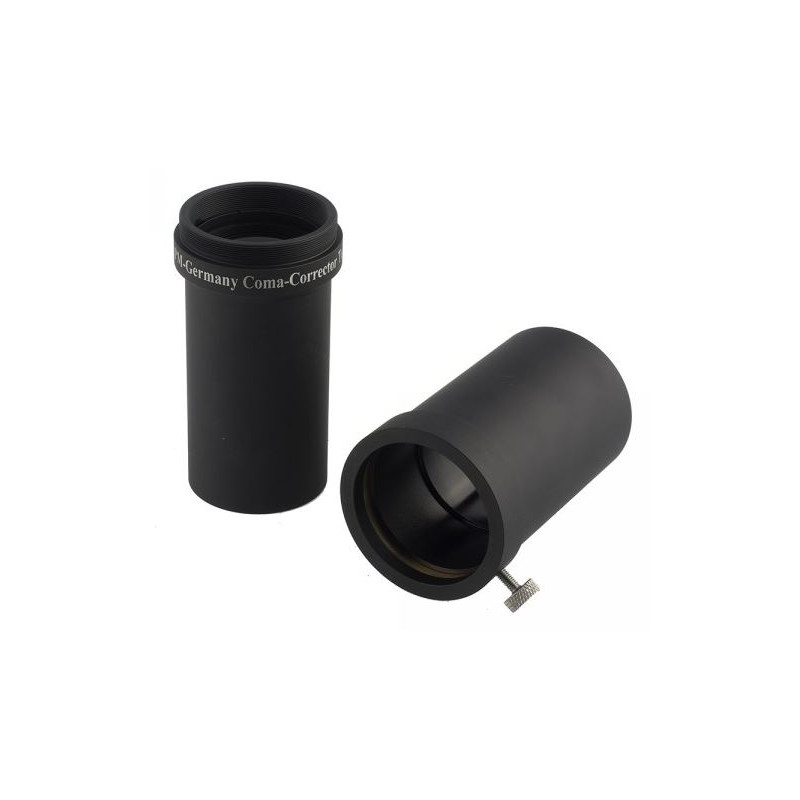

Teleconverter Coma-correcting telecentric Barlow 1.5x 2"

$ 570.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Some time ago, APM Telescopes introduced the coma-correcting 2.7x Barlow lens designed by Gerd Düring. This has proved very popular.

Our customers wanted a second version in a 2-inch design with a smaller magnification factor. APM Telescopes took this to heart and had the renowned physicist and optical designer Philipp Keller calculate a 1.5x Barlow.

All of today's knowledge has been incorporated into this new design in order to optimise it. The telecentric design prevents the need to adjust each eyepiece to the correct distance; simply insert the eyepiece into the 2-inch plug-in sleeve and you automatically have the optimum distance.

The design was again calculated with a large back focus so that it can be used as an optical glass path corrector with coma-correcting effect on the binocular attachment.

The sufficient back focus allows the use of off-axis guiders + filter wheel + CCD for photography with a full-frame sensor.

  • Connection thread: M54 x 0.75 external thread and M48 x 0.75 internal thread on the eyepiece/CCD side

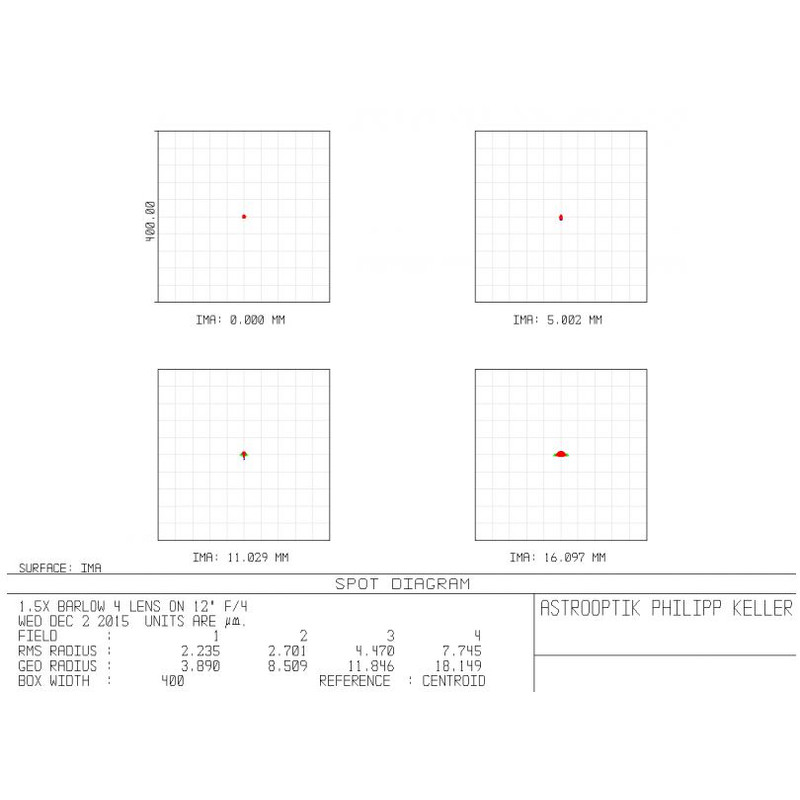

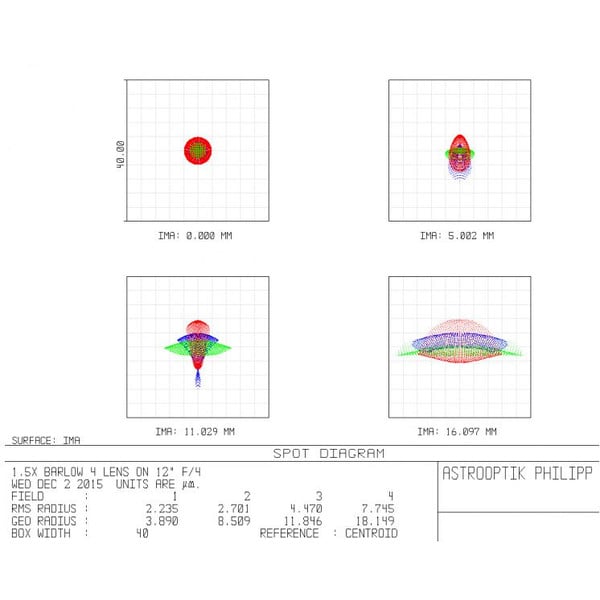

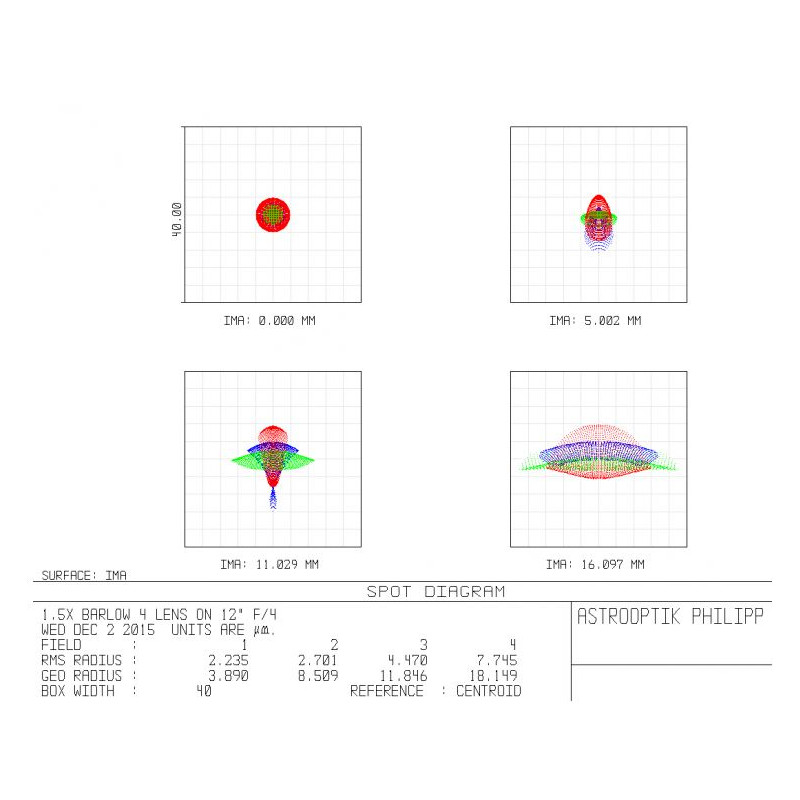

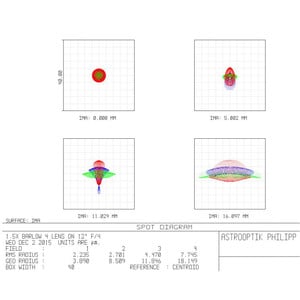

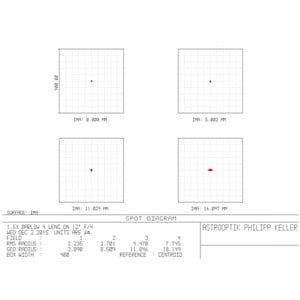

  • Fully corrected field: 44 mm

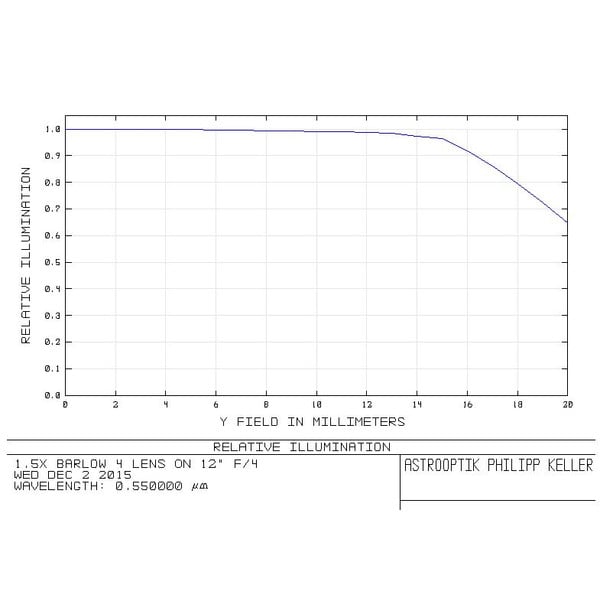

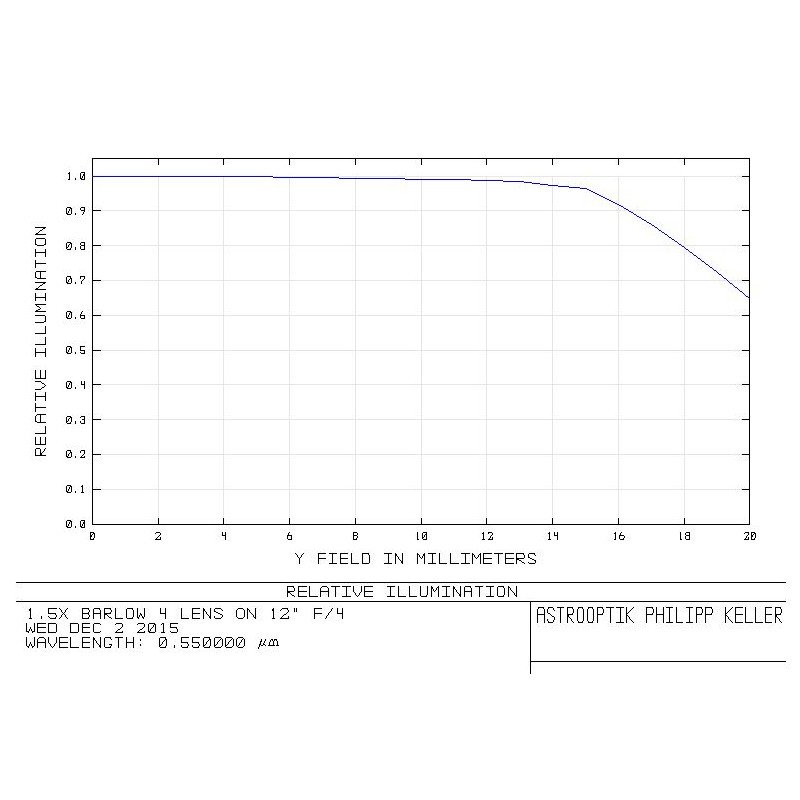

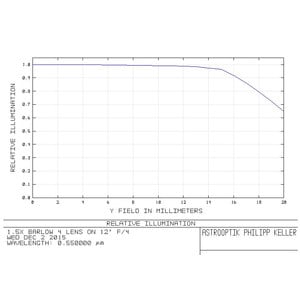

  • Fully illuminated field: 30 mm

Specifications

Capacity


Connection (to the telescope)
2"
Number of lenses
4
Field stop (mm)
30
Backfocus (mm)
105
Extension of focal length
1,5
Connector (at camera end)
M54
Connector (other end)
M48

Special features


Filter thread
yes

General


Type
Teleconverter
Type of build
tele-extender

Product safety

Manufacturer: APM Telescopes - Markus Ludes, Quierschieder Weg 38, 66280 Sulzbach, DE, www.apm-telescopes.de
