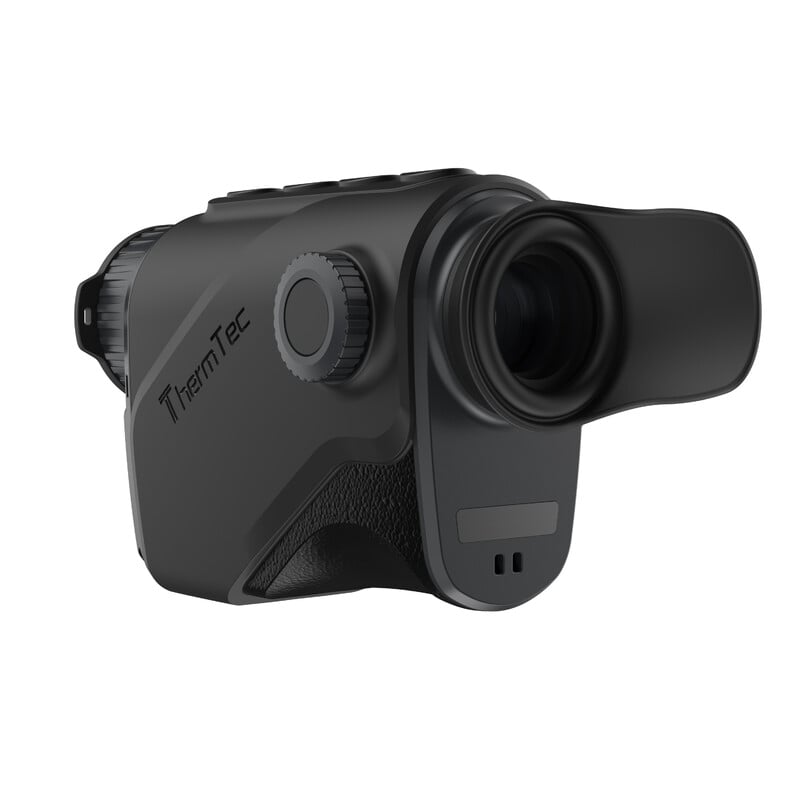

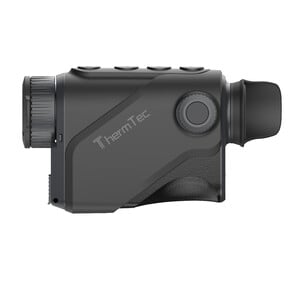

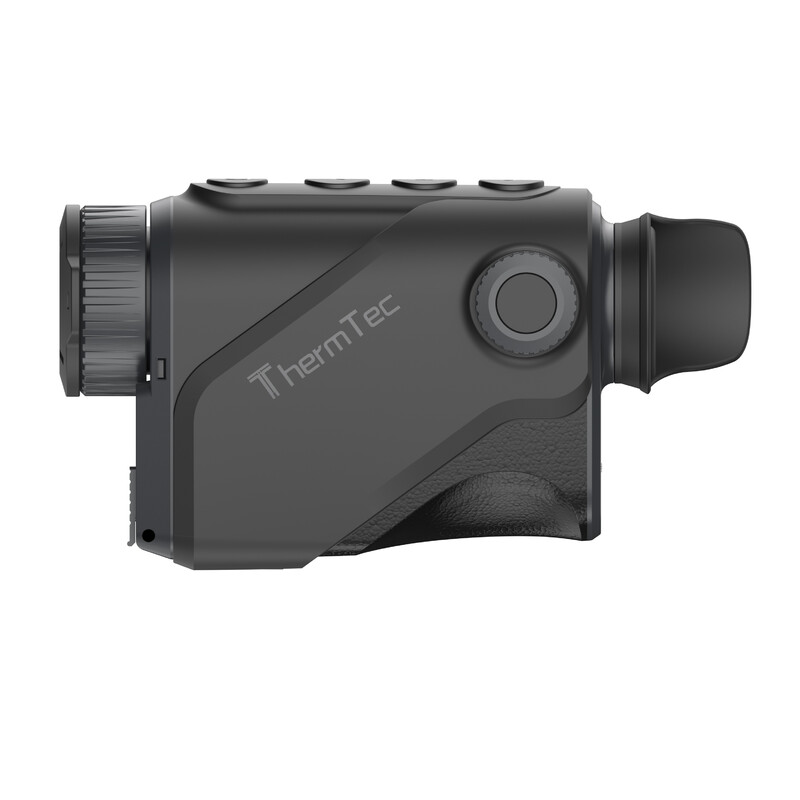

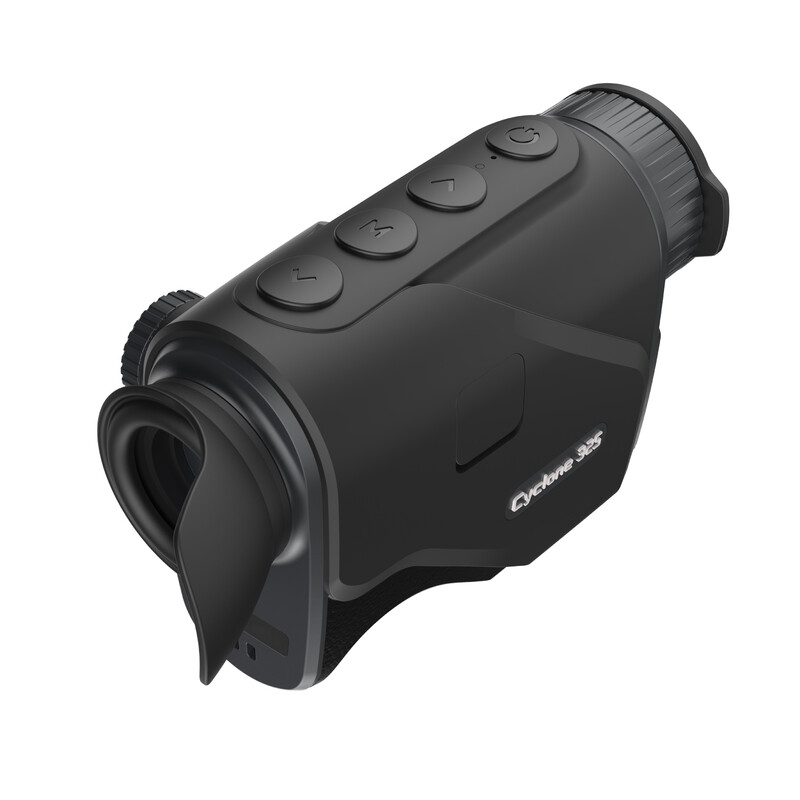

ThermTec Cyclone 325 - Pocket-sized thermal imaging device with a NETD value of <20 mK and weighing only 260 g
Advantages over a comparable model:
- Highly sensitive NETD detector < 20 mK@300k System performance
- Absolutely lightweight at only 260 g
- Pocket-sized quality for every purpose
- Replaceable battery system with standard 18650 battery and an impressive operating time of up to 10 hours!
- 0.39-inch AMOLED display with a resolution of 1024 x 768 pixels
- AI rangefinders – based on the deep learning algorithm
- The display backlight can be set to 3 colours (grey, blue and purple)
- Extensive image settings! In addition to three scene modes, ThermTec instruments can be adjusted in 10 steps for sharpness, anti-noise, brightness and contrast
- 6 colour palettes, including an eye-friendly green mode – any colour palette you don't need can be deactivated in the quick menu!
- Playback function – stored data can be conveniently played back via the camera

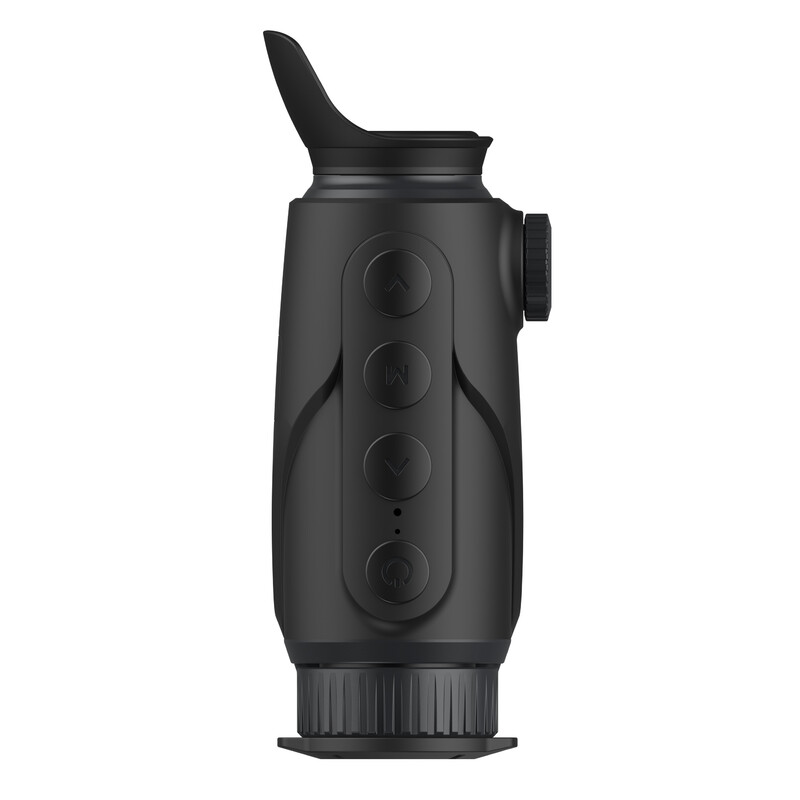

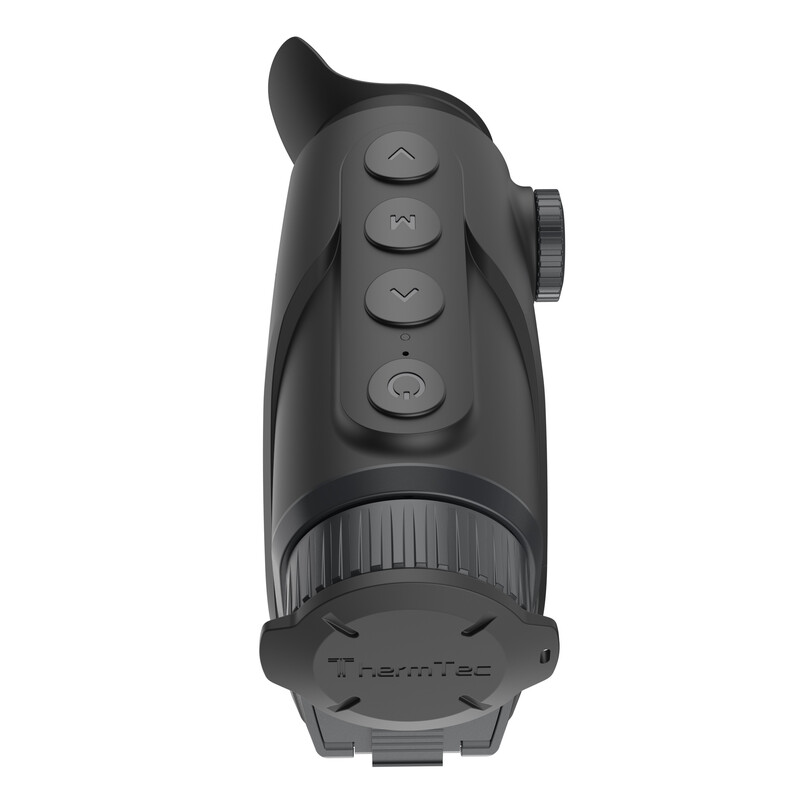

- Simple controls and operation thanks to intuitive button layout

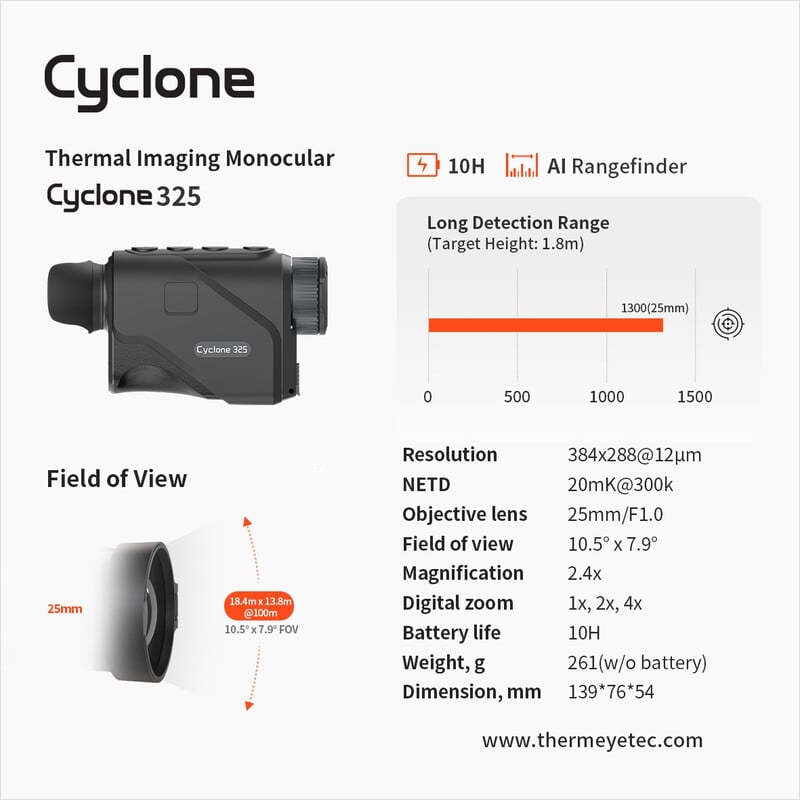

- Microbolometer resolution 384 x 288 pixels, with pixel pitch 12 µm
- AMOLED display with high resolution 1024 x 768 pixels
- 25 mm lens focal length and F1.0 aperture with a field of view width of 18.4 m (@ 100 m)
- Detection range 1300 m / recognition range 430 m / response range 140 m (deer)
- Ideal for forest and field hunting
- Functions such as AI rangefinders, picture-in-picture, hot spot marking
- Image and video recording on internal 32 GB memory

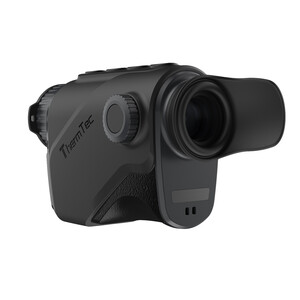

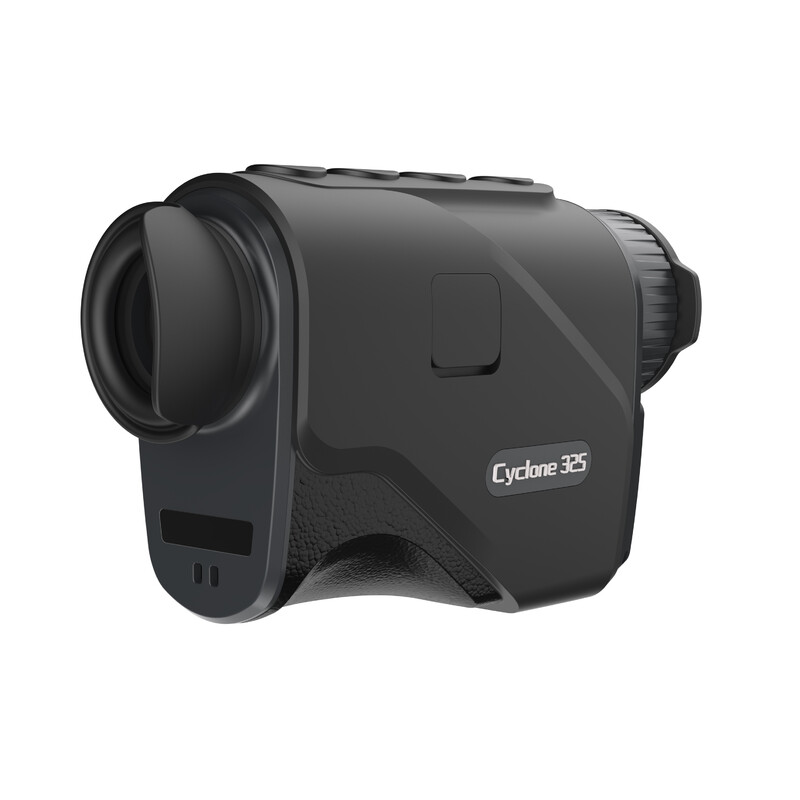

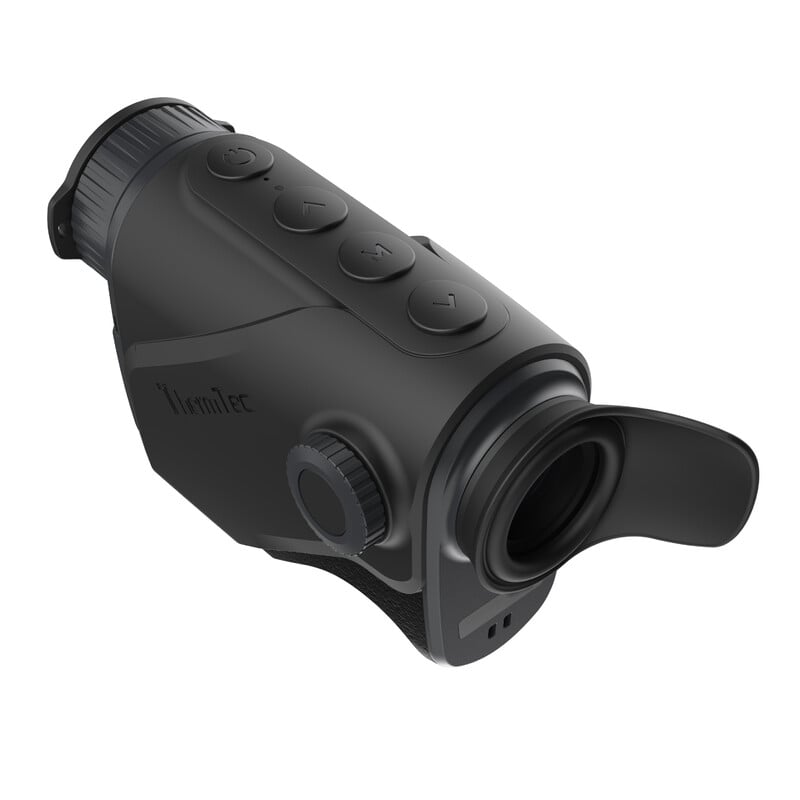

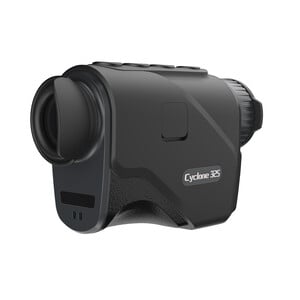

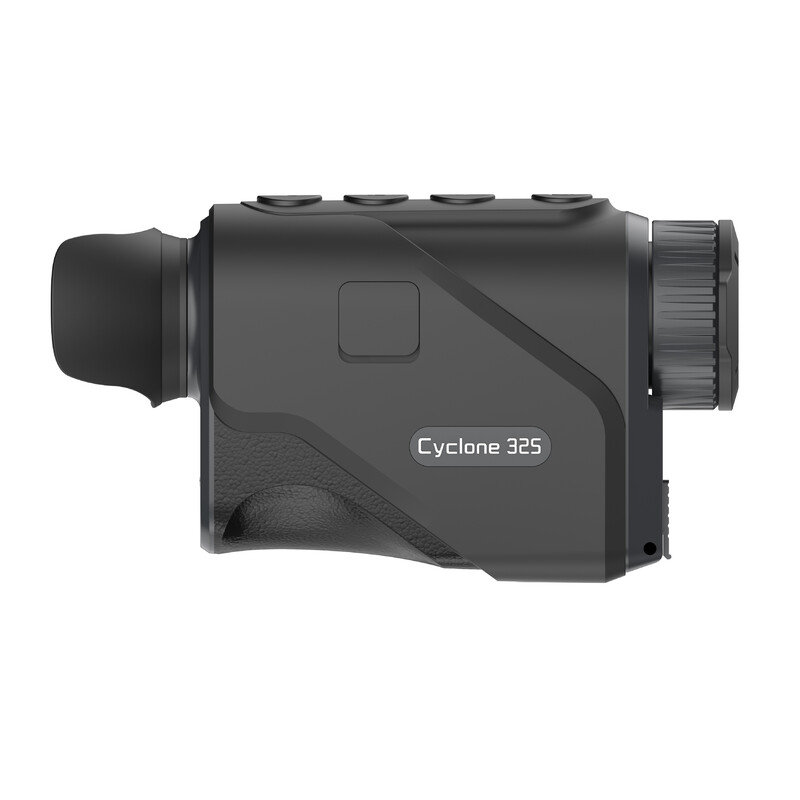

The new Cyclone is a pocket-sized thermal imaging handheld device.
This handheld device impresses not only with its compact size, but also with its flyweight of just 260 g. The instrument features the new, power-saving 12 µm VOX sensor. This allows game to be detected at distances of up to 1300 m and recognised at distances of over 430 m. In addition, the new Cyclone series has a battery replacement system that is powered by the popular 18650 battery. Thanks to the second battery included in the scope of delivery, an operating time of up to 20 hours is generated. The hotspot connection allows the user to control and display the device in the app (via a Wi-Fi connection between the thermal imaging device and a smartphone or tablet). This allows you to share the live image or images/videos recorded with the instrument with other users or friends in real time.
Highly sensitive sensor of the latest generation with a system performance NETD < 20 mK
The new Cyclone series has a new highly sensitive sensor and adapted electronic nodes, achieving a system performance NETD value of less than 20 mK. This includes higher thermal sensitivity and higher-contrast object images, ensuring better detail and image reproduction even in high humidity, fog or rain. With a low NETD value of < 20 mK, even the smallest temperature differences are resolved. This is particularly helpful when the temperature differences between game and the surrounding area are significantly lower or to maintain image quality at higher humidity levels.
Extensive image settings
To better meet the different requirements of users for the visual experience, the new Cyclone series offers sensor brightness, contrast, sharpness and anti-image noise in 10 levels each, display brightness in 5 levels and three display backlight colours (grey, blue and purple).
6 colour palettes - any colour palette you don't need can be disabled in the quick menu. Users can have 2, 3, 4, 5 or 6 colour palettes in the quick menu, so they don't have to scroll through all the colour palettes they don't need! In addition, the instrument has three different modes: object mode, background mode and target outline mode.
AI object recognition, AI rangefinders & notification
AI rangefinders – based on the deep learning algorithm – can automatically identify up to 6 animals and people and display the estimated distance directly during operation. AI notification via app. You are notified immediately when an object enters the camera's field of view, receiving a message on your device and a notification with the estimated distance and whether it is a human or an animal. You can also set whether this notification should be accompanied by an acoustic signal, vibration or silently.
AMOLED display with 1024x768px
AMOLED microdisplays are high-resolution, miniaturised displays with typical pixel densities > 1200 dpi. The high pixel density cannot be perceived with the naked eye, so a magnifying lens is always required. Unlike modulating LCD or LCOS technologies, OLED microdisplays are self-illuminating, with contrast ratios of more than 10,000:1, and function reliably even at extremely low temperatures (-30 °C).
Replaceable battery system for greater flexibility and extended battery life of up to 10 hours per battery!
In terms of battery life, the new Cyclone series features a replaceable battery system that can be fully adapted to the needs of your users. It uses the popular 18650 battery, which you can quickly and easily charge or replace at any time. The scope of delivery includes two 18650 batteries and a charger, which allow the new Cyclone series to run for up to 20 hours in continuous operation.
An absolute lightweight at only 260 grams
The Cyclone is extremely compact and, at only 260 g, is one of the lightest handheld devices on the market. This makes it the perfect pocket-sized companion for any hunting trip.
