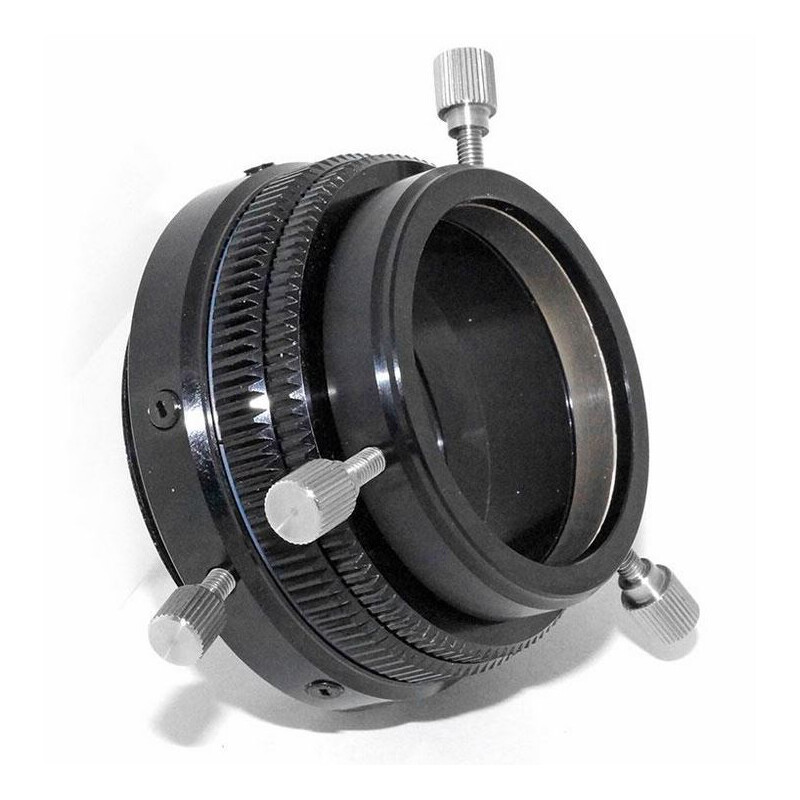

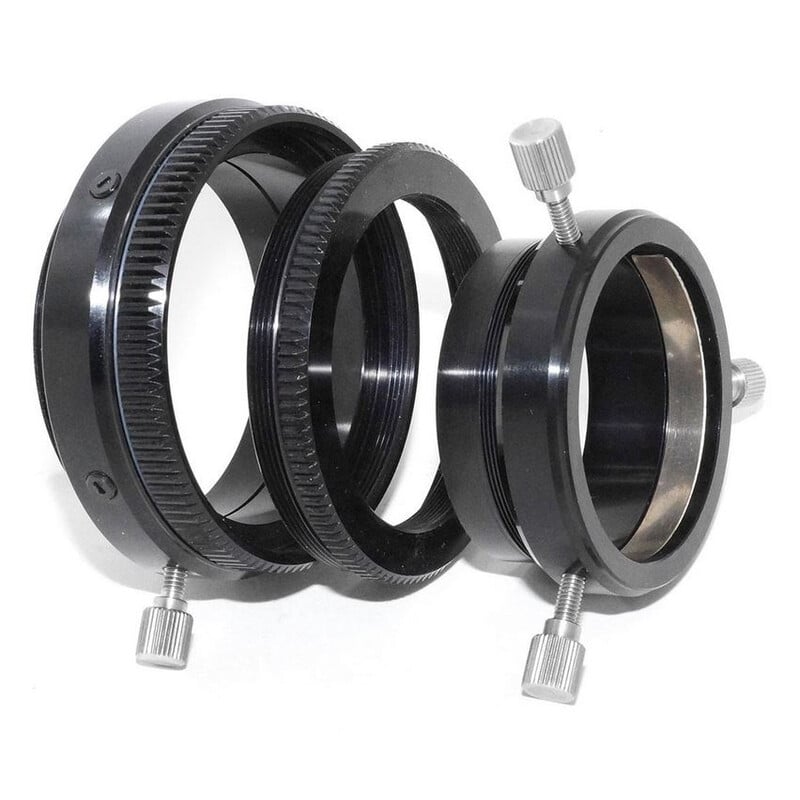

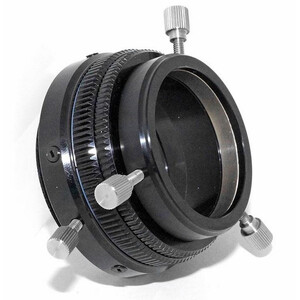

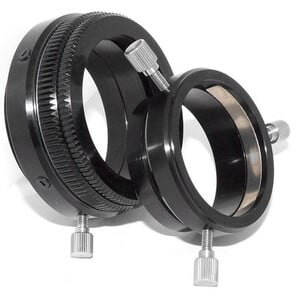

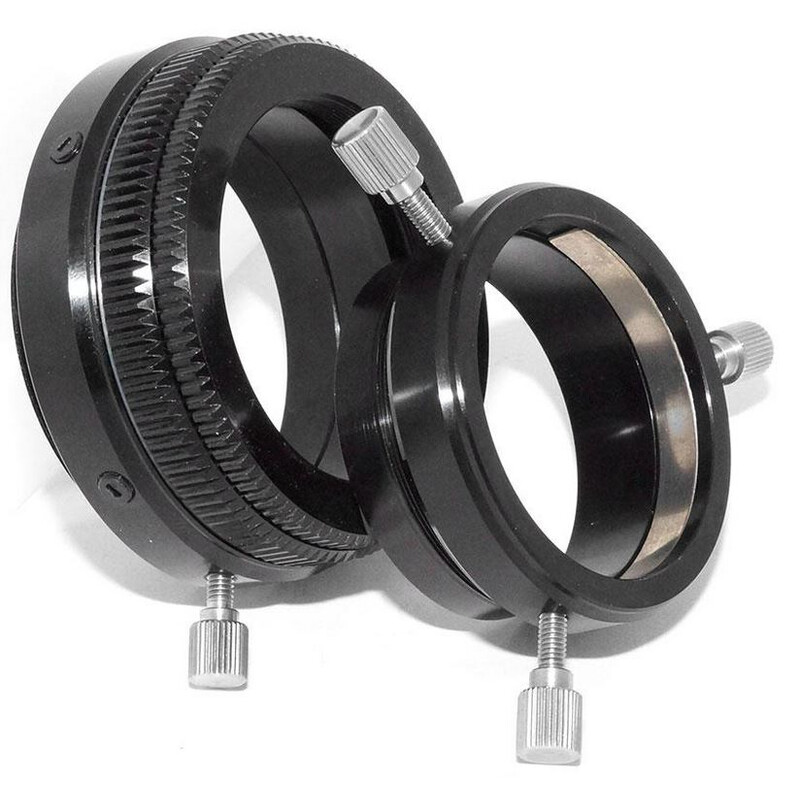

M63 to M68, M54 and 2" rotary adapter

The adaptor allows the screw connection of correctors and other photographic accessories to focusers with M63x1 internal thread. The 360° rotation with fixing screw allows easy adjustment of the image orientation.

Connections on the camera side:

• M68x1 internal thread (female)
• M54x0.75 internal thread (female)
• 2" plug-in sleeve (female)

This results in the following optical lengths:

• Overall length to M68 thread connection: 21 mm
• Overall length to M54 thread connection: 26 mm
• Overall length to 2" plug-in sleeve: 38.5 mm

The adaptor fits, among other things, 2.5" FTF25 focusers (FeatherTouch) from Starlight Instruments and TS Optics 2.5" Rack&Pinion focusers, which are used, among other things, on PhotoLine Apos.

TS Optics is a brand of Teleskop-Service.
