bScope Series
The well-equipped bScope microscopes are used in research at secondary schools, universities, small laboratories and for veterinary applications. In addition to an excellent ergonomic design, these robust and attractively priced microscopes are available in various configurations with HWF 10x/20 mm eyepieces and lenses for bright field and phase contrast. An ergonomic and flexible design ensures greater comfort and protects against rapid fatigue during long working sessions. The robust and compact size of the bScopes gives the user more space to work and ensures safe operation and easy storage.
Highlights of the bScope series
- Class I medical device
- Monocular, binocular, trinocular and digital models available
- For laboratory, research and school use
- Robust and attractively priced
- HWF 10x/20 mm eyepieces
- Inverted lens turret with slider for polarisation filter
- Available with E-plan, Plan IOS, E-plan IOS, E-plan Phase, E-plan Phase IOS or Plan Phase IOS lenses
- Equipped with APL (anti-bacterial protection layer)
- Microscope stage with integrated cross table without protruding rack
- 3 W NEOLED lighting with optional rechargeable batteries
- Cable storage system and integrated carrying handle

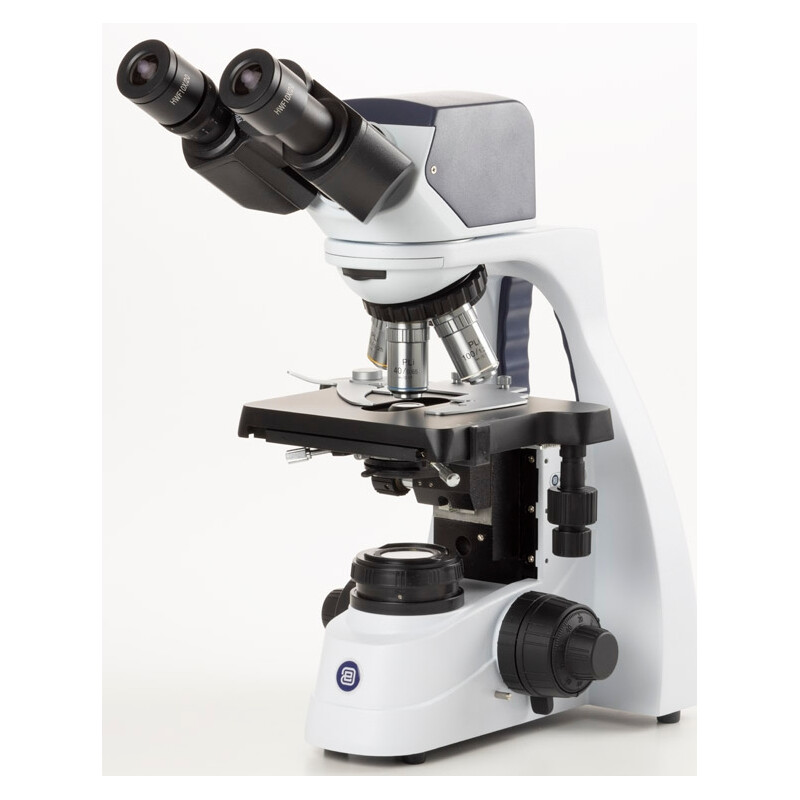

1157-Pli
Microscope for school, research and laboratory
• Viewing: Binocular
• Digital model (with camera)
• Eyepieces HWF 10x/20 mm
• 5-position objective turret with slot for polarisation filter
• Plan IOS achromatic lenses
• Microscope stage without protruding rack with integrated cross table
• Adjustable 3 W NeoLED™ Köhler lighting
• Ergonomic carrying handle
• CSS cable storage system
C A M E R A
The digital b-Scope microscopes are equipped with a 5.1 MP 1/2.5 inch CMOS USB2.0 camera, 24-bit colour depth, 7 frames per second (2592 x 1944 pixels) or 27 frames per second (1280 x 960 pixels). The dynamic range is 76 dB and the signal-to-noise ratio is 41 dB. Supplied with
ImageFocus Alpha software, USB 2.0 cable and 1 mm / 100-micrometre calibration slide.
SOFTWARE
The ImageFocus Alpha capture and analysis software allows you to save images in JPG, TIF, BMP or DICOM formats and videos in AVI format. Measurements and annotations can be made on live or captured images. Compatible with Windows
7, 8 and 10, 32- and 64-bit configurations. A Mac OS version is also available.
