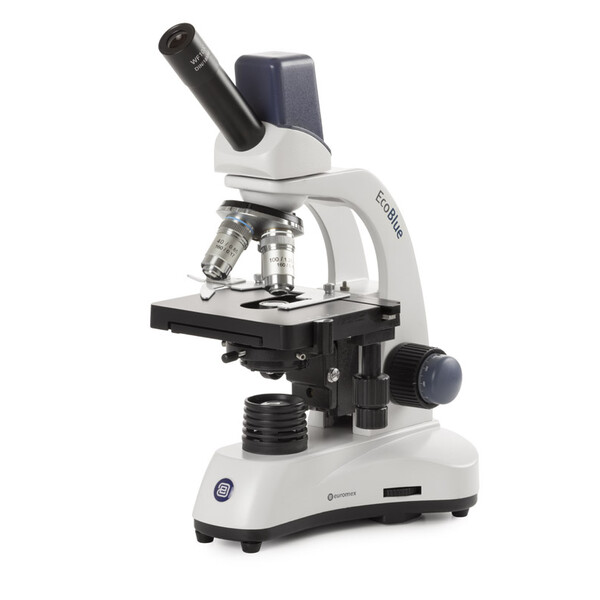

EC.1155 Euromex
The modern microscopes of the EcoBlue series are specially designed for educational purposes, with a focus on ergonomics and excellent value for money. These microscopes are supplied with secured eyepieces, achromatic lenses and an adjustable table lock to prevent damage to samples and lenses
Specifications
EYEPIECES
• WF 10x / 18 mm wide field eyepiece with pointer
• The eyepieces of the binocular and trinocular models are supplied without pointer
HEAD
• Monocular models with 45° inclined tubes
• Binocular and trinocular models with 30° inclined tubes
• The interpupillary distance is adjustable between 48° and 75° mm
• All binocular and trinocular models have a diopter adjustment of ± 5 diopters on the left tube
• All heads can be rotated 360°
• Models with integrated USB 2 camera are supplied with a 5.0 MP 1/2" CMOS sensor with a resolution of 2560 x 1920 pixels
• The EcoBlue can also be supplied with a discussion head
REVOLVER
• 4-position lens turret on ball bearings
• Models for polarization are supplied with a swing-out analyzer
45 MM PARFOCAL LENSES
• Achromatic lenses 4x / 0.10, 10x / 0.25, S40x / 0.65 and S100x/1.25
• The S40x, S60x lenses and S100x oil immersion lens are spring-loaded
• The HLED-S models for polarisation are equipped with semi-plan lenses
FOCUS ADJUSTMENT
• Coaxial coarse and fine adjustment, 200 divisions, 12.5 µm per division, 2.5 mm per revolution, total distance approx. 15 mm
• Supplied with an adjustable table lock to prevent damage to the sample and objective
TABLE
• Microscope stage 123 x 119 mm with two non-removable specimen clamps (EC.9500 optional 51 x 26 mm X-Y mechanical stage available)
• Microscope stage 123 x 128 mm with integrated 70 x 27 mm X-Y mechanical table
• Models for polarization are supplied with a 129 mm round table, 360° rotatable and 2 specimen clamps.
CONDENSER
• Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• Models for polarisation have a rack and pinion adjustment, all other models are helicoidally adjustable
LIGHTING
• Monocular models come with adjustable 1 W LED illumination with integrated power pack
• Binocular and trinocular models are supplied with an adjustable 1 W NeoLED™ illumination system for increased light output
• Models EC.1151, EC.1152, EC.1153, EC.1652 and EC.1653 are supplied with rechargeable batteries and an external 100-240 V battery charger/mains adapter
• Polarization models come with H-LED lighting for correct color reproduction (very similar to the halogen light spectrum). With integrated 100-240 V power supply, without batteries
ANTI-THEFT SLOT
There is a Kensington Security Slot on the back of the microscope to secure the instrument against theft.
Packaging
• With power cord or mains adapter charger, white filter, dust cover, spare fuse, operating instructions and 5 ml
• Immersion oil for models with an S100x lens
• EcoBlue models with external power adapter and X-Y stage (EC.1x5x) are supplied with three rechargeable AA batteries
• All packed in a polystyrene box
DIGITAL MODELS
CAMERA
• All EcoBlue digital microscopes are equipped with a 5.0 MP CMOS USB 2 camera
• Maximum resolution 2560 x 1920, 24-bit colour depth, up to 30 frames per second
• Supplied with ImageFocus Plus software, USB-2 cable and 1 mm/100 micrometer slide
• The camera is guaranteed for 2 years
SOFTWARE
• Supplied with ImageFocus Plus for capturing images and videos
• With the ImageFocus Plus software for capturing and analysing images, images can be saved in JPG, TIF or BMP format and videos in AVI format
• This software also enables comprehensive analysis, e.g. measurements on still and live images and annotations on captured images
• Images can be annotated and measurements can be taken on live or recorded images
• Compatible with Windows 7, 8, 10 and 11, 32-bit and 64-bit configurations
• A Mac OS Light version is also available for capturing images
• Updates can be downloaded from our website www.euromex.com
All lenses are anti-fungus treated and AR coated to ensure maximum light transmission
